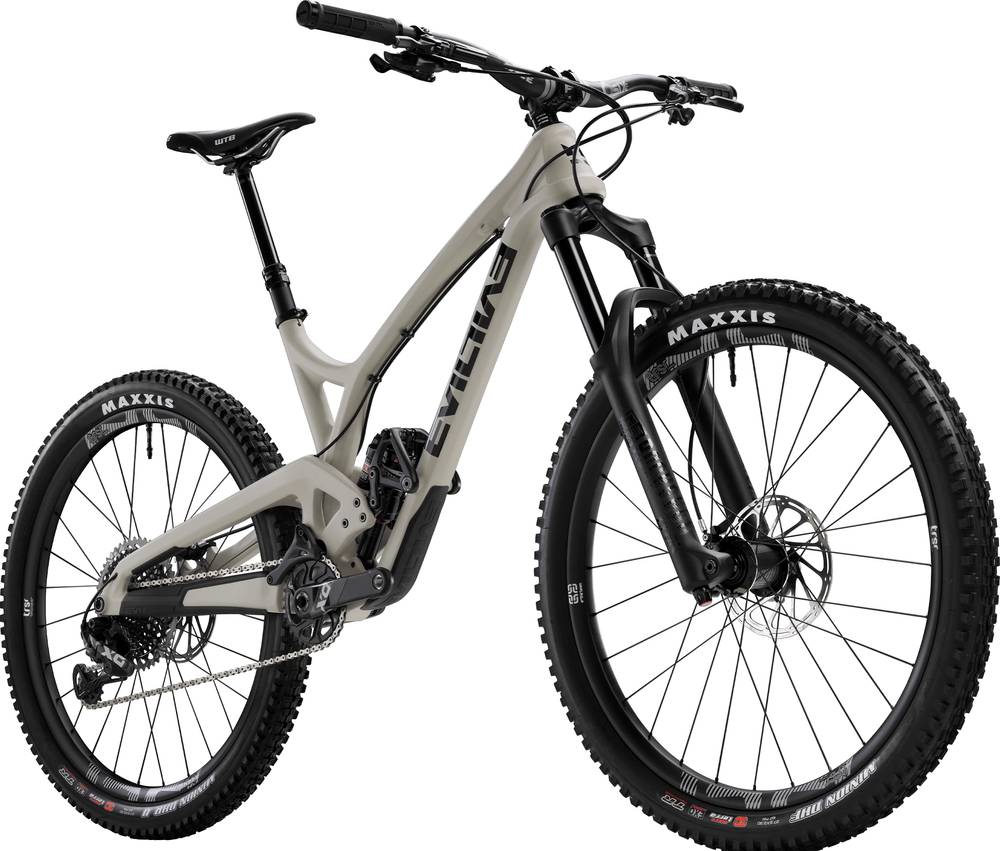

Evil Insurgent LB / Frame Only 2020
2020 Mountain
Estimate price |
1,320$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 151mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.38 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 596 mm | 609 mm | 621 mm | 634 mm |
| Reach | 423 mm | 440 mm | 458 mm | 475 mm |
| Top Tube Length | 605 mm | 626 mm | 647 mm | 668 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 114 mm | 127 mm | 141 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1162 mm | 1185 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 659 mm | 688 mm | 708 mm | 722 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Insurgent LB / Frame Only completes the Evil Insurgent model. There are 48 frames that carry this model name. Take a sneak peek at all Evil Insurgent frames models from 2020, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro frames
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 1320$. Doing a quick comparison, we notice that Insurgent LB / Frame Only price is 43.56% lower than the average cost of an Enduro frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
