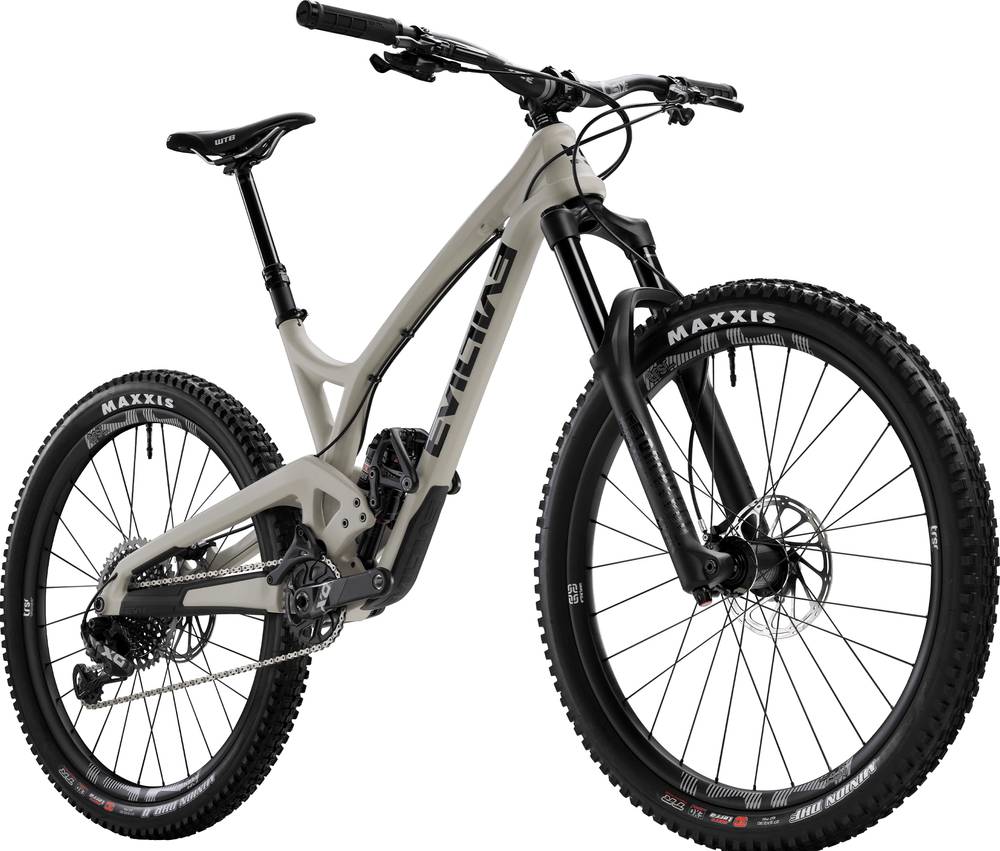

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 151mm -
Fork RockShox Lyrik Ultimate
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Suspension Fork
Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15x100
Rear Shock
Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano XT 12sp
Cassette
Shimano XT M8100-12, HYPERGLIDE+ ,10-12-14-16-18-21-24-28-33-39-45-51T
Crank
Shimano XT M8130, 32t, 170mm
Bottom Bracket
Shimano XT BB-MT800
Chain
Shimano XT M8100, w/Quick-Link
Wheels
Tires
Maxxis Minion DHF EXO TR, 27.5x2.5
Cockpit
Stem
Raceface Aeffect R 35, Length: 40mm
Handlebar
Raceface Chester 35, Rise: 35mm Width: 780mm
Grips
Evil Palmela Handerson lock-on
Headset
FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36?/45? Lower Bearing 40×51.8×8 36?/45?
Seat
Saddle
WTB Volt Pro
Seatpost
RockShox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.38 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 596 mm | 609 mm | 621 mm | 634 mm |
| Reach | 423 mm | 440 mm | 458 mm | 475 mm |
| Top Tube Length | 605 mm | 626 mm | 647 mm | 668 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 114 mm | 127 mm | 141 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1162 mm | 1185 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 659 mm | 688 mm | 708 mm | 722 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Insurgent LB / XT completes the Evil Insurgent model. Evil launched 48 bikes of this model so far. You can easily view all of the Evil Insurgent bikes models from 2020, here.
Model range prices
Evil Insurgent LB / GX Eagle 2020 is the cheapest bike model and costs 4399$. Evil Insurgent LB / X01 Eagle 2020 is the most expensive one and costs 5399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Evil Insurgent LB / XT bike has the Rockshox Monarch Plus RC3 Debonair model installed, and has a travel of 151mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Evil Insurgent LB / XT 2020, has a 27.5″ model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Insurgent LB / XT has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Evil model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
