Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 168mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB
Suspension Fork
Rockshox ZEB Ultimate 29, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12sp
Front Derailleur
Single Ring Only
Shift Levers
SRAM X01 Eagle, 12sp
Cassette
SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM X01 Eagle w/Powerlock
Wheels
Rims
168mm
Tires
Front: Maxxis Minion DHF EXO TR, 29x2.5, Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge Stem, Length: 35mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Works Components 1 Degree Angleset
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 785 mm | 806 mm | 832 mm | 857 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm |
| Stack | 628 mm | 637 mm | 649 mm | 659 mm |
| Reach | 450 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 619 mm | 640 mm | 661 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 104 mm | 114 mm | 127 mm | 139 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1222 mm | 1243 mm | 1269 mm | 1294 mm |
| Bottom Bracket Drop | 1 mm | 1 mm | 1 mm | 1 mm |
| Standover Height | 712 mm | 723 mm | 731 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

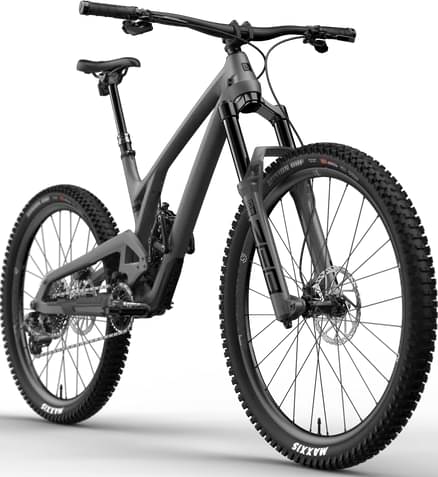

Insurgent / X01 I9 Hydra MX belongs to the Evil Insurgent model. Evil launched 48 bikes of this model so far. Take a sneak peek at all Evil Insurgent bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Evil Insurgent / X01 I9 Hydra MX 2022 bike is equipped with the RockShox ZEB Ultimate fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Super Deluxe Coil Ultimate rear shock model, which has a travel of 168mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Insurgent / X01 I9 Hydra MX model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
