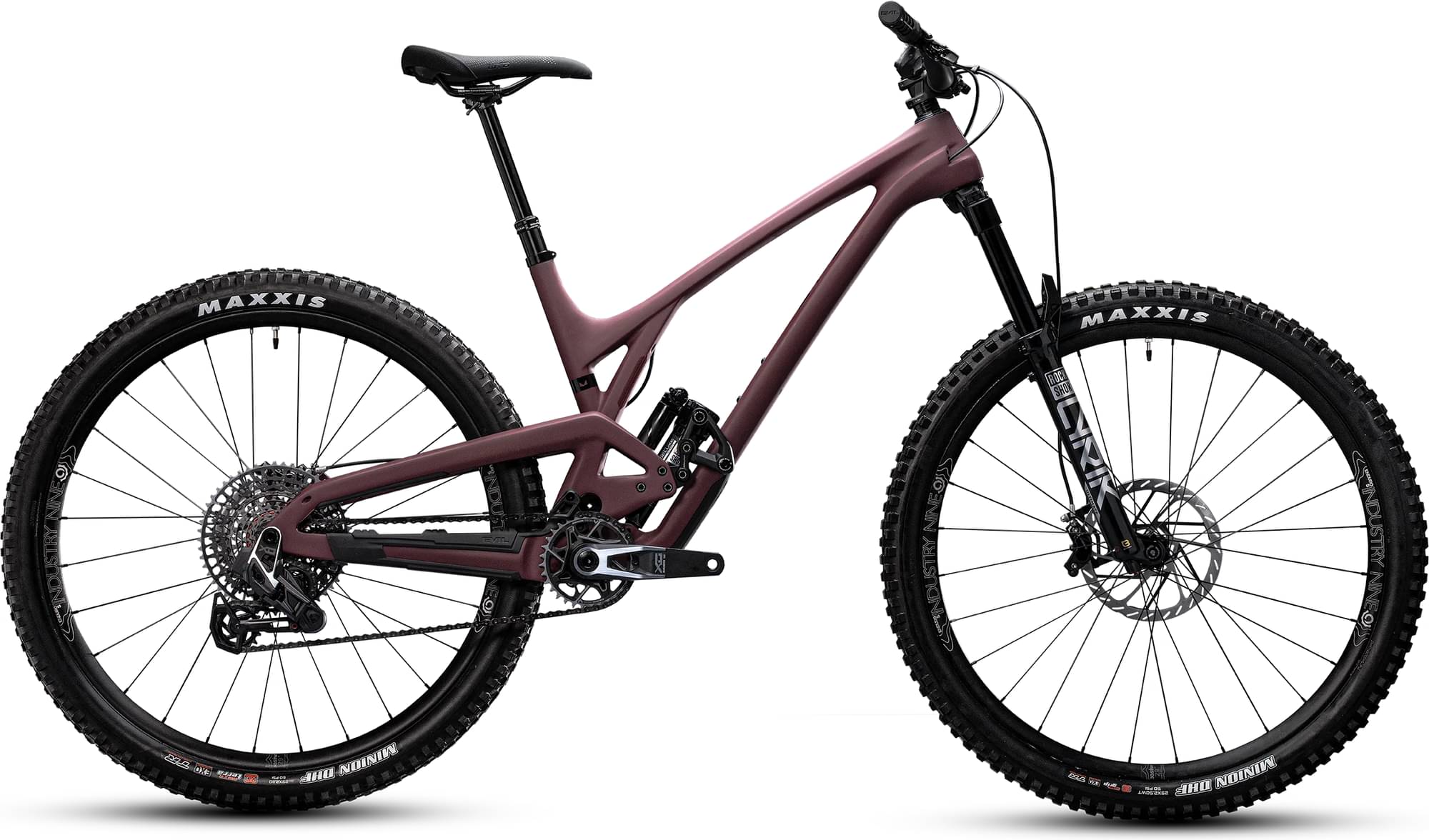

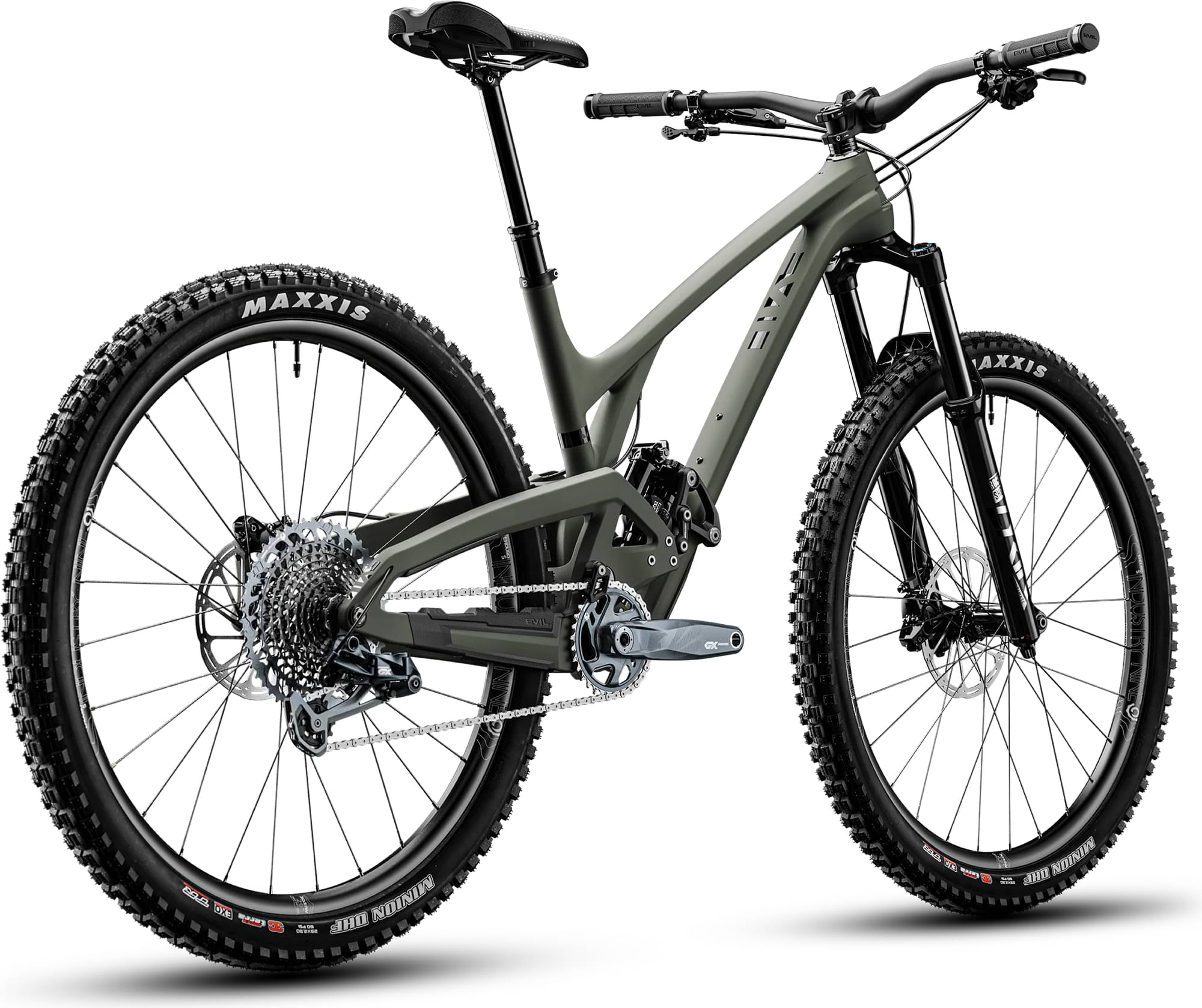

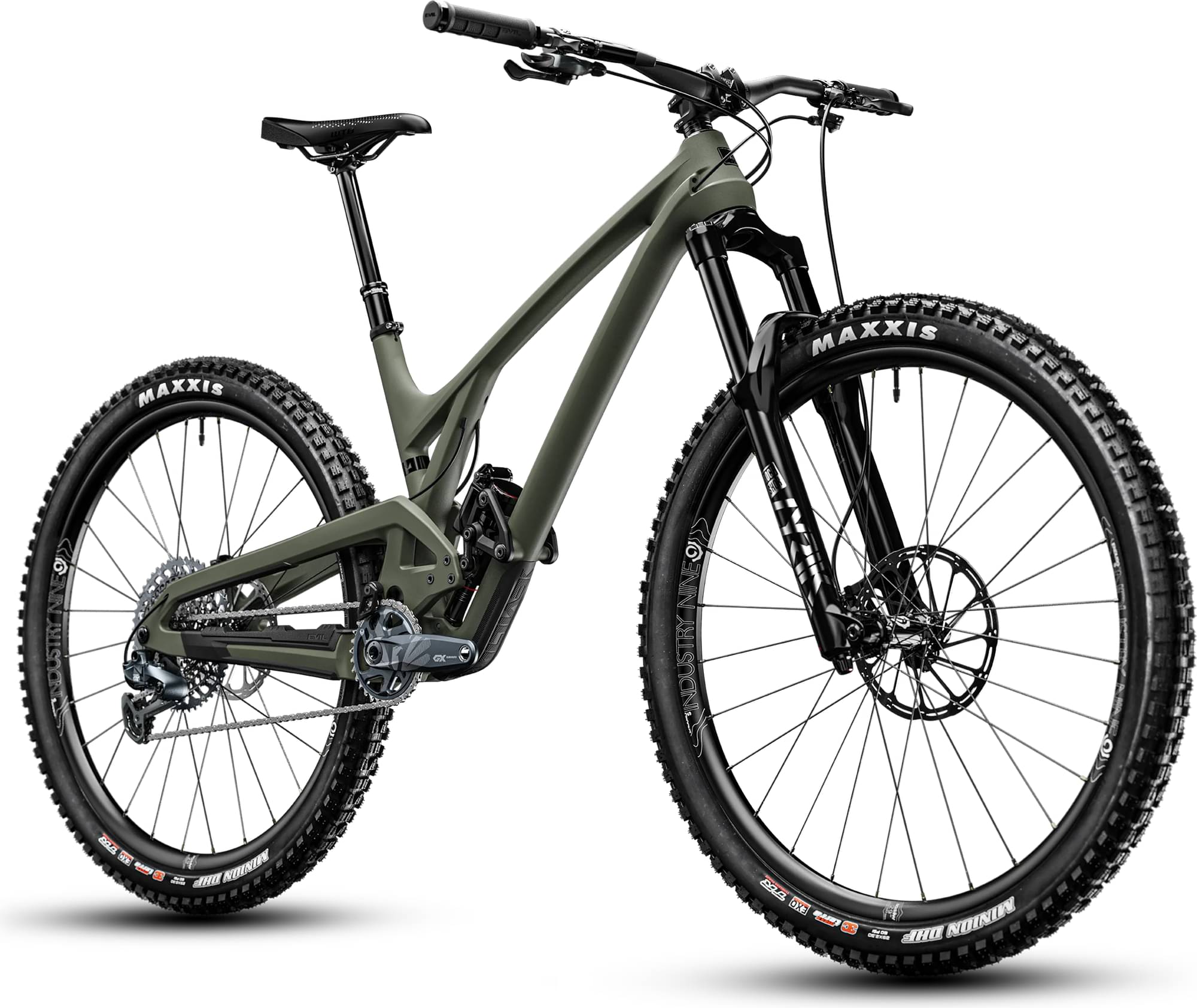

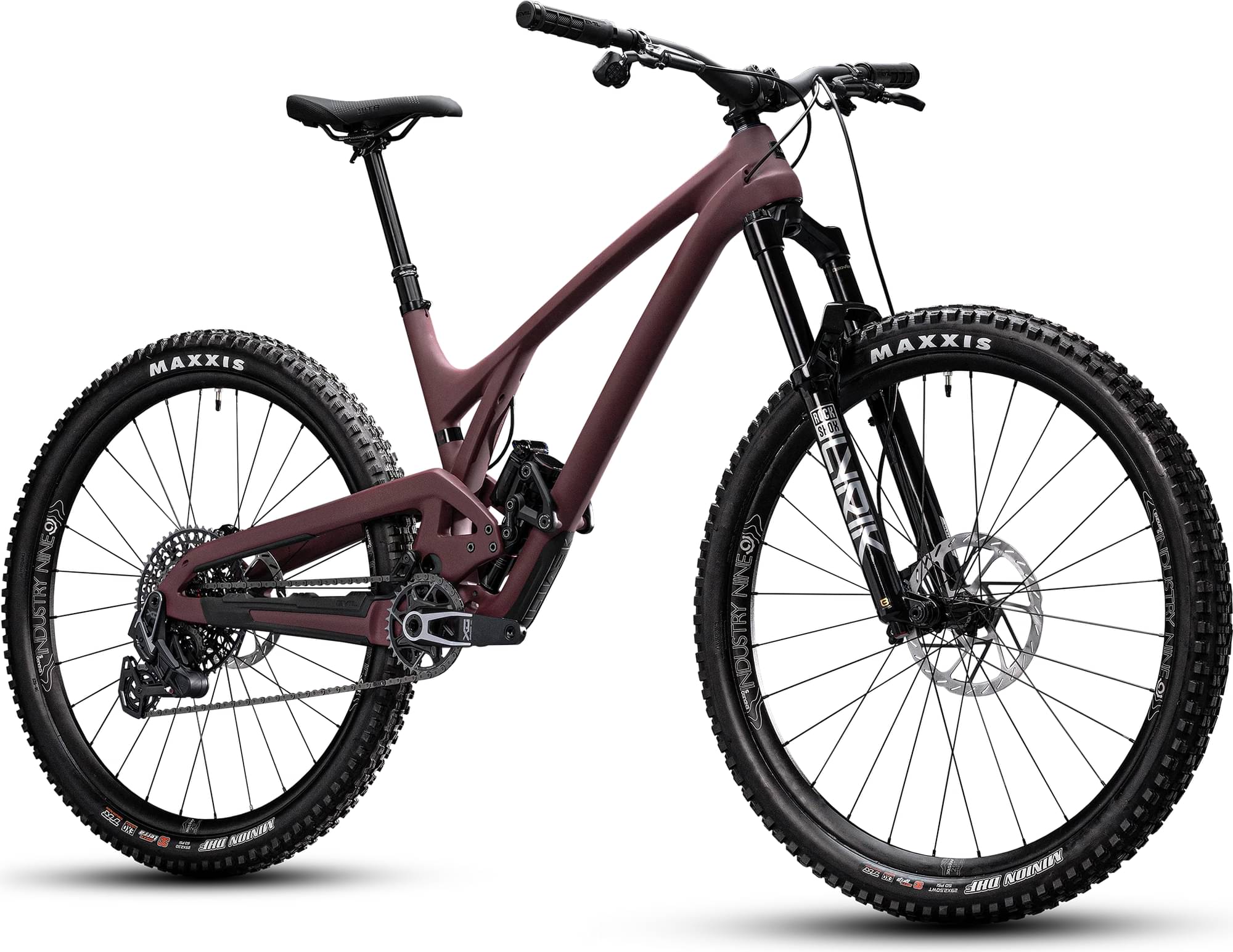

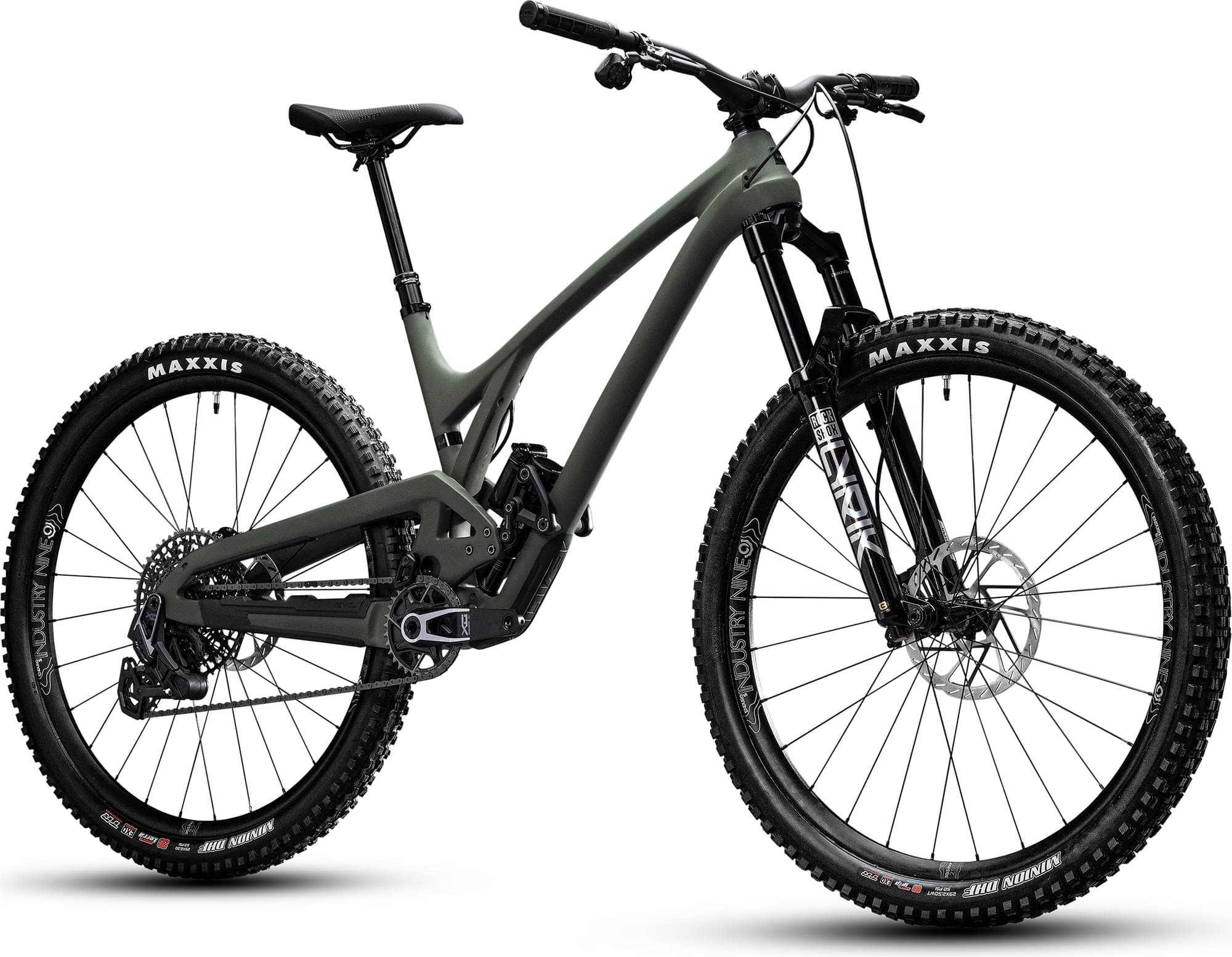

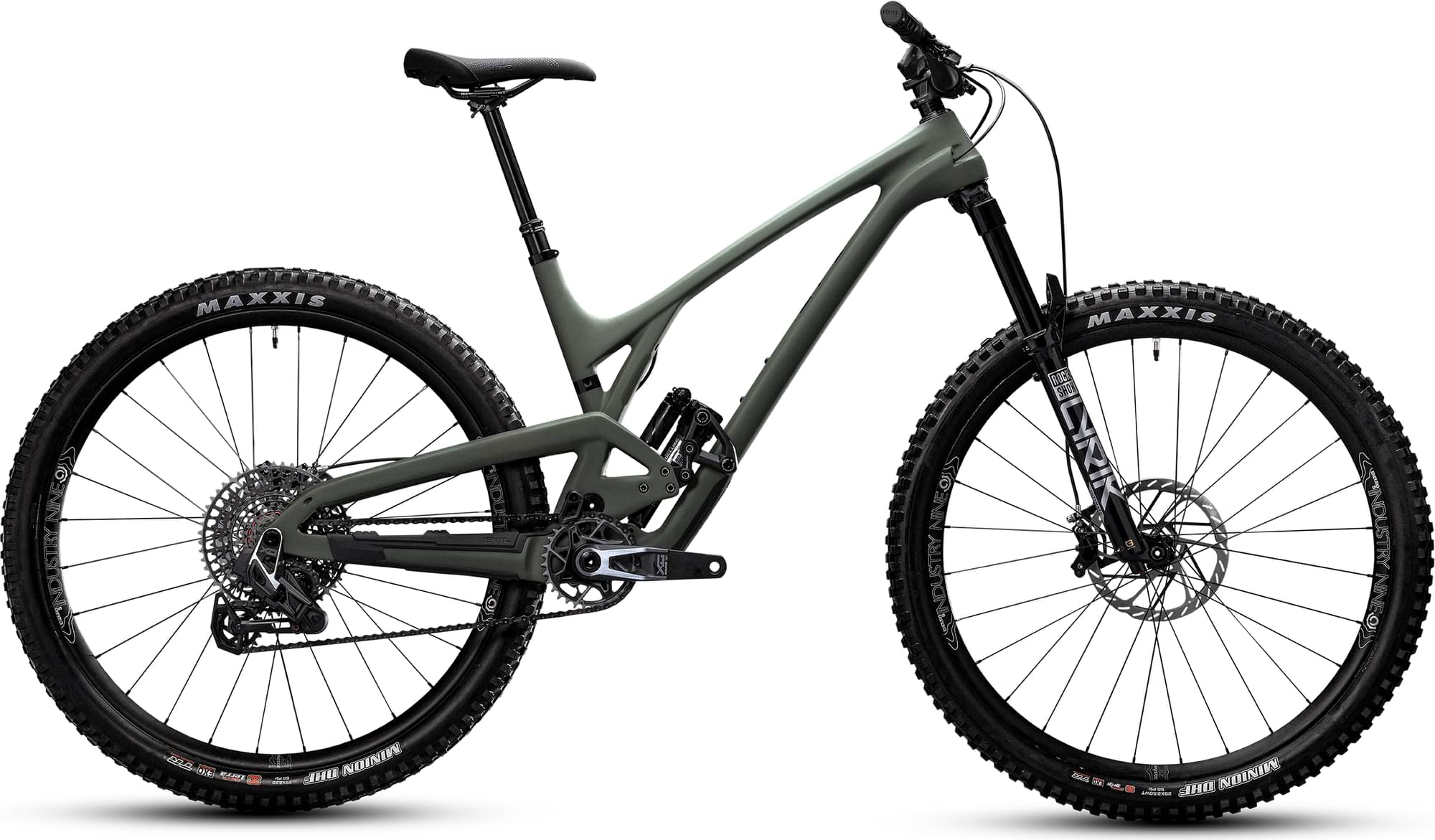

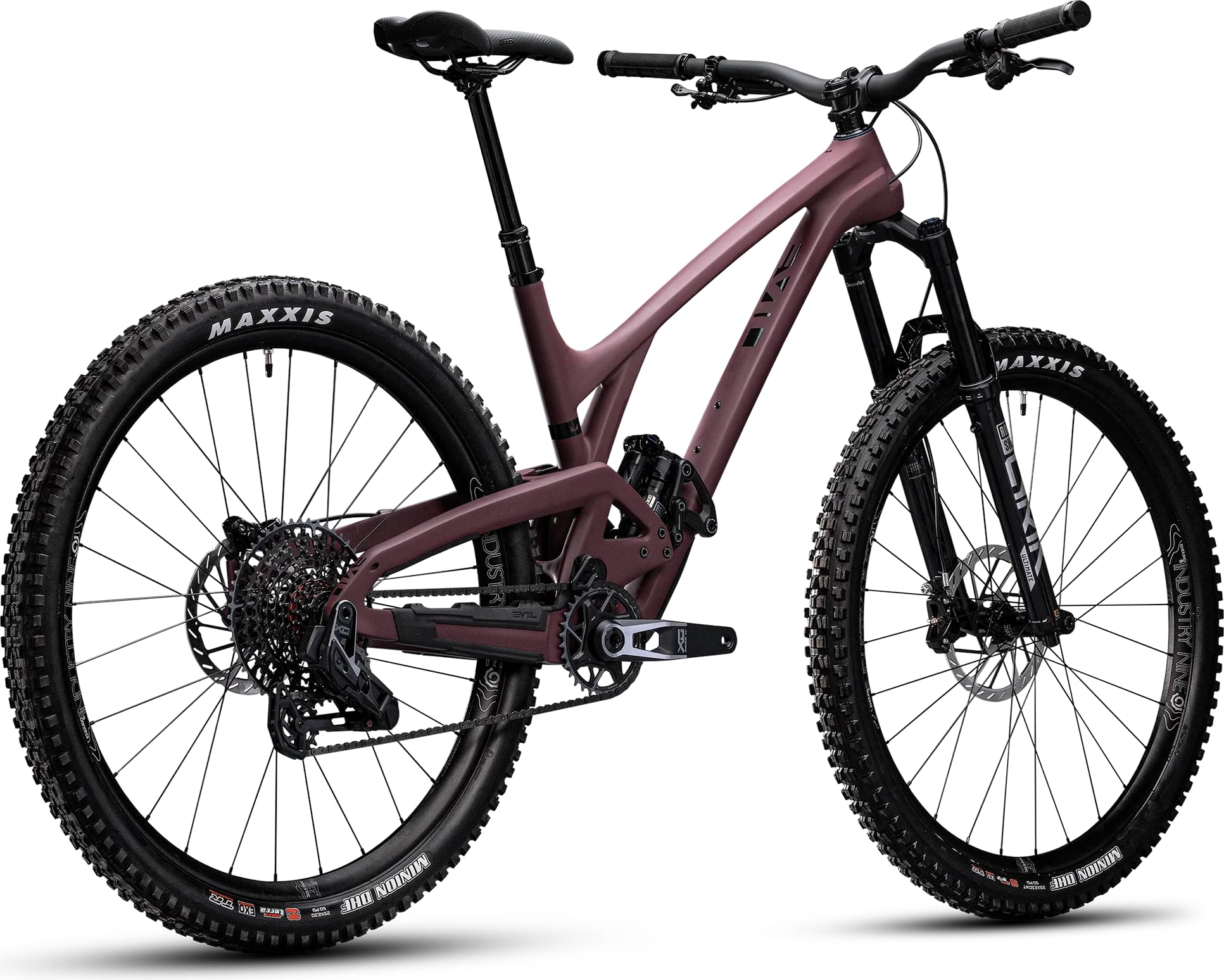

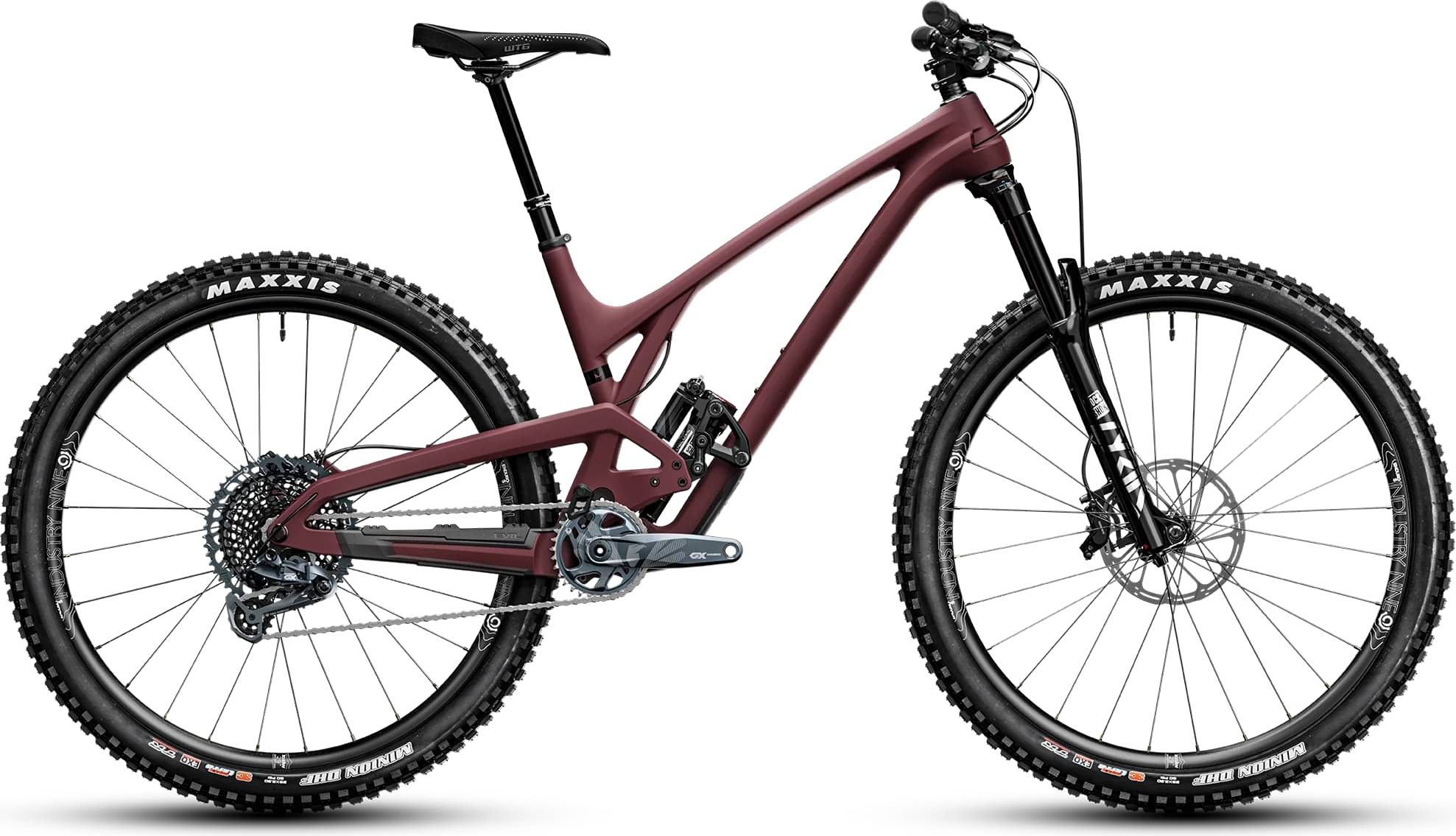

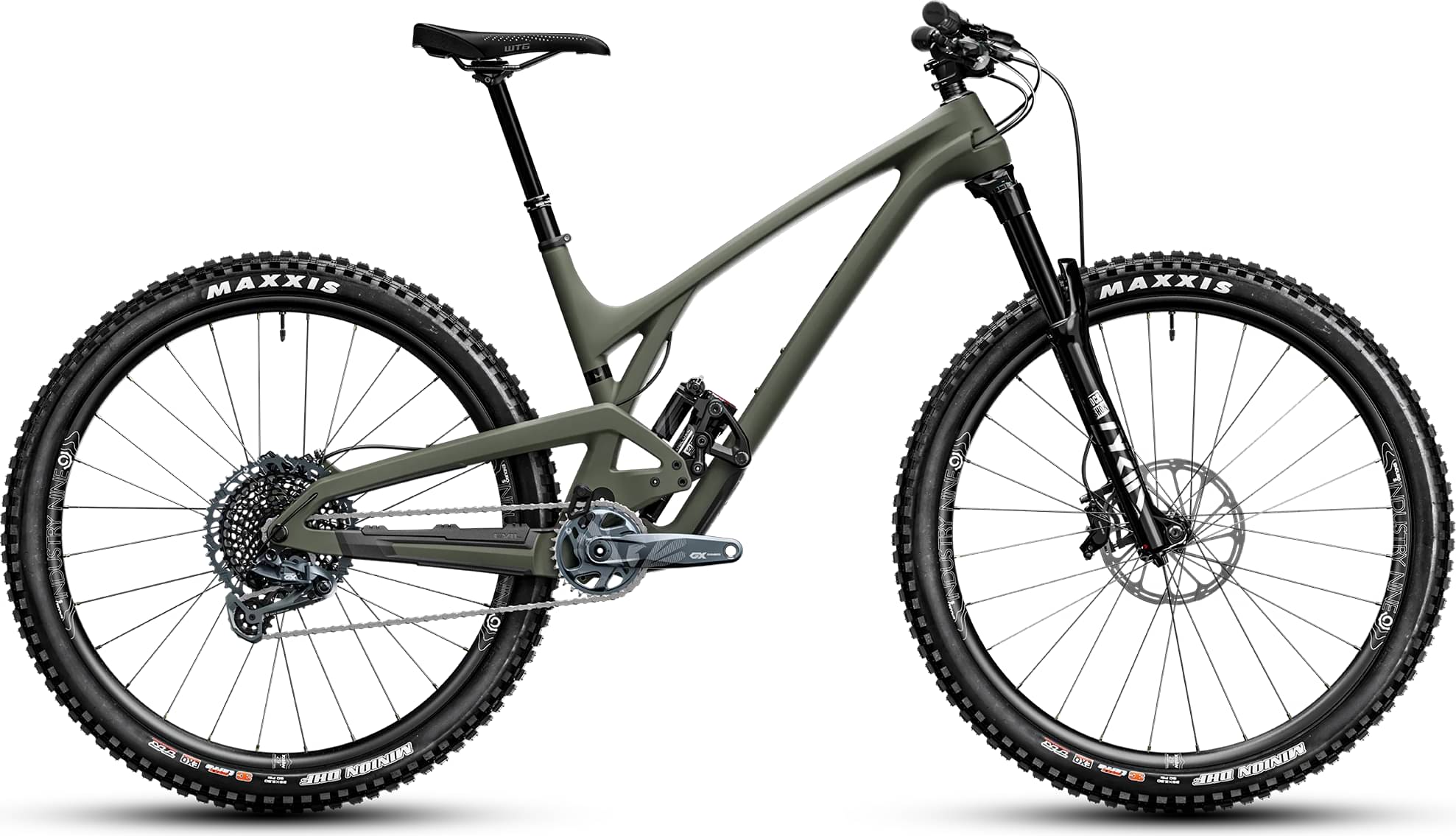

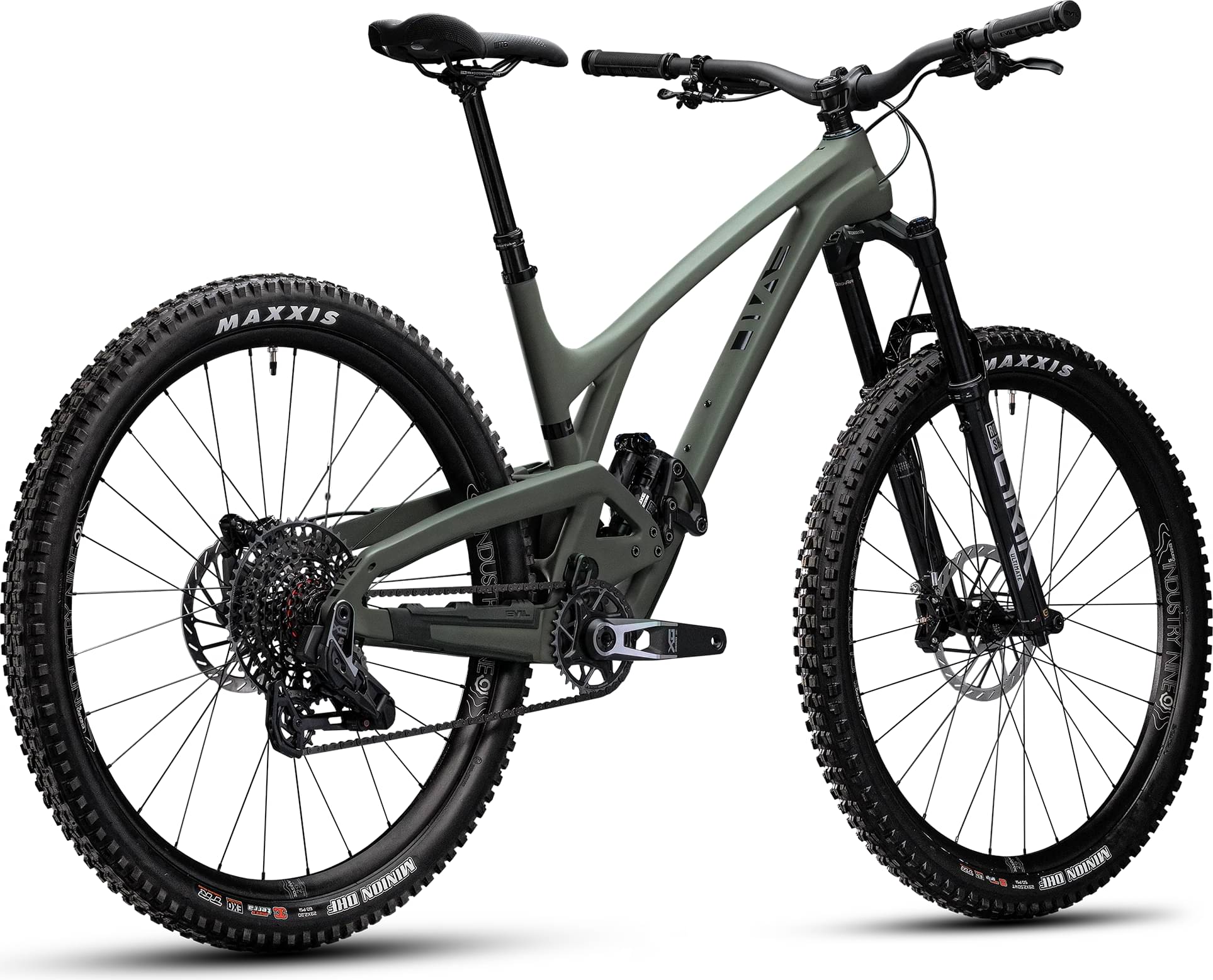

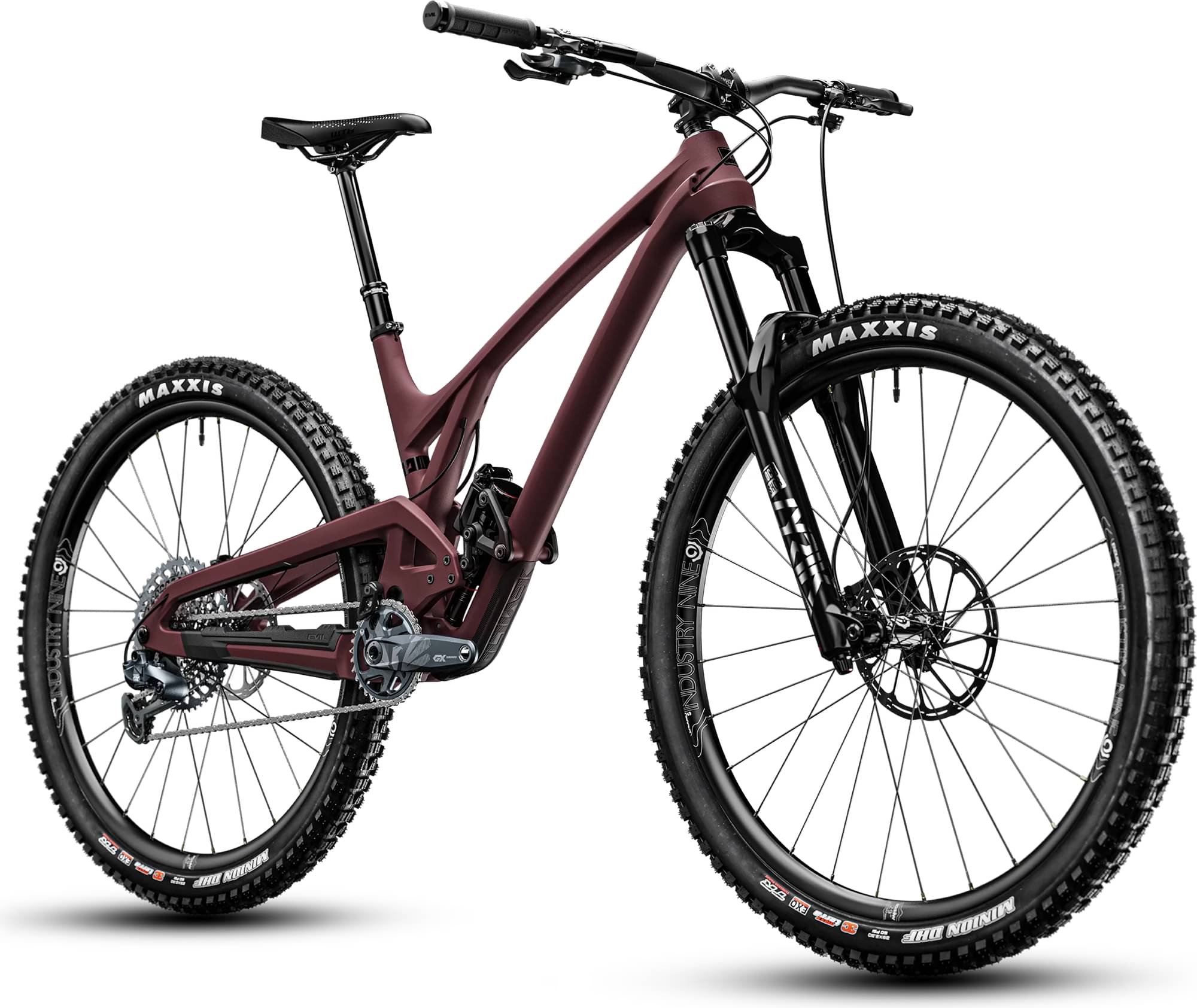

Evil Offering – LS SRAM XO EAGLE TRANSMISSION HYDRA 2023
2023 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 141mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

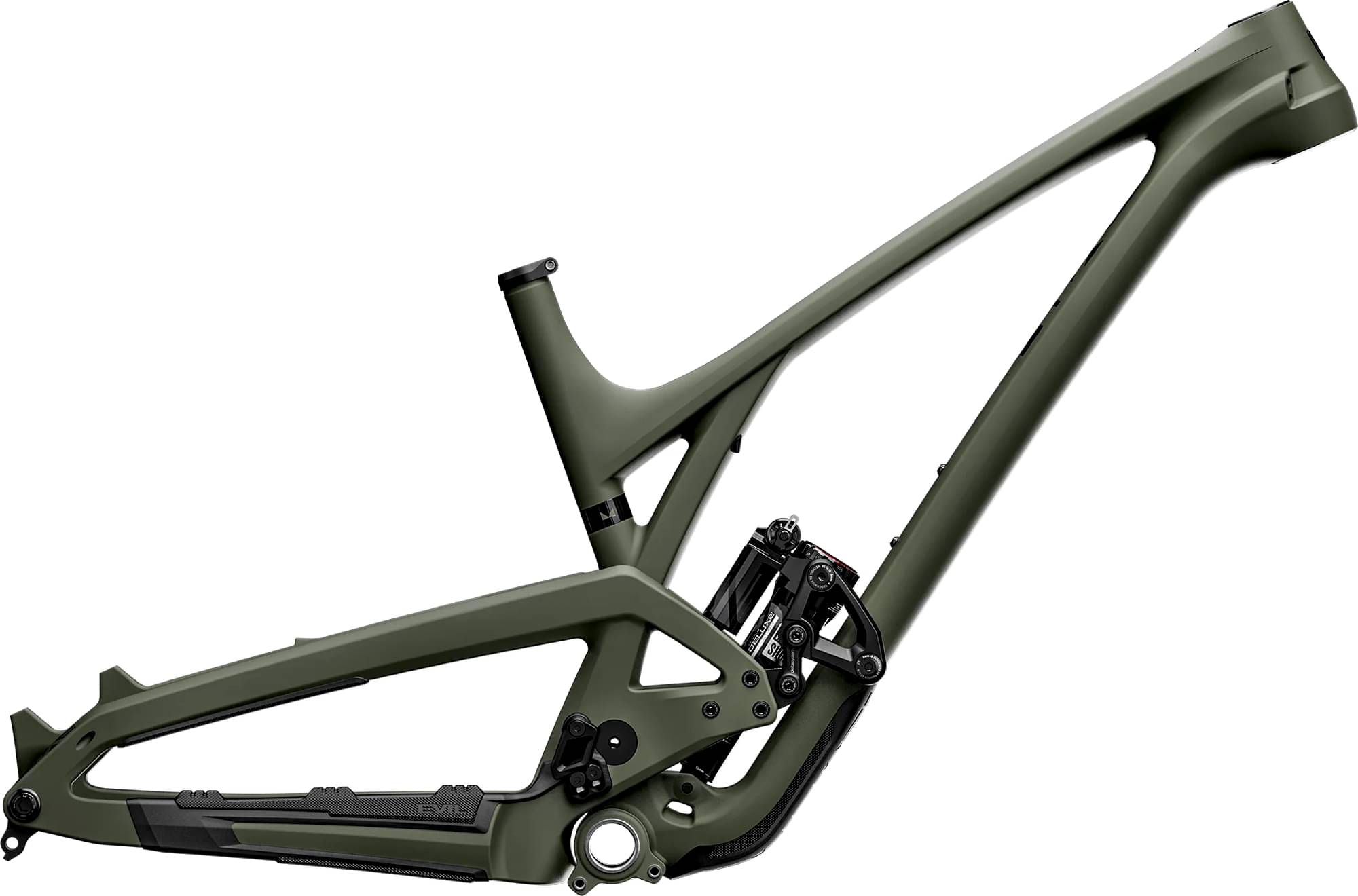

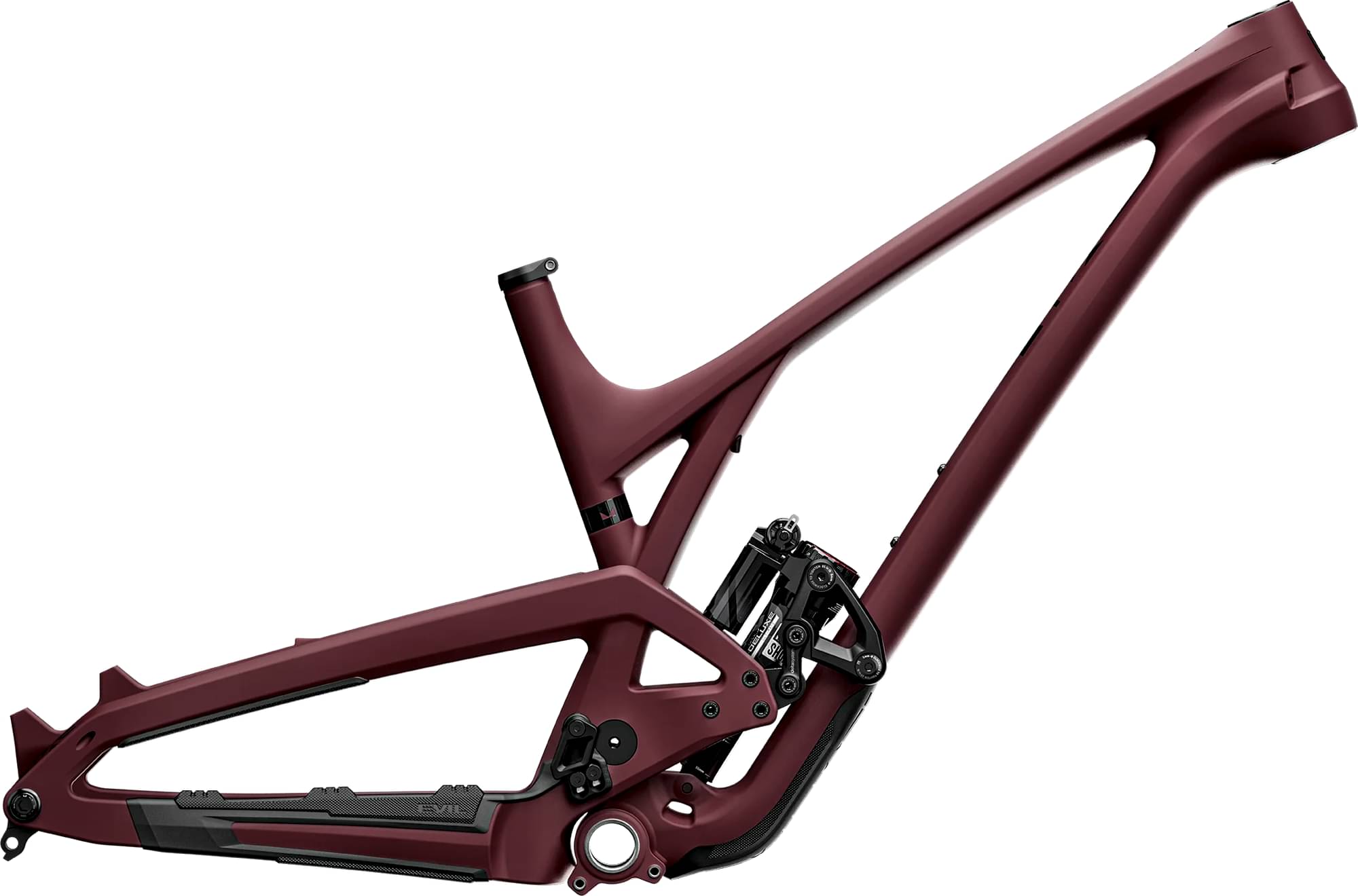

Offering 141mm travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB, UDH Compatible
Suspension Fork
Rockshox Lyrik Ultimate, Charger 2.1 RC2, 150m Travel, 42mm Offset
Rear Shock
Rockshox Super Deluxe Ultimate, Trunnion 185x55, 0L1 LNLC HB 38TS C1
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
SRAM AXS Controller, right
Cassette
SRAM XG-1295 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM X01 Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM X01 Eagle w/Powerlock
Wheels
Rims
141mm
Tires
Maxxis Minion DHF EXO TR, 29x2.5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36 /45 Lower Bearing 40×51.8×8 36 /45
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185m XL: 185mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.368 mm | 1.398 mm | 1.326 mm | 1.354 mm | 1.287 mm | 1.313 mm | 1.252 mm | 1.277 mm |
| Bottom Bracket Height | 347 mm | 339 mm | 347 mm | 339 mm | 347 mm | 339 mm | 347 mm | 339 mm |
| Front Center | 751 mm | 752 mm | 776 mm | 991 mm | 802 mm | 803 mm | 827 mm | 828 mm |
| Rake | 42 mm | 43 mm | 43 mm | 309 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 115 mm | 116 mm | 115 mm | -170 mm | 115 mm | 116 mm | 115 mm | 116 mm |
| Stack | 613 mm | 618 mm | 622 mm | 627 mm | 632 mm | 637 mm | 641 mm | 646 mm |
| Reach | 448 mm | 442 mm | 469 mm | 463 mm | 491 mm | 485 mm | 512 mm | 506 mm |
| Top Tube Length | 594 mm | 596 mm | 617 mm | 619 mm | 639 mm | 641 mm | 661 mm | 663 mm |
| Seat Tube Angle | 77 ° | 76 ° | 77 ° | 76 ° | 77 ° | 76 ° | 77 ° | 76 ° |
| Head Tube Angle | 66.4 ° | 65.8 ° | 66.4 ° | 65.8 ° | 66.4 ° | 65.8 ° | 66.4 ° | 65.8 ° |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1180 mm | 1182 mm | 1205 mm | 1207 mm | 1231 mm | 1233 mm | 1256 mm | 1258 mm |
| Bottom Bracket Drop | 26 mm | 34 mm | 26 mm | mm | 26 mm | 34 mm | 26 mm | 34 mm |
| Standover Height | 672 mm | 664 mm | 684 mm | 676 mm | 695 mm | 687 mm | 706 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Offering – LS SRAM XO EAGLE TRANSMISSION HYDRA completes the Evil Offering model. There are 39 bikes that carry this model name. Take a sneak peek at all Evil Offering bikes models from 2023, by clicking here.
Model range prices
Evil Offering – LS SRAM GX MECHANICAL i9 HYDRA 2023 is the most affordable bike of this model and has a price of 6999$. On the other hand, Evil Offering – LS SRAM X0 Eagle Transmission Loopholes 2023, is the most expensive and costs 9599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Offering – LS SRAM XO EAGLE TRANSMISSION HYDRA components
Fork
The fork installed on this bike is the RockShox Lyrik Ultimate model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Rockshox Super Deluxe Ultimate, with a travel distance of 141mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Offering – LS SRAM XO EAGLE TRANSMISSION HYDRA 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Offering – LS SRAM XO EAGLE TRANSMISSION HYDRA comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
