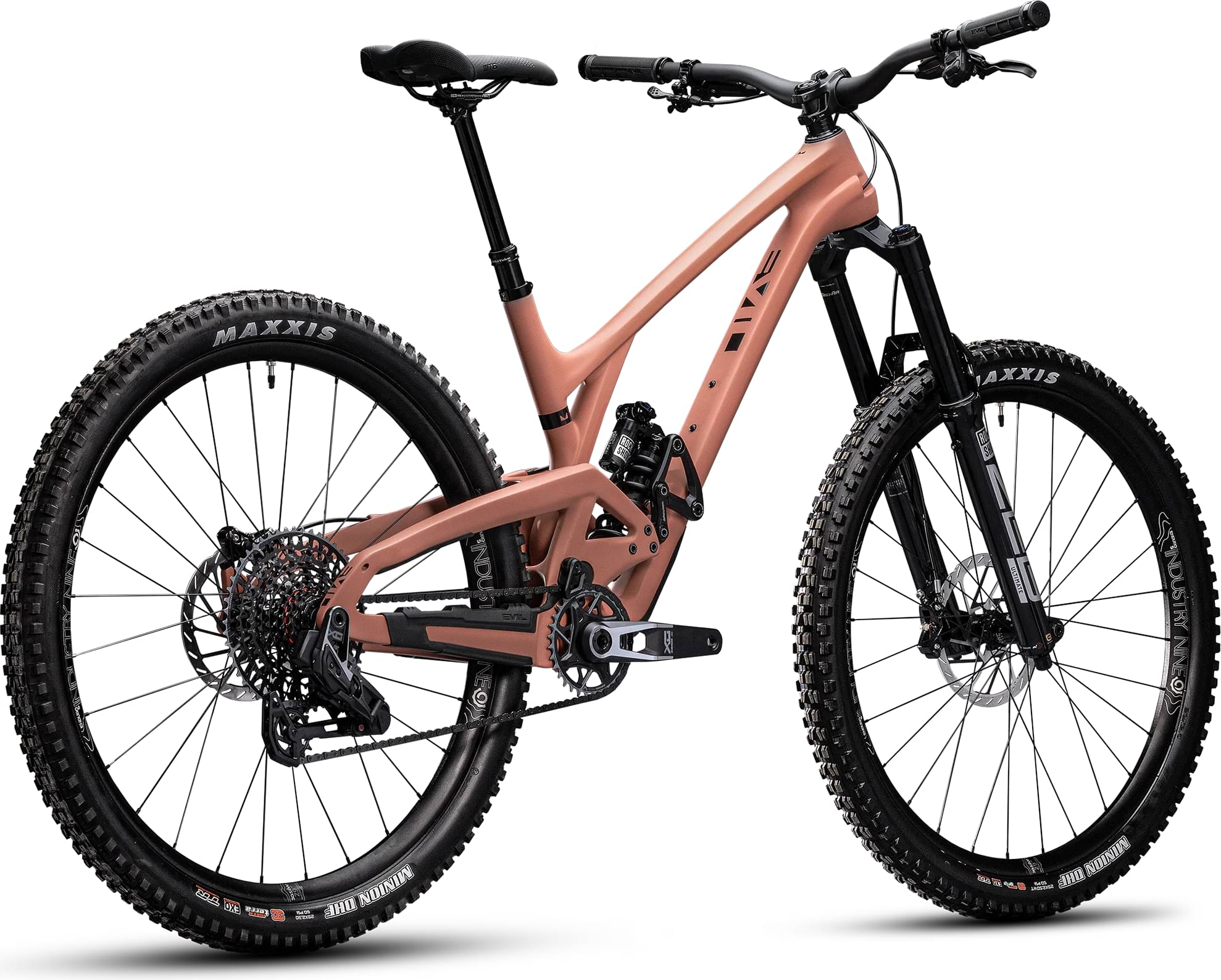

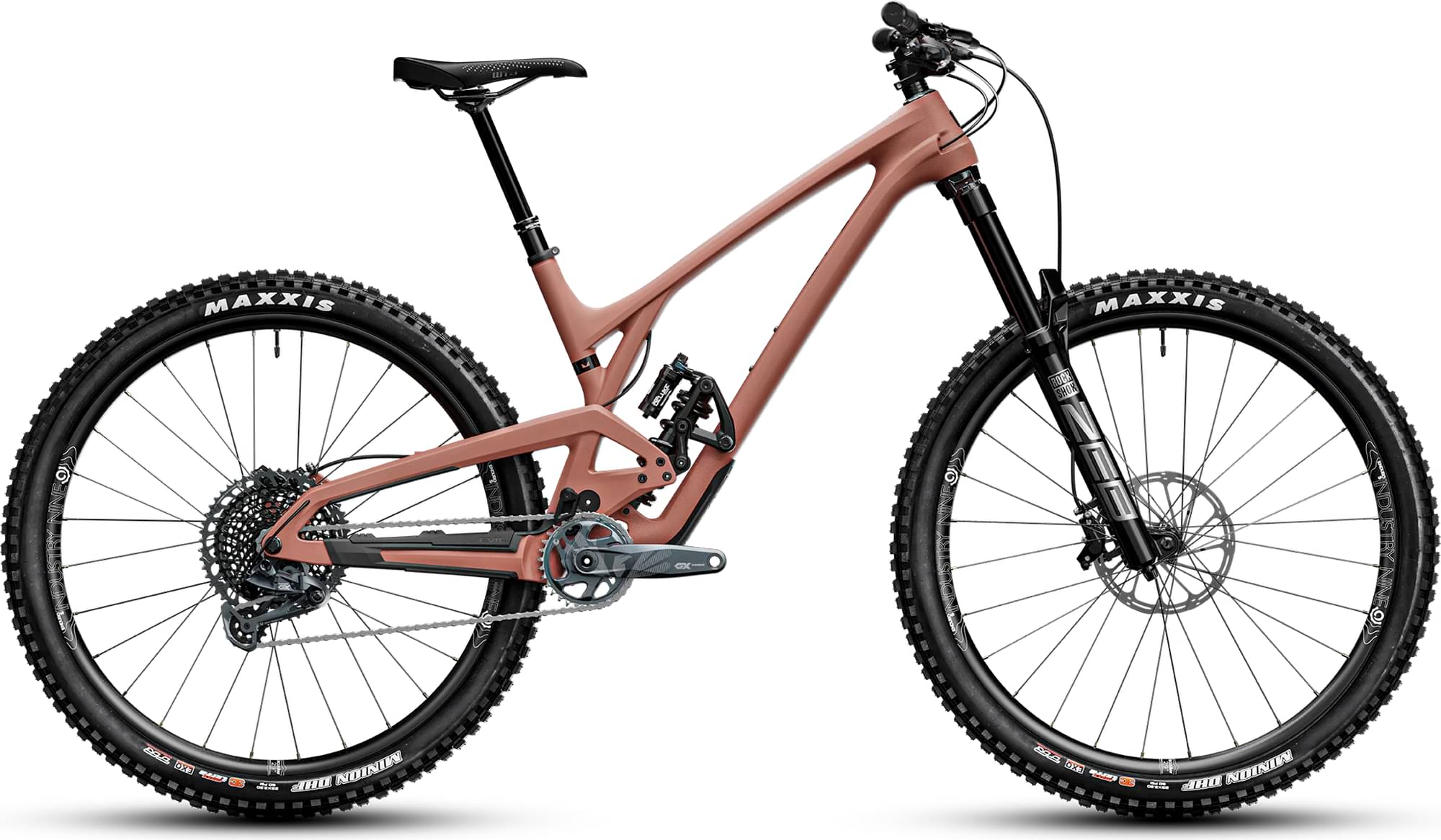

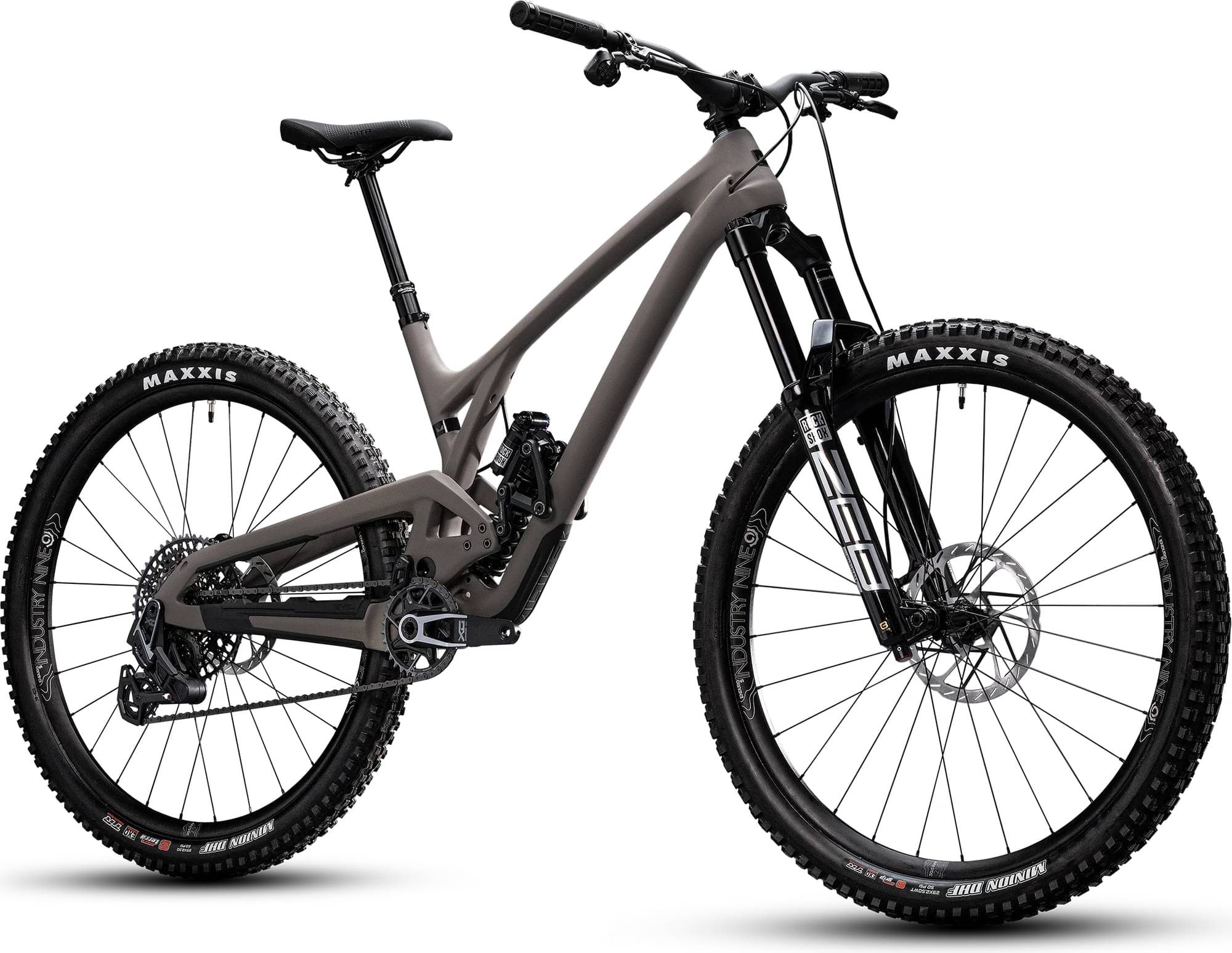

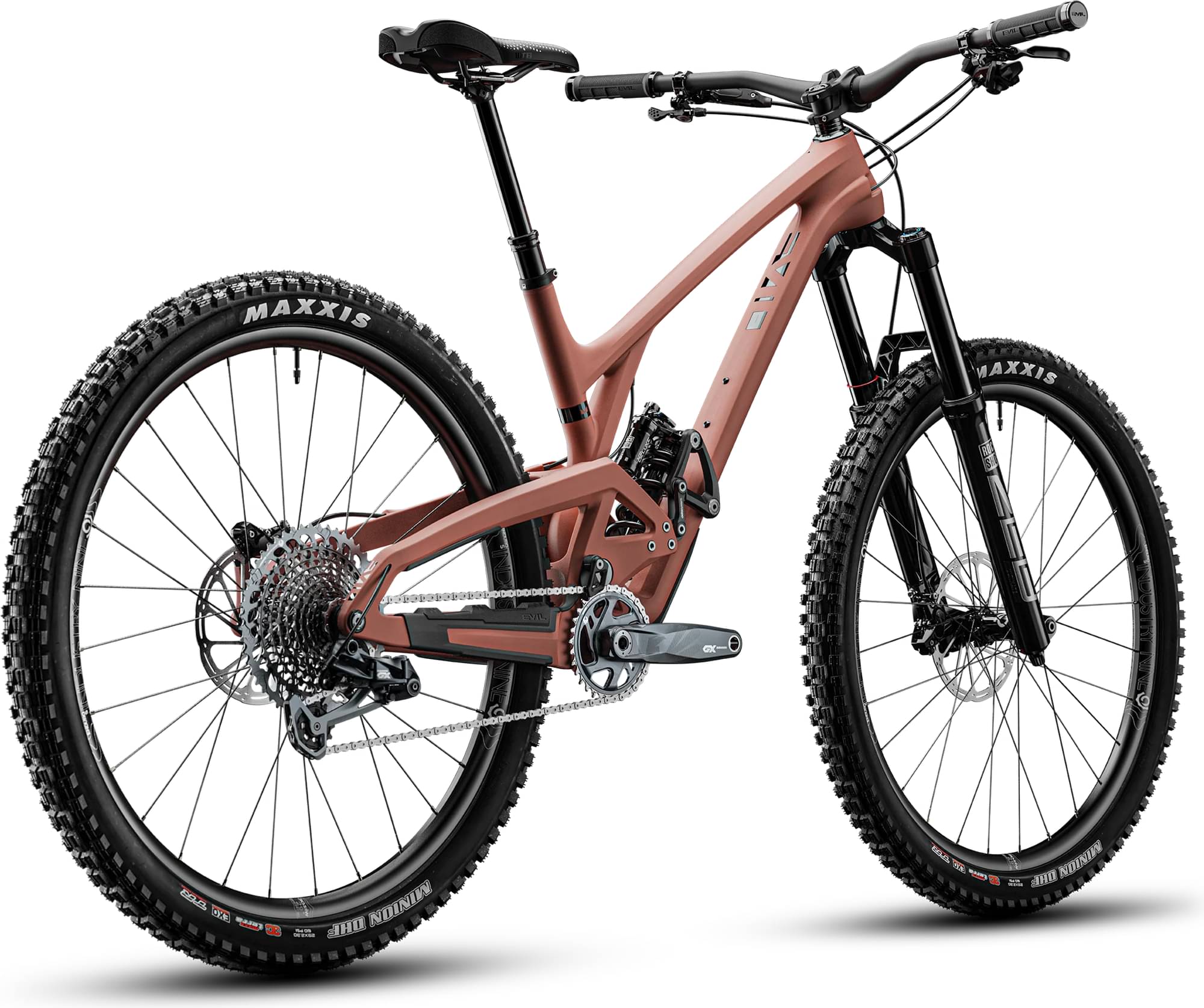

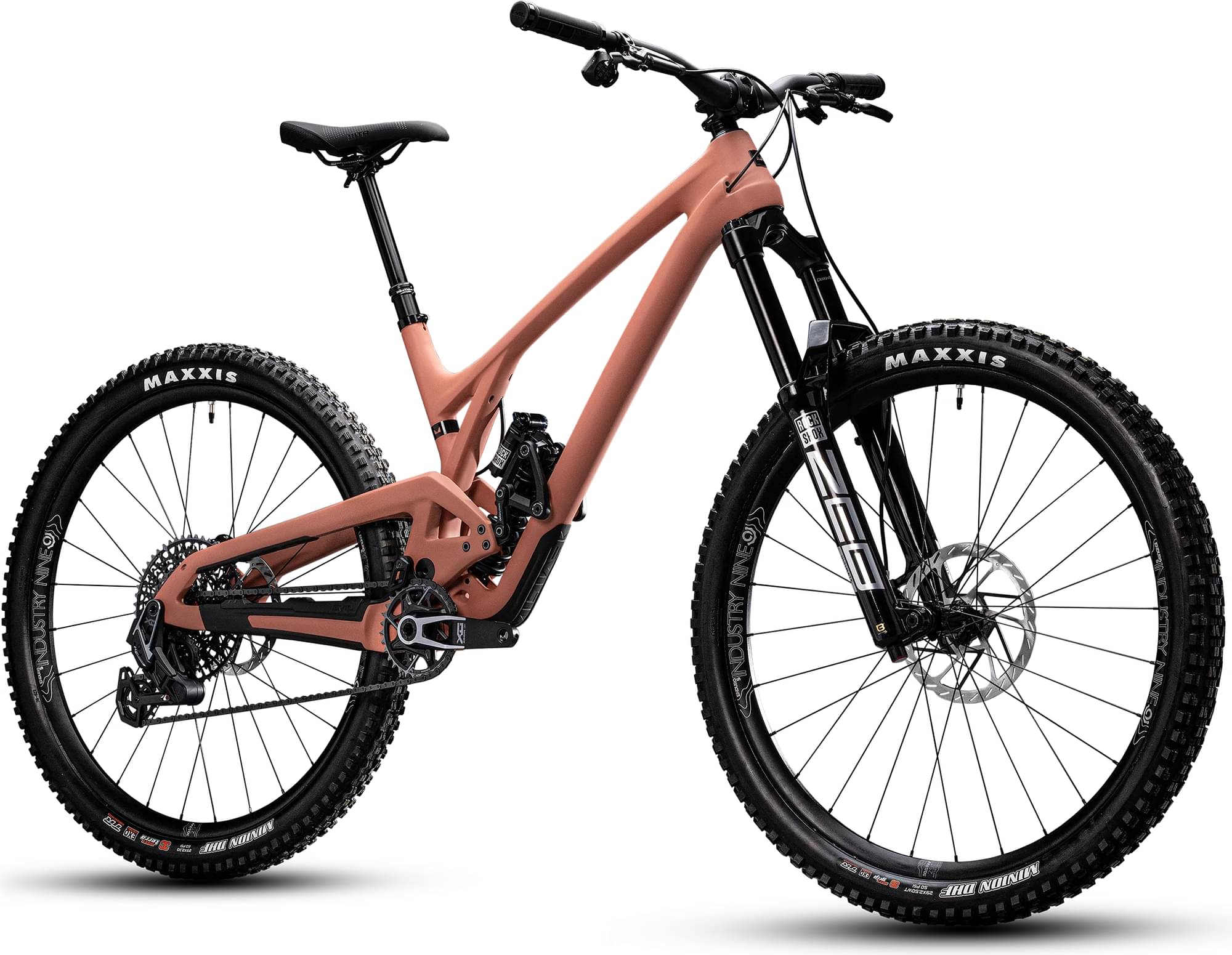

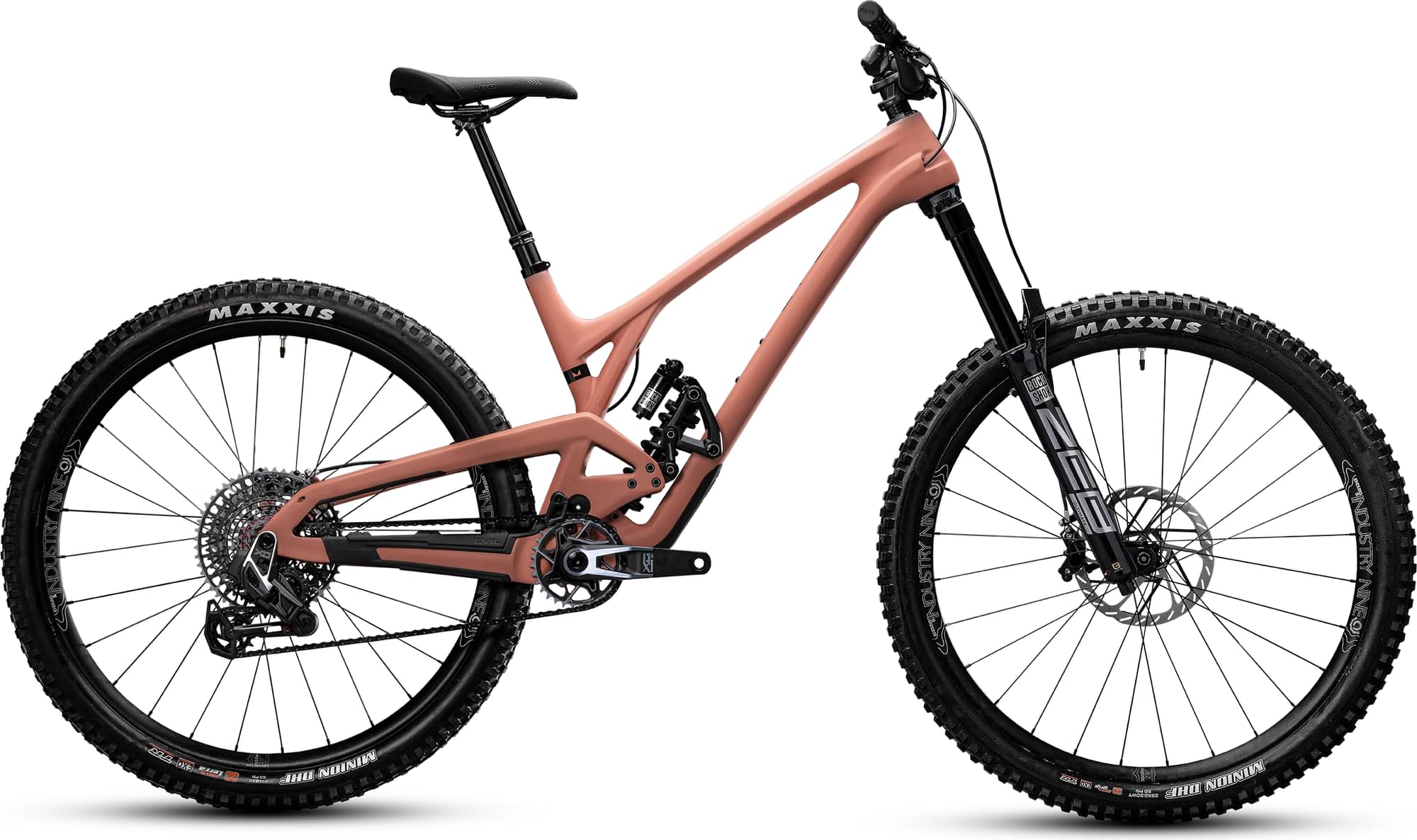

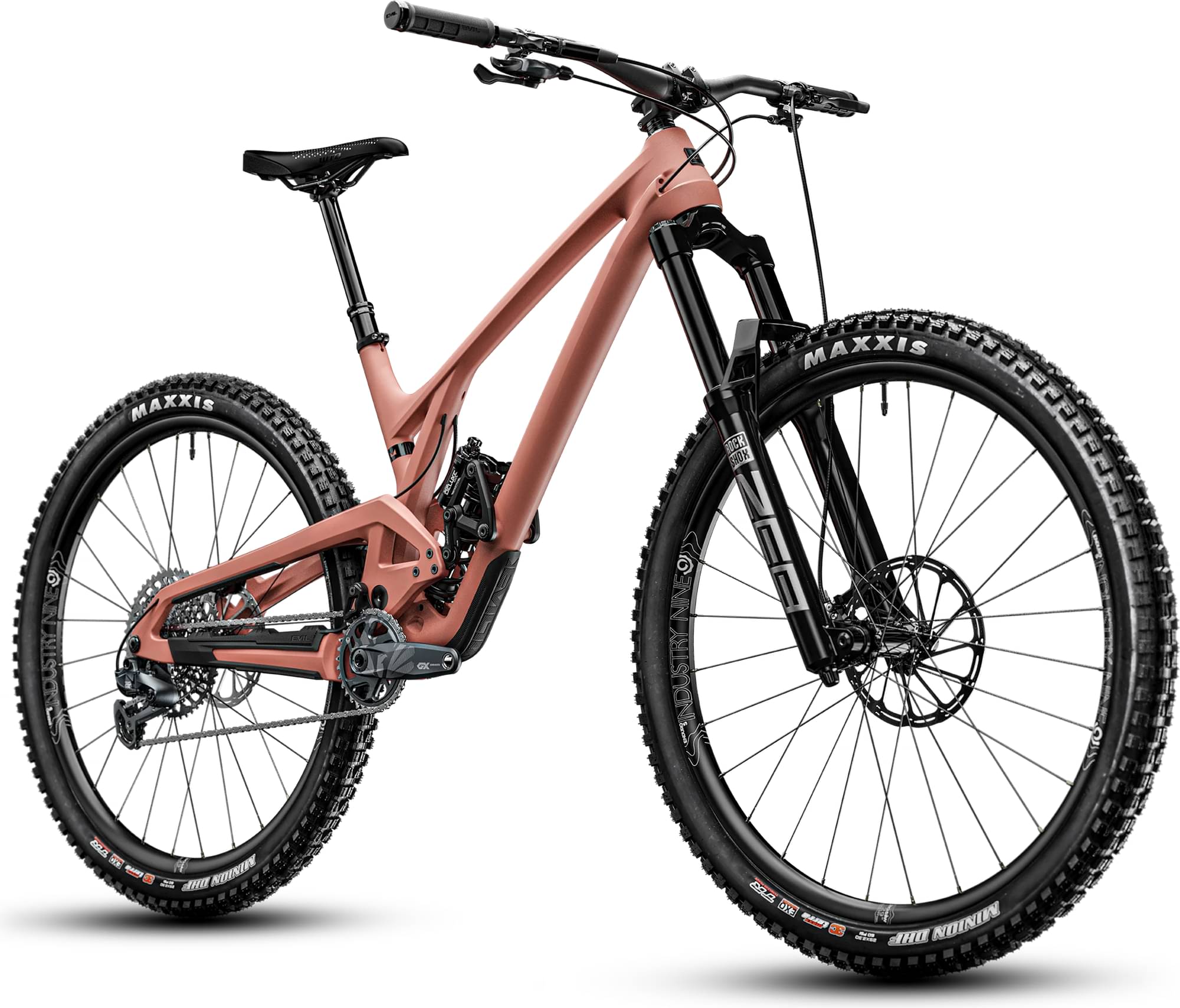

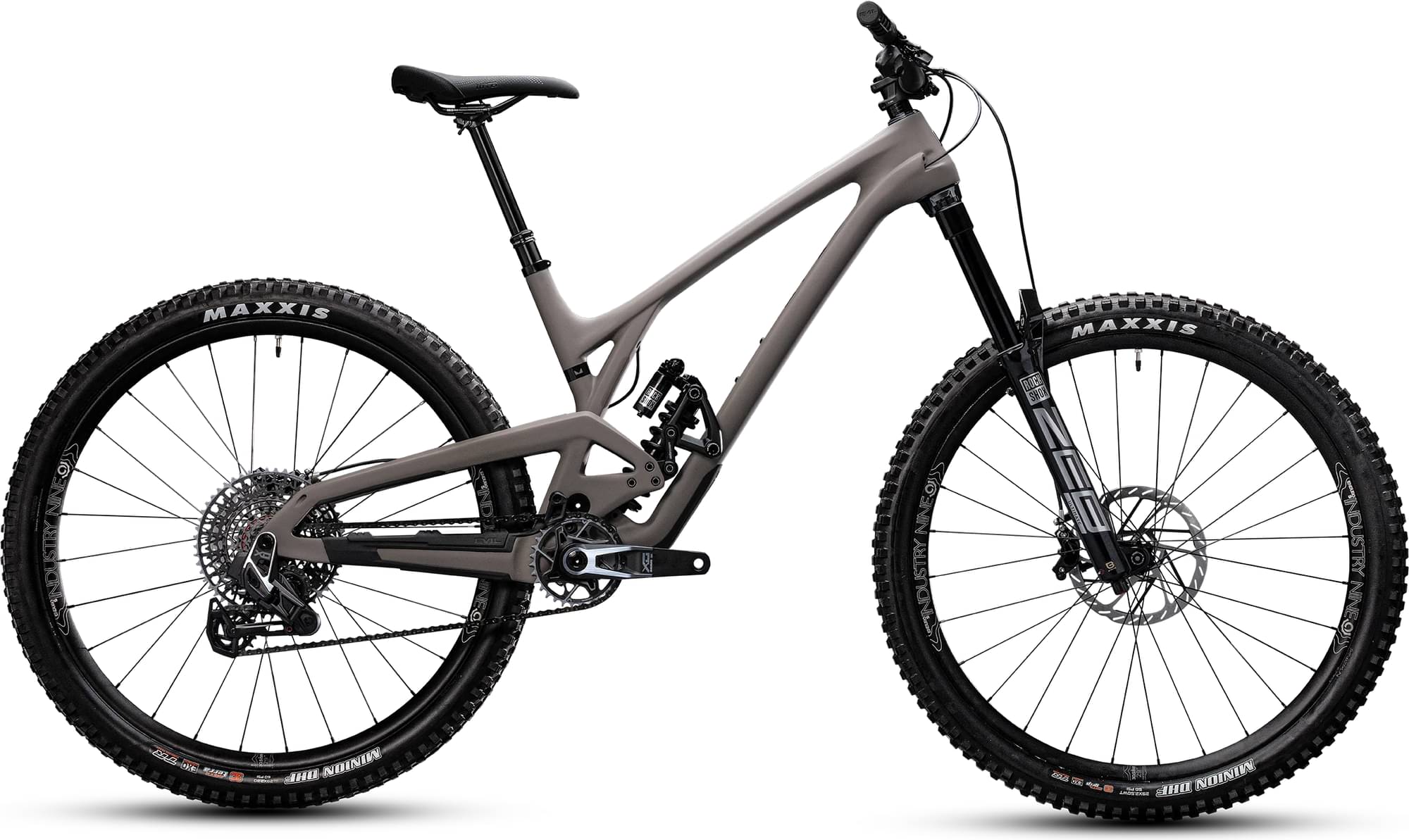

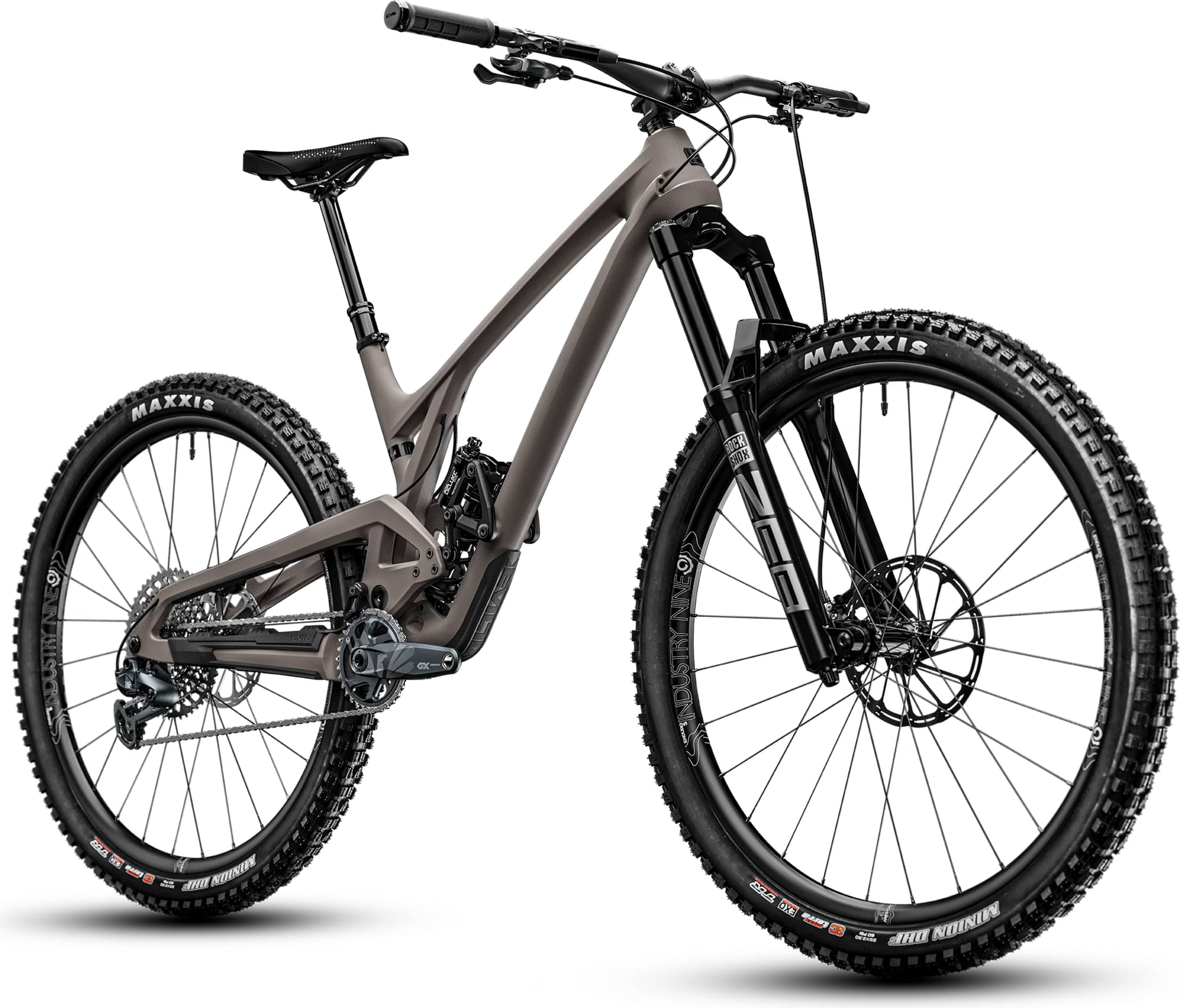

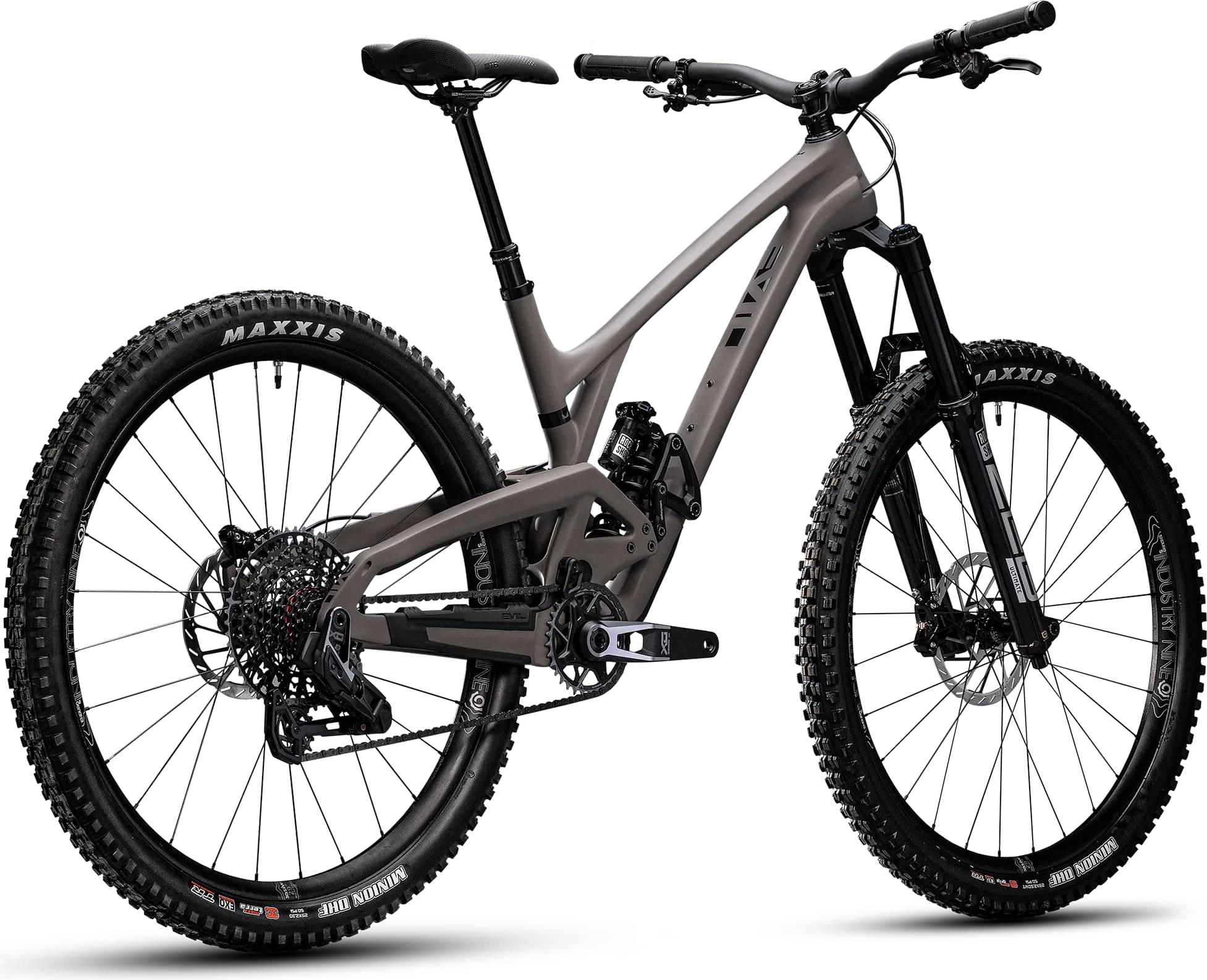

Evil Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA 2023
2023 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 166mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

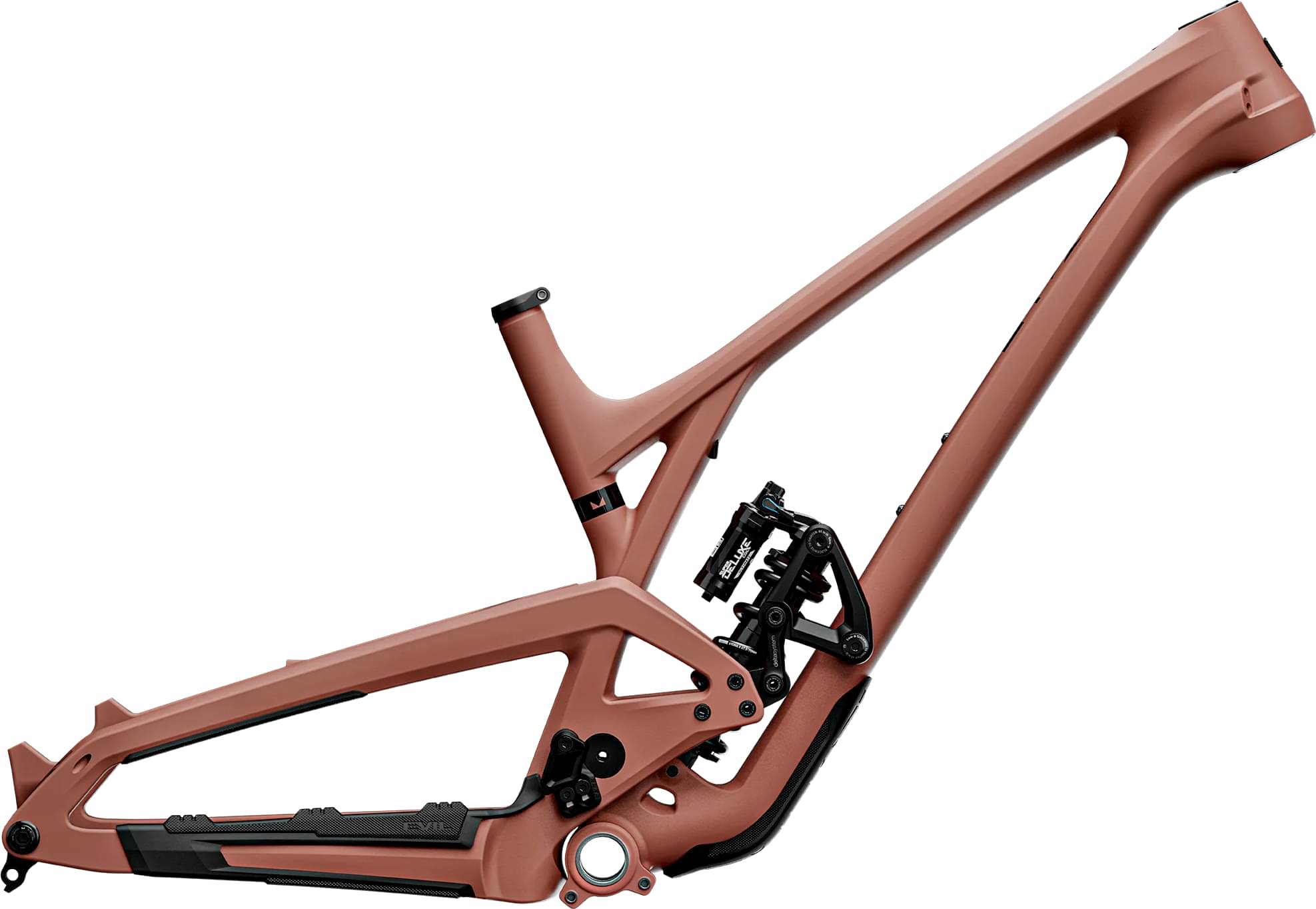

Wreckoning 166mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Suspension Fork
Rockshox ZEB Ultimate, Charger 3 RC2 W/ ButterCups, 170mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
SRAM AXS Controller, Right
Cassette
SRAM XG-1295 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM X01 Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM X01 Eagle w/Powerlock
Wheels
Rims
166mm
Tires
Maxxis Minion DHF EXO TR, 29x2.5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36 /45 Lower Bearing 40×51.8×8 36 /45
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185m XL: 185mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.464 mm | 1.396 mm | 1.429 mm | 1.362 mm | 1.393 mm | 1.329 mm | 1.359 mm |
| Bottom Bracket Height | 355 mm | 347 mm | 355 mm | 347 mm | 355 mm | 347 mm | 355 mm | 347 mm |
| Front Center | 776 mm | mm | 797 mm | mm | 822 mm | mm | 847 mm | mm |
| Rake | 44 mm | mm | 44 mm | mm | 43 mm | mm | 43 mm | mm |
| Trail | 128 mm | 133 mm | 128 mm | 133 mm | 128 mm | 133 mm | 128 mm | 133 mm |
| Stack | 626 mm | 631 mm | 635 mm | 640 mm | 647 mm | 652 mm | 658 mm | 663 mm |
| Reach | 438 mm | 431 mm | 455 mm | 448 mm | 475 mm | 468 mm | 495 mm | 488 mm |
| Top Tube Length | 590 mm | 593 mm | 609 mm | 612 mm | 632 mm | 635 mm | 654 mm | 657 mm |
| Seat Tube Angle | 76.3 ° | 75.7 ° | 76.3 ° | 75.7 ° | 76.3 ° | 75.7 ° | 76.3 ° | 75.7 ° |
| Head Tube Angle | 64.6 ° | 63.9 ° | 64.6 ° | 63.9 ° | 64.6 ° | 63.9 ° | 64.6 ° | 63.9 ° |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1205 mm | mm | 1226 mm | mm | 1251 mm | mm | 1276 mm | mm |
| Bottom Bracket Drop | 18 mm | 27 mm | 18 mm | 27 mm | 18 mm | 27 mm | 18 mm | 27 mm |
| Standover Height | 718 mm | 712 mm | 727 mm | 721 mm | 735 mm | 729 mm | 746 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA completes the Evil Wreckoning model. 40 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Evil Wreckoning – LS SRAM GX MECHANICAL i9 HYDRA 2023 has a starting price of 6999$. Evil Wreckoning – LS SRAM X0 Eagle Transmission Loopholes 2023 on the other hand is the most expensive at 9599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA has a rear shock with a travel of 166mm. The model Rockshox Super Deluxe Coil Ultimate is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Evil Wreckoning – LS SRAM XO EAGLE TRANSMISSION HYDRA comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
