Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 166mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Wreckoning LS 166mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing, Integrated Chain Guide, Threaded BB, UDH Compatible
Suspension Fork
Rockshox ZEB Ultimate, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12sp
Shift Levers
SRAM X01 Eagle, 12sp
Cassette
SRAM XG-1295-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM X01 Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
73mm Threaded
Chain
SRAM X01 Eagle w/Powerlock
Wheels
Rims
166mm
Tires
Front: Maxxis Minion DHF EXO TR, 29x2.5, Rear: Maxxis Minion DHR EXO TR, 29x2.3
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Cane Creek 40 Series ZS Integrated Tapered Headset - Cups: ZS44/28.6 (Upper) and ZS62/40(Lower), Bearing: 36° x 45° - 41mm (Upper) and 36° x 45° - 52mm (Lower) ZN40 Zinc Coated, Crown Race: 28.6mm x 36° Integrated (Upper) and 40mm x 36° Press Fit (Lower)
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 768 mm | 789 mm | 814 mm | 839 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 628 mm | 637 mm | 648 mm | 659 mm |
| Reach | 452 mm | 469 mm | 489 mm | 509 mm |
| Top Tube Length | 595 mm | 615 mm | 637 mm | 660 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.2 ° | 65.2 ° | 65.2 ° | 65.2 ° |
| Head Tube Length | 104 mm | 114 mm | 127 mm | 139 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1204 mm | 1225 mm | 1250 mm | 1275 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 717 mm | 726 mm | 734 mm | 745 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

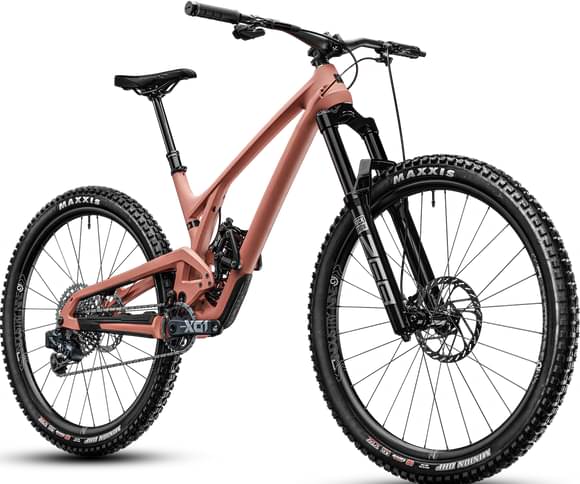

Wreckoning – LS / X01 I9 Hydra is an Evil Wreckoning model. Evil released 39 bikes variations of this model so far. Take a sneak peek at all Evil Wreckoning bikes models from 2023, by clicking here.
Model range prices
Evil Wreckoning – LS SRAM GX MECHANICAL i9 HYDRA 2023 is the most affordable bike of this model and has a price of 6999$. On the other hand, Evil Wreckoning – LS SRAM X0 Eagle Transmission Loopholes 2023, is the most expensive and costs 9599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Rockshox Super Deluxe Coil Ultimate, with a travel distance of 166mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Wreckoning – LS / X01 I9 Hydra are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Wreckoning – LS / X01 I9 Hydra has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Evil Wreckoning – LS / X01 I9 Hydra bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Evil Wreckoning – LS / X01 I9 Hydra comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
