Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 180mm -
Fork RockShox Domain
-
Groupset NX Eagle, SRAM -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, Sizes: S - M - L
Suspension Fork
RockShox DOMAIN-R e-bike - 29" 180mm
Rear Shock
RockShox SuperDeluxe Coil Select+ T205x65
Drivetrain
Rear Derailleur
SRAM NX Eagle 12V
Shift Levers
SRAM NX E-click
Cassette
SRAM SX Eagle 12V, 11-50
Crank
SRAM 34t Steel Eagle
Chain
SRAM NX Eagle 12V
Wheels
Rims
MAVIC E-DEEMAX F 29" - R 27.5"
Tires
Front: Vittoria E-MAZZA 29"x 2.6, Rear: Vittoria E-MARTELLO 27,5"x 2.8
Brakes
Brakes
SRAM Code R 4 Piston disc brake
Cockpit
Stem
FSA GRID 35mm-35 RISE6°
Handlebar
FSA COMET Ø35 Rise 25 800mm / STEM-ZOOM-35MM-ø35
Seat
Saddle
Selle Italia MODEL-X Comfort Superflow 145
Seatpost
SWITCH SW Ø 30.9 S-M(100mm), L(125mm)
Motor & Battery
Motor
Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 364 mm | 364 mm | 364 mm |
| Reach | 421 mm | 450 mm | 476 mm |
| Top Tube Length | 597 mm | 627 mm | 657 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1233 mm | 1263 mm | 1288 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

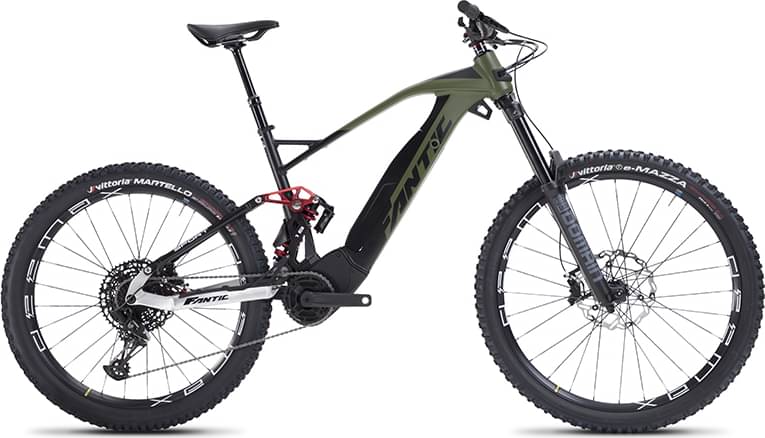

XEF 1.8 Sport is part of the Fantic E Xef model. Fantic released 8 e-bikes variations of this model so far. Take a sneak peek at all Fantic E Xef e-bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill e-bikes average price
If you want an acceptable Downhill e-bike you should know that the average price is 5530$. However, you could also get a good Downhill e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
Fantic XEF 1.8 Sport 2022 e-bike is equipped with the RockShox Domain fork, and has 180mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Fantic XEF 1.8 Sport 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The XEF 1.8 Sport has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
XEF 1.8 Sport comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
