Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 190mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle, SRAM -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, Sizes: S - M - L
Suspension Fork
RockShox ZEB Select e-bike - 29" 190mm
Rear Shock
RockShox SuperDeluxe Coil Select+ T205x65
Drivetrain
Rear Derailleur
SRAM GX Eagle 12V
Shift Levers
SRAM GX E-click
Cassette
Sunrace SilverRed 12V, 11-51
Crank
SRAM 34t Steel Eagle
Chain
SRAM NX Eagle 12V
Wheels
Rims
MAVIC E-DEEMAX F 29" - R 27.5"
Tires
Front: Vittoria E-MAZZA 29"x 2.6, Rear: Vittoria E-MARTELLO 27,5"x 2.8
Brakes
Brakes
MAGURA MT7 4 Piston disc brake
Cockpit
Stem
FSA GRID 35mm-35 RISE6°
Handlebar
FSA COMET Ø35 Rise 15 800mm
Seat
Saddle
Selle Italia MODEL-X BOW Superflow 145
Seatpost
Rockshox Reverb Ø 30.9 S-M(100mm), L(125mm)
Motor & Battery
Motor
Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 364 mm | 364 mm | 364 mm |
| Reach | 421 mm | 450 mm | 476 mm |
| Top Tube Length | 597 mm | 627 mm | 657 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1233 mm | 1263 mm | 1288 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

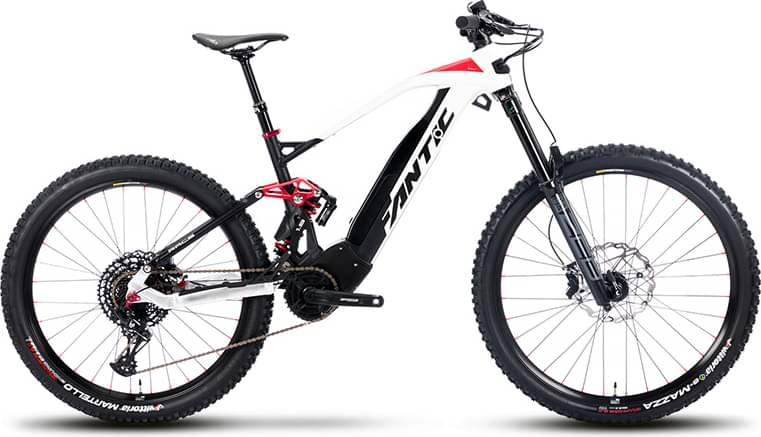

XEF 1.9 Race completes the Fantic E Xef model. Fantic released 8 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
This e-bike has the RockShox ZEB Select fork installed. The fork’s travel is 190mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on XEF 1.9 Race are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Fantic XEF 1.9 Race has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
