Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Fork RockShox Domain
-
Groupset NX Eagle, SRAM -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, Sizes: S - M - L
Suspension Fork
RockShox DOMAIN-R e-bike - 29" 170mm
Rear Shock
RockShox Deluxe Select+ T205x60 Air
Drivetrain
Rear Derailleur
SRAM NX Eagle 12V
Shift Levers
SRAM NX E-click
Cassette
SRAM SX Eagle 12V, 11-50
Crank
SRAM 34t Steel Eagle
Chain
SRAM SX Eagle 12V
Wheels
Rims
FULCRUM E-700
Tires
Front: Vittoria E-MARTELLO 29"x 2.35, Rear: Vittoria E-MARTELLO 27,5"x 2.6
Brakes
Brakes
SRAM Guide T 4 Piston disc brake
Cockpit
Stem
FSA COMET Ø35 Rise +6° 50mm
Handlebar
FSA COMET Ø35 Rise 15 800mm
Seat
Saddle
Selle Italia X BOW Comfort Superflow 145
Seatpost
SWITCH SW Ø 30.9 S-M(100mm), L(125mm)
Motor & Battery
Motor
Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 363.5 mm | 363.5 mm | 363.5 mm |
| Reach | 432 mm | 461 mm | 487 mm |
| Top Tube Length | 593 mm | 603 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 469 mm |
| Head Tube Angle | 65 ° | 65 ° | 65.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1248 mm | 1252 mm | 1277 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

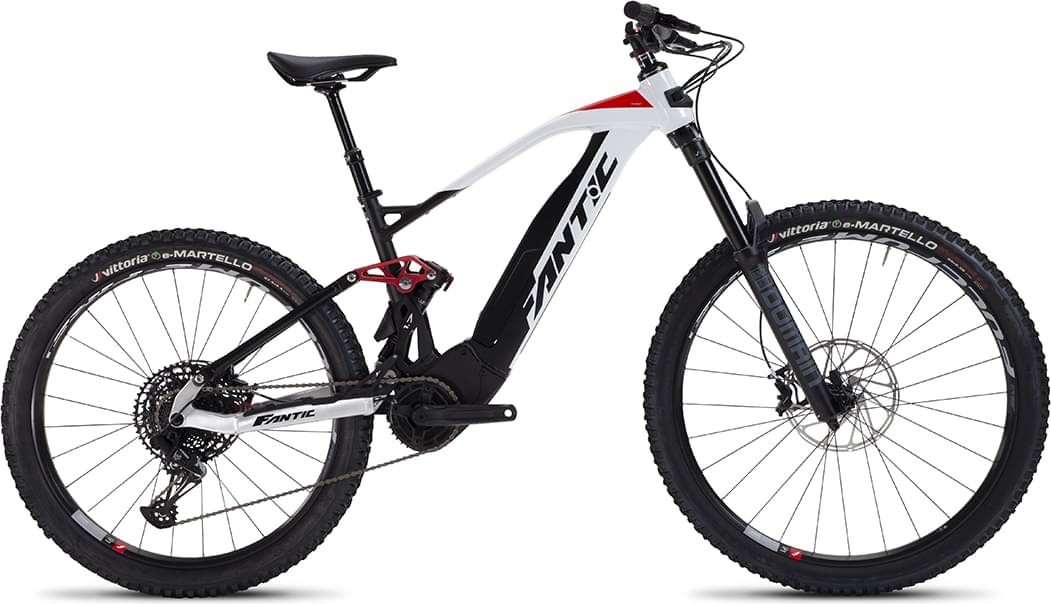

XMF 1.7 belongs to the Fantic E Xmf model. There are 6 e-bikes that carry this model name. You can easily view all of the Fantic E Xmf e-bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill e-bikes average price
If you want an acceptable Downhill e-bike you should know that the average price is 5530$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
XMF 1.7 components
Fork
The XMF 1.7 comes factory-installed with the RockShox Domain fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the XMF 1.7 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XMF 1.7 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
