Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Fork RockShox Domain
-
Groupset GX Eagle, NX -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Sizes: S - M - L
Suspension Fork
RockShox DOMAIN-R e-bike - 29" 170mm
Rear Shock
RockShox SuperDeluxe Select+ T205x60 Air
Drivetrain
Rear Derailleur
SRAM GX Eagle 12V
Shift Levers
SRAM NX E-click
Cassette
SRAM SX Eagle 12V, 11-50
Crank
SRAM 34t Steel Eagle
Chain
SRAM SX Eagle 12V
Wheels
Rims
FULCRUM E-700
Tires
Front: Vittoria E-MARTELLO 29"x 2.35, Rear: Vittoria E-MARTELLO 27,5"x 2.6
Brakes
Brakes
SRAM Code R 4 Piston disc brake
Cockpit
Stem
FSA GRID Ø35 Rise +6° 50mmm
Handlebar
FSA COMET Ø35 Rise 20 800mm
Seat
Saddle
Selle Italia X BOW Superflow
Seatpost
SWITCH SW Ø 30.9 S-M(100mm), L(125mm)
Motor & Battery
Motor
Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 361.5 mm | 361.5 mm | 361.5 mm |
| Reach | 397.5 mm | 428.5 mm | 453 mm |
| Top Tube Length | 578.5 mm | 613 mm | 640 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 390 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1202 mm | 1231 mm | 1253 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

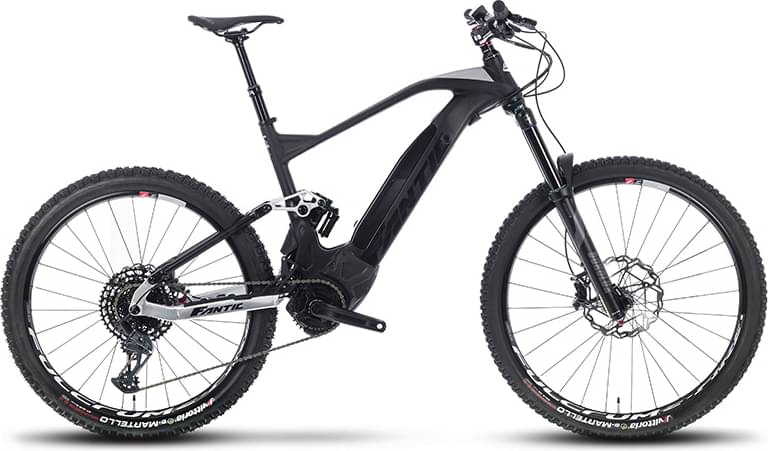

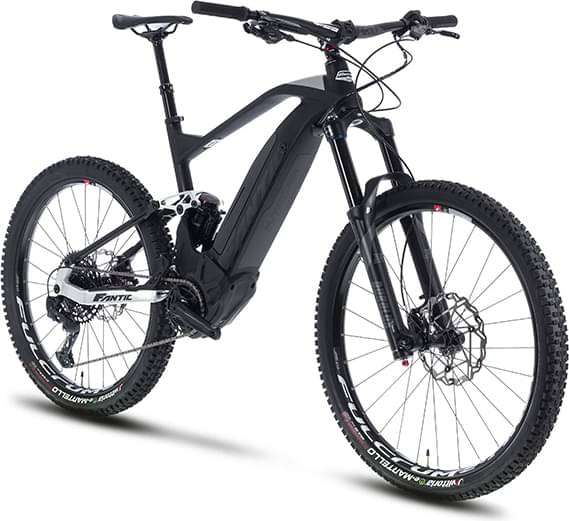

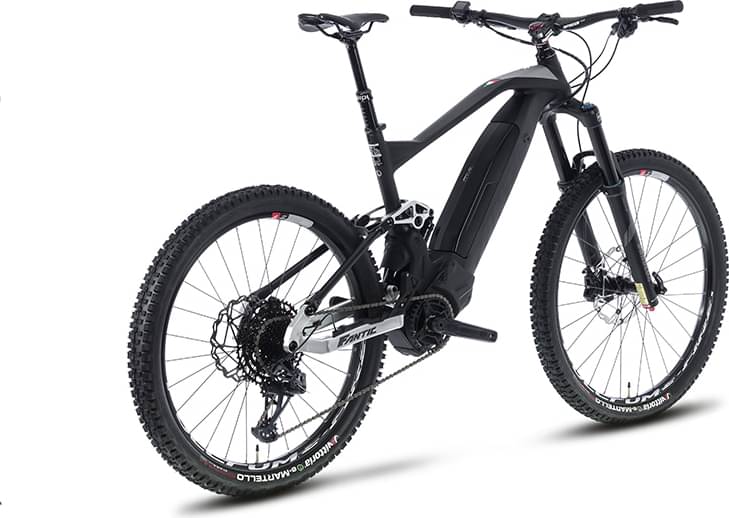

XMF 1.7 Carbon is a Fantic E Xmf model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill e-bikes
Our math shows that the average cost of a dependable Downhill e-bike is 5530$. However, even though the average price of a Downhill e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
XMF 1.7 Carbon components
Fork
The XMF 1.7 Carbon comes factory-installed with the RockShox Domain fork. This has a travel range of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the XMF 1.7 Carbon model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Fantic XMF 1.7 Carbon has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
