Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery Fantic, Lithium Ion, 36 Volt, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, Sizes: S - M - L
Suspension Fork
RockShox Recon Silver RL 150mm
Rear Shock
RockShox Deluxe Select
Drivetrain
Rear Derailleur
SRAM SX
Shift Levers
SRAM SX Eagle
Cassette
SRAM SX, 12V, 11-50
Crank
SRAM 34t
Chain
SRAM SX
Wheels
Rims
Rodi TRYP30
Tires
Pirelli Scorpion ProWall 29"x 2.4
Brakes
Brakes
SRAM LEVEL 2 Piston disc brake
Cockpit
Stem
Promax 60MM ±6° ø31,8
Handlebar
Promax ø31,8 760mm Rise 20mm
Seat
Saddle
Selle Italia MODEL-X Comfort Superflow 145
Seatpost
Promax teles. SP -2038 Ø 30.9, S 80mm / M-L 100mm
Motor & Battery
Motor
Brose S-Alu, Torque/Coppia: 90 Nm
Battery
Fantic, Lithium Ion, 36 Volt, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Stack | 622.8 mm | 632 mm | 648.5 mm |
| Reach | 414 mm | 440 mm | 460 mm |
| Top Tube Length | 580 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66.5 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1200 mm | 1231 mm | 1251 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

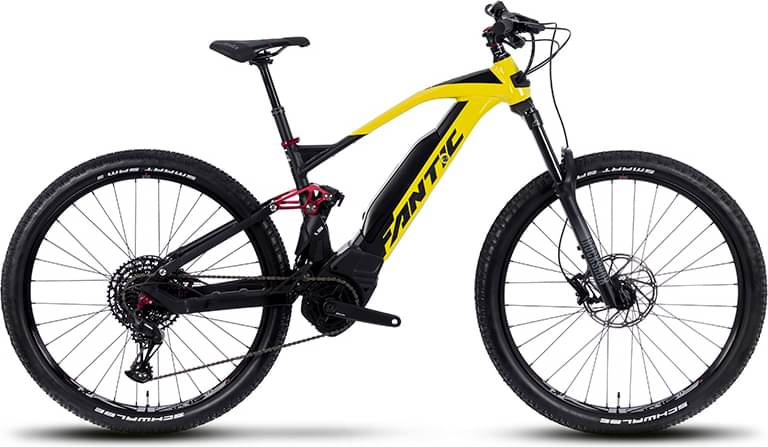

XTF 1.5 belongs to the Fantic E Xtf model. Fantic launched 17 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
XTF 1.5 components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the XTF 1.5 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fantic XTF 1.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
