Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Fork RockShox 35 Gold RL
-
Groupset GX Eagle AXS, SRAM -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, Sizes: S - M - L
Suspension Fork
RockShox 35 GOLD RL e-bike - 29"" 150mm
Rear Shock
RockShox Deluxe Select+ T205x57,5 Air
Drivetrain
Rear Derailleur
SRAM GX - AXS Eagle 12V
Shift Levers
SRAM GX - AXS E-click
Cassette
SRAM SX Eagle 12V, 11-50
Crank
SRAM 34t Steel Eagle
Chain
SRAM SX Eagle 12V
Wheels
Rims
Rodi BlackJack TRIP30
Tires
Front: Pirelli SCORPION TRAIL -S- 29""x 2.4, Rear: Pirelli SCORPION TRAIL -R- 29""x 2.4
Brakes
Brakes
SRAM GUIDE T 4 Piston disc brake
Cockpit
Stem
FSA Logo Ø31,8 - Rise +6°
Handlebar
FSA Logo Ø31,8 - Rise15 - Sweep 6°
Seat
Saddle
Selle Italia MODEL-X Comfort Superflow 145
Seatpost
SWITCH SW Ø 30.9, S - 80mm / M - 100mm / L - 125mm
Motor & Battery
Motor
Brose S-ALU 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Reach | 414 mm | 440 mm | 460 mm |
| Top Tube Length | 580 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66.5 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1200 mm | 1231 mm | 1251 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

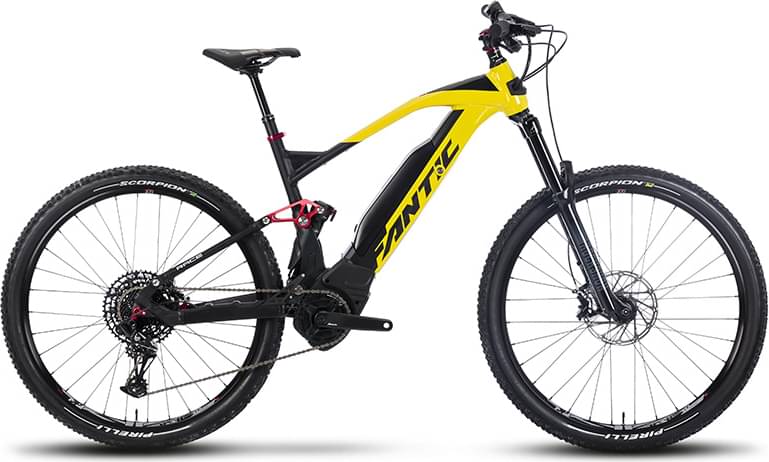

XTF 1.5 Race is a Fantic E Xtf model. Fantic launched 17 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
XTF 1.5 Race components
Fork
Fantic XTF 1.5 Race 2022 e-bike is equipped with the RockShox 35 Gold RL fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the XTF 1.5 Race e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Fantic XTF 1.5 Race has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
