Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle, SRAM -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, Sizes: S - M - L
Suspension Fork
RockShox 35 GOLD RL e-bike - 29" 150mm (*)
Rear Shock
RockShox Deluxe Select+ T205x57,5 Air
Drivetrain
Rear Derailleur
SRAM NX Eagle 12V
Shift Levers
SRAM NX E-click
Cassette
SRAM SX Eagle 12V, 11-50
Crank
SRAM 34t Steel Eagle
Chain
SRAM SX Eagle 12V
Wheels
Rims
Rodi BlackJack TRIP30
Tires
Front: Pirelli SCORPION TRAIL -S- 29"x 2.4, Rear: Pirelli SCORPION TRAIL -R- 29"x 2.4
Brakes
Brakes
SRAM GUIDE T 4 Piston disc brake
Cockpit
Stem
GBC-MAS-60MM±8°-ø31,8°
Handlebar
GBC-MHB-760mm-31,8 RISE20 SWEEP 8°
Seat
Saddle
Selle Italia MODEL-X Comfort Superflow 145
Seatpost
Promax teles. SP -2038 Ø 30.9, S 80mm (SWITCH)/ M-L 100mm
Motor & Battery
Motor
Brose S-ALU 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Stack | 622.8 mm | 632 mm | 648.5 mm |
| Reach | 414 mm | 440 mm | 460 mm |
| Top Tube Length | 580 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66.5 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1200 mm | 1231 mm | 1251 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

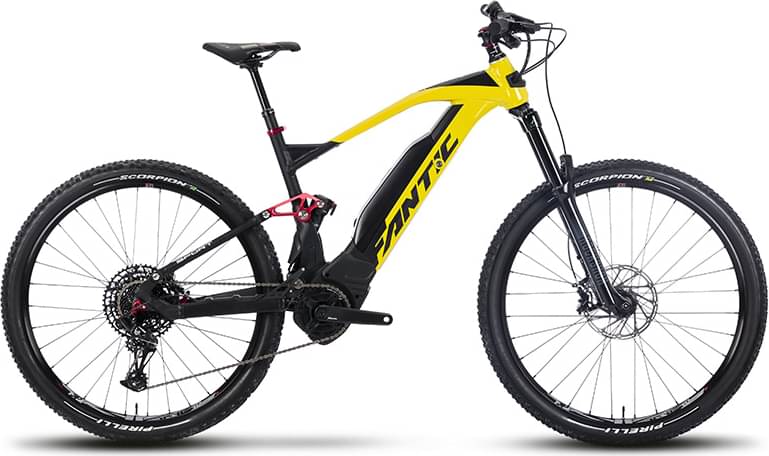

XTF 1.5 Sport is a Fantic E Xtf model. Fantic released 17 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The XTF 1.5 Sport 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
