Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox
-
Groupset GX Eagle AXS, SRAM -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery Fantic, Lithium Ion, 36 Volt, 720Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Sizes: S-M-L-XL
Suspension Fork
RockShox Lirik Select 160mm
Rear Shock
RockShox Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle
Shift Levers
SRAM GX AXS
Cassette
SunRace SilverRed, 12V, 11-51
Crank
SRAM 34t
Chain
SRAM SX
Wheels
Rims
FSA i29 Carbon 29"
Tires
Pirelli SCORPION ProWall Trail -R- 29"x 2.4
Brakes
Brakes
SRAM G2 RS 4 Piston disc brake
Cockpit
Stem
FSA NS ICR 10°AO 70mm Ø31,8
Handlebar
FANTIC RACING Carbon Ø31,8 Rise 25, 760mm
Seat
Saddle
Selle Italia Novus Boost X-CROSS Superflow
Seatpost
Switch SW Ø 30.9
Motor & Battery
Motor
Brose S-Mag 36, Torque/Coppia: 90 Nm
Battery
Fantic, Lithium Ion, 36 Volt, 720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 362.5 mm | 362.5 mm | 362.5 mm | 362.5 mm |
| Stack | 615 mm | 622.1 mm | 635.9 mm | 652.5 mm |
| Reach | 426 mm | 445 mm | 473 mm | 495 mm |
| Top Tube Length | 582 mm | 603 mm | 635 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 469 mm | 510 mm |
| Head Tube Angle | 66 ° | 66.5 ° | 66.5 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1195 mm | 1211 mm | 1245 mm | 1267 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

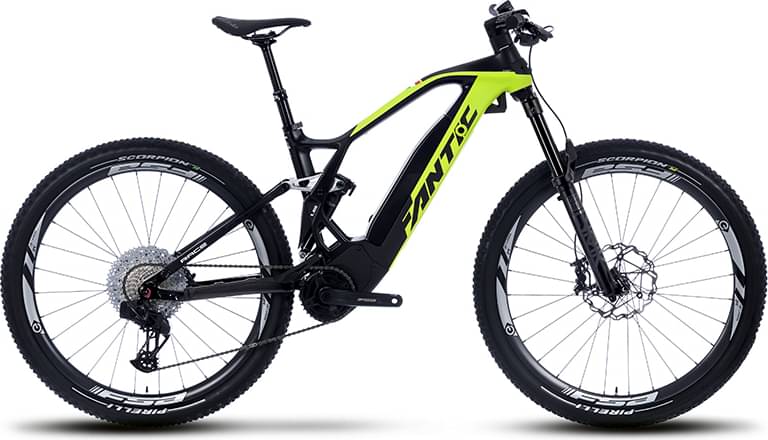

XTF 1.6 Carbon Race completes the Fantic E Xtf model. 17 e-bikes variations carry this model name so far. Take a sneak peek at all Fantic E Xtf e-bikes models from 2023, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
XTF 1.6 Carbon Race components
Fork
This e-bike has the RockShox fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The XTF 1.6 Carbon Race 2023 e-bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XTF 1.6 Carbon Race comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
