Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox
-
Groupset GX Eagle, NX -
Suspension Full -
Motor Brose 250W 90Nm mid-drive -
Battery Fantic Integra, Lithium Ion, 36 Volt, 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Sizes: S - M - L - XL
Suspension Fork
RockShox LIRYC SELECT e-bike - 29" 160mm
Rear Shock
RockShox Deluxe Select+ T205x60 Air
Drivetrain
Rear Derailleur
SRAM GX Eagle 12V
Shift Levers
SRAM NX E-click
Cassette
SRAM SX Eagle 12V, 11-50
Crank
SRAM 34t Steel Eagle
Chain
SRAM SX Eagle 12V
Wheels
Rims
Rodi BlackJack READY27, F 29"/R 29"
Tires
Front: Pirelli SCORPION ProWall Trail -M- 29"x 2.4, Rear: Pirelli SCORPION ProWall Trail -R- 29"x 2.4
Brakes
Brakes
Front: SRAM G2 RS 4 Piston disc brake, Rear: SRAM G2 RS 4 Piston disc brake
Cockpit
Stem
FSA Logo 60mm-31,8 RISE6°
Handlebar
FSA Logo 760mm-31,8 RISE15 SWEEP 6°
Seat
Saddle
Sella Italia x BOW Superflow
Seatpost
Switch SW Ø 30.9 S-M(100mm), L(125mm), XL(150mm)
Motor & Battery
Motor
Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery
Fantic Integra, Lithium Ion, 36 Volt, 720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 362.5 mm | 362.5 mm | 362.5 mm | 362.5 mm |
| Stack | 615 mm | 622.1 mm | 635.9 mm | 652.5 mm |
| Reach | 426 mm | 445 mm | 473 mm | 495 mm |
| Top Tube Length | 582 mm | 603 mm | 635 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 469 mm | 510 mm |
| Head Tube Angle | 66 ° | 66.5 ° | 66.5 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1195 mm | 1211 mm | 1245 mm | 1267 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

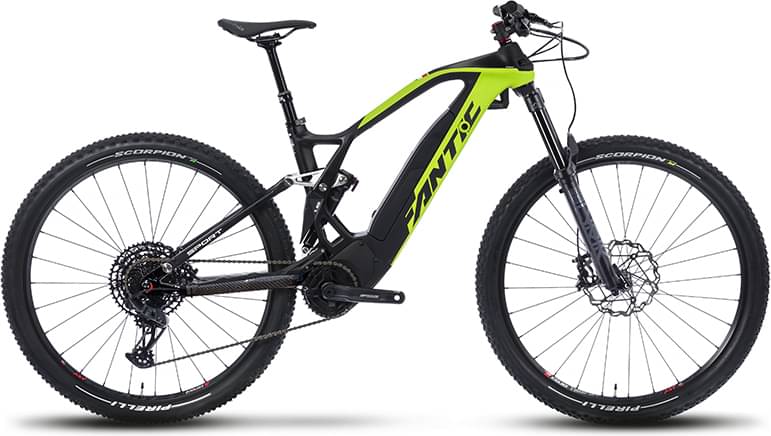

Model Overview
XTF 1.6 Carbon Sport completes the Fantic E Xtf model. 17 e-bikes variations carry this model name so far. You can easily view all of the Fantic E Xtf e-bikes models from 2022, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
XTF 1.6 Carbon Sport components
Fork
This e-bike has the RockShox fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the XTF 1.6 Carbon Sport e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The XTF 1.6 Carbon Sport has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
XTF 1.6 Carbon Sport comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
