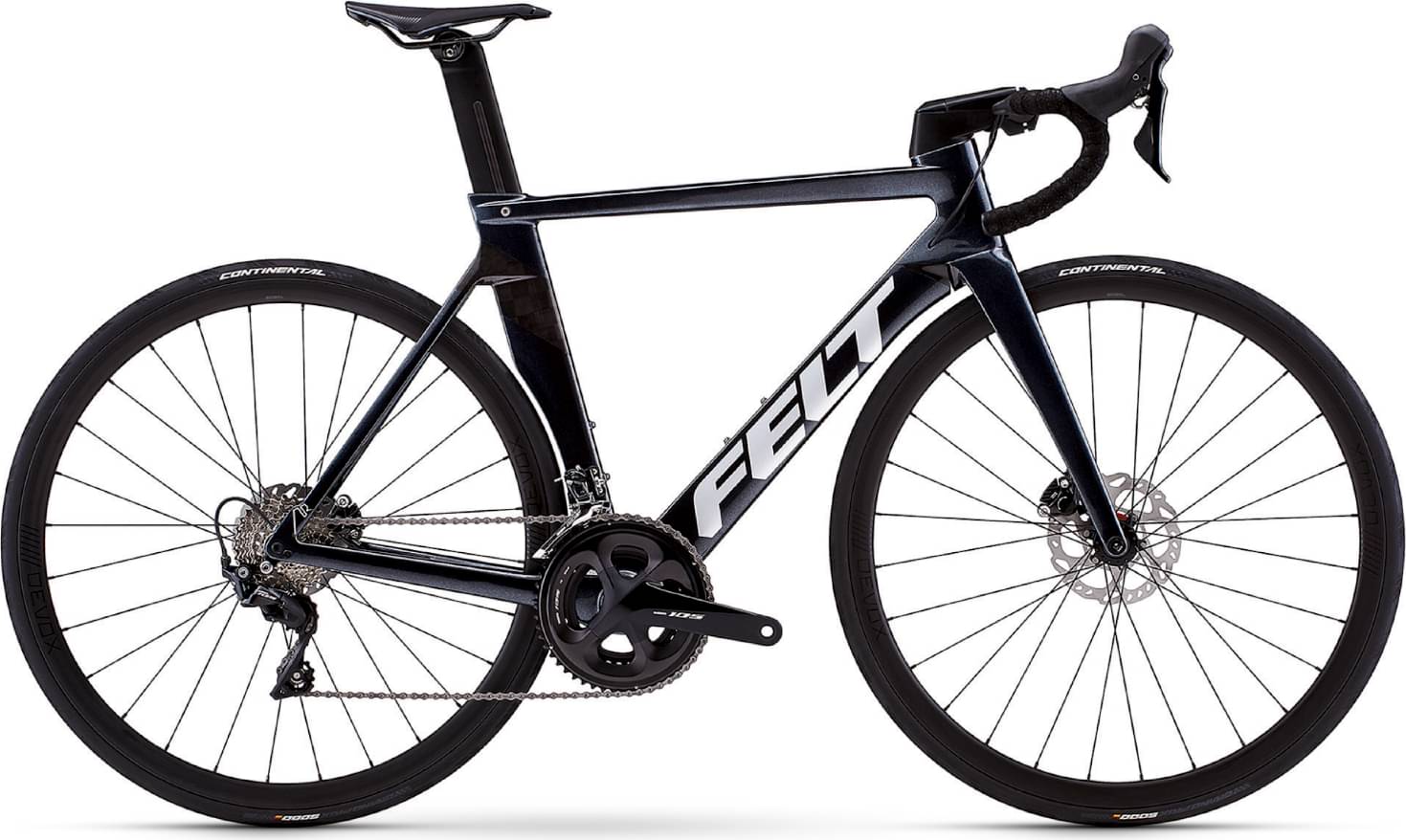

Felt AR Advanced 105 2023
2023 Road
Estimate price |
4,199$
Weight | 8.91 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
152cm - 169cm
51cm
166cm - 174cm
54cm
171cm - 179cm
56cm
176cm - 184cm
58cm
181cm - 189cm
61cm
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt AR 3.0, UHC Advanced + TeXtreme carbon
Suspension Fork
Felt AR 3.0, UHC Advanced + TeXtreme carbon fiber
Drivetrain
Rear Derailleur
Shimano 105, RD-R7000, Shadow, 22-S
Front Derailleur
Shimano 105, FD-R7000, Down-Swing
Shift Levers
48, 51 cm: Shimano 105, ST-R7025, 54, 56, 58, 61 cm: Shimano 105, ST-R7020
Cassette
Shimano 105 CS-R7000, 11-30 T
Crank
Shimano 105, FC-R7000, 52/36 T
Bottom Bracket
Press-Fit | BB386
Chain
Shimano CN-HG601
Wheels
Front Hub
Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x100
Rear Hub
Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x142, 11-speed
Rims
Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm
Spokes
J-Bend, 2.0, stainless steel, black
Tires
Continental Grand Sport Race SL,
Brakes
Brakes
Front: Shimano BR-R7070, 2-piston, Hydraulic disc brake, Rear: Shimano BR-R7070, 2-piston, Hydraulic disc brake
Cockpit
Stem
Felt Sprint, -6 °
Handlebar
48, 51 cm: Devox DBar.C0 Aero 31.8 mm, 400 mm, 54, 56, 58, 61 cm: Devox DBar.C0 Aero 31.8 mm, 420 mm
Headset
IS (NO.44)
Seat
Saddle
Prologo Dimension 143 STN
Seatpost
Felt AeroRoad IL 2.0, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.4 mm | 1.42 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 47 mm | 47 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 59 mm | 54 mm | 55 mm | 52 mm | 52 mm |
| Stack | 508 mm | 525 mm | 546 mm | 568 mm | 586 mm | 615 mm |
| Reach | 377 mm | 388 mm | 390 mm | 401 mm | 415 mm | 426 mm |
| Top Tube Length | 516 mm | 536 mm | 550 mm | 567 mm | 587 mm | 612 mm |
| Seat Tube Angle | 74.3 ° | 74.4 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 441 mm | 473 mm | 502.5 mm | 526 mm | 553 mm | 601 mm |
| Head Tube Angle | 71 ° | 72.1 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 97 mm | 111 mm | 130 mm | 150 mm | 167 mm | 197.5 mm |
| Chainstay Length | 415 mm | 415 mm | 417 mm | 417 mm | 417 mm | 419 mm |
| Wheelbase | 981 mm | 984 mm | 987 mm | 995 mm | 1010 mm | 1031 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 741 mm | 767 mm | 787 mm | 814 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 171 cm | 176 cm | 181 cm | 186 cm |
| Rider Max Height | 169 cm | 174 cm | 179 cm | 184 cm | 189 cm | 195 cm |
About this model
AR Advanced 105 completes the Felt Ar model. There are 41 bikes that carry this model name. Take a sneak peek at all Felt Ar bikes models from 2023, by clicking here.
Model range prices
Felt AR Advanced 105 2023 is the cheapest bike model and costs 4199$. Felt AR FRD Ultimate RED eTap AXS 2023 is the most expensive one and costs 15049$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Felt released this model in 2023, its price was 4199$. In conclusion, this bike price is 0.29% lower than the price of the average Aero bike.
Average weight for Aero bikes
Aero bikes have an average weight of 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 8.91 kg (19.64 lbs), Felt bike is much heavier than average. In other words, this model is 21.39% heavier than the average Aero bike.
AR Advanced 105 components
Fork material
AR Advanced 105 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the AR Advanced 105 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt AR Advanced 105 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Felt AR Advanced 105 bike has 6 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
