Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHC Advanced + TeXtreme carbon fiber, MMC with InsideOut construction, carbon fiber BB386 bottom bracket shell, 12 x 142mm Syntace style thru axle, flat mount disc brake standard, aluminum replaceable rear derailleur hanger, internal electronic-specific cable routing, and high-frequency vibration reducing seat post insert.
Suspension Fork
Felt Aero Road UHC Advanced + TeXtreme carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steerer tube, integrated crown race, crown and blades. Flat mount disc standard, 12 x 100mm thru axle
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Cockpit
Stem
AR integrated carbon with internal cable and hose routing -6¡ rise, ¯31.8mm, 48 - 51cm: 90mm, 54 - 56cm: 100mm, 58cm: 110mm, 61cm: 120mm
Headset
FSA integrated sealed cartridge bearings MR121 {870E-RS} Upper bearing and MR168 {970E-RS} lower bearing with integrated aero headset spacers and integrated top cover for use with non-integrated stem
Seat
Seatpost
Felt VariMount Aero Road UHC Advanced + TeXtreme carbon fiber with high-frequency vibration reducing insert, integrated battery holder, 350mm length*, 0/20mm offset *Seatpost can be cut to length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

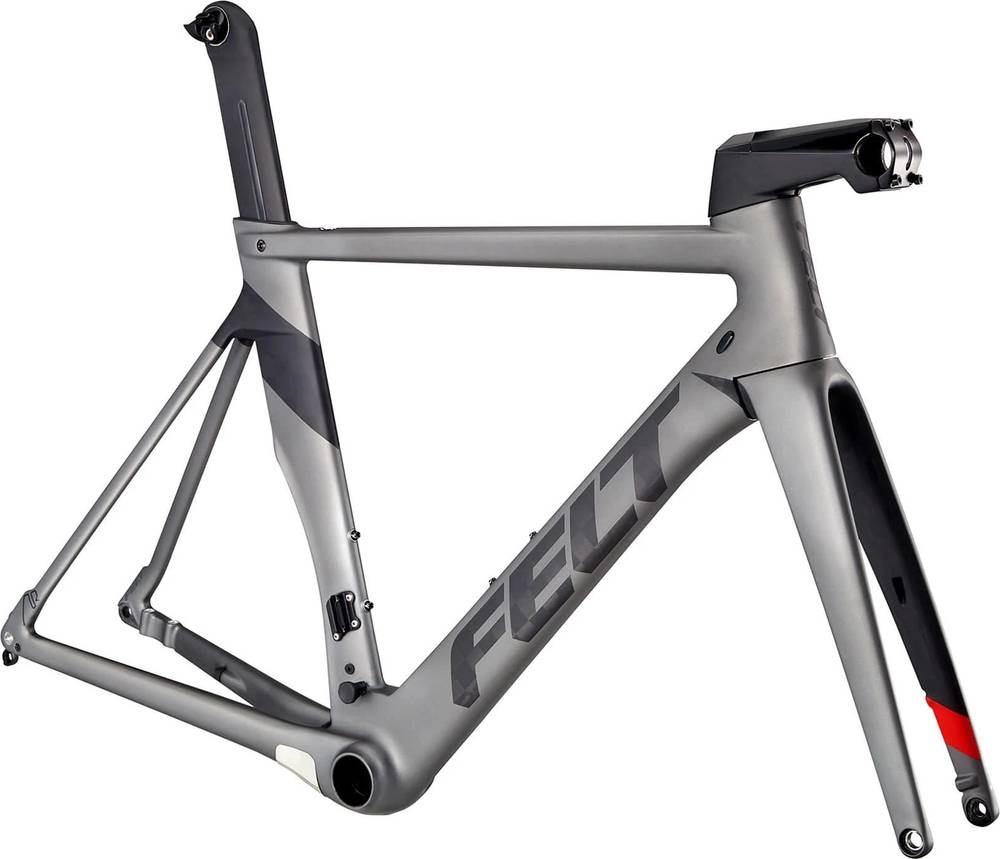

AR Advanced Frame is a Felt Ar model. There are 41 frames that carry this model name. Take a sneak peek at all Felt Ar frames models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero frames
According to our calculations, the average cost of an Aero frame that is reliable is 2657$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Felt released this model in 2020, its price was 3499$. Doing a quick comparison, we notice that AR Advanced Frame price is 31.69% higher than the average cost of an Aero frame.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
