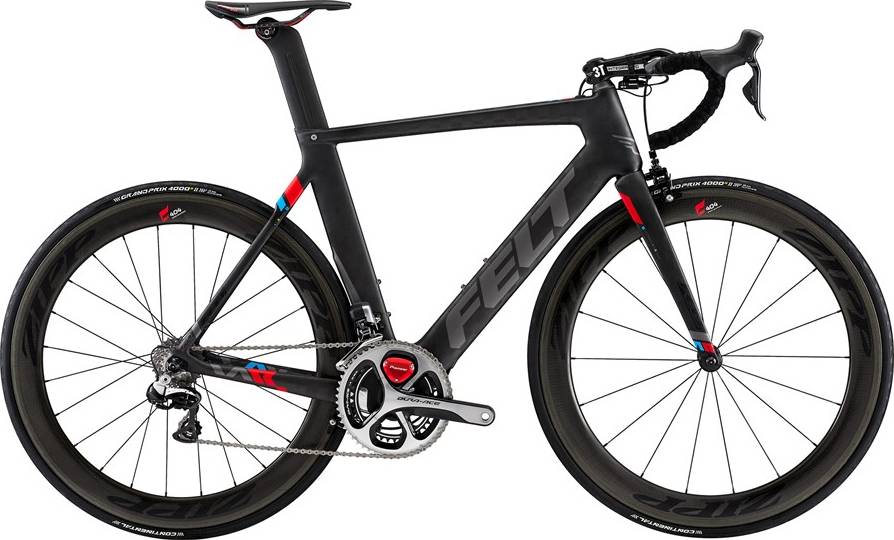

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHC Ultimate + TeXtreme® carbon fiber, MMC w/ InsideOut construction, carbon fiber BB30 & dropouts, 7075 CNC aluminum replaceable rear derailleur hanger, electronic-specific internal cable routing
Suspension Fork
Felt Aero Road UHC Ultimate + TeXtreme® carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steer tube w/ integrated crown race, crown, blades & dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 short cage
Front Derailleur
Shimano Dura Ace Di2 braze-on
Shift Levers
Shimano Dura Ace Di2 w/ secondary sprint shifters
Cassette
Shimano Dura Ace, 12-25T
Crank
Shimano Dura Ace w/ Pioneer Dual Leg Crank-arm power measurement 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm
Bottom Bracket
Wheels Manufacturing BB30 to Outboard Bottom Bracket for 24mm Cranks (Shimano) w/ Ceramic Bearings
Chain
Shimano Dura Ace 11-speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Zipp 404 Firestrike
Rear Hub
Zipp 404 Firestrike, 11-speed
Rims
Zipp 404 Firestrike carbon fiber
Spokes
Zipp 404 Firestrike
Tires
Continental Grand Prix 4000 S II, 700c x 23c
Brakes
Brakes
Front Brake: eecycleworks regular eebrake w/ carbon fiber rim brake pads/Rear Brake: eecycleworks DM eebrake w/ carbon fiber rim brake pads
Brake Levers
Shimano Dura Ace Di2
Cockpit
Stem
3T Integra LTD carbon fiber w/ titanium bolts, -10° rise, Ø31.8mm 48 - 51cm = 100mm 54 - 56cm = 110mm 58cm = 120mm 61cm = 130mm
Handlebar
3T Aerotundo LTD carbon fiber, 124mm reach, 145mm drop, Ø31.8mm 48 - 51cm = 400mm 54 - 56cm = 420mm 58 - 61cm = 440mm
Grips
Felt VelvetGel Tape
Headset
FSA No. 44 integrated, 1.125" - 1.25" sealed superlight cartridge bearing w/ carbon fiber 15mm cone spacer, 2 x 10mm carbon fiber headset spacer + 1 x 5mm carbon fiber headset spacer, Felt compression device, carbon fiber top cap & aluminum bolt
Seat
Saddle
Prologo Zero III C3 Nack
Seatpost
Felt VariMount Aero Road flip position UHC + TeXtreme carbon fiber, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 50 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 60 mm | 52 mm | 55 mm | 54 mm | 51 mm | 48 mm |
| Stack | 515 mm | 529 mm | 551 mm | 572 mm | 593 mm | 622 mm |
| Reach | 372 mm | 385 mm | 389 mm | 397 mm | 411 mm | 422 mm |
| Top Tube Length | 516 mm | 536 mm | 551 mm | 566 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 180 mm | 210 mm |
| Chainstay Length | 414 mm | 414 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 980 mm | 983 mm | 986 mm | 994 mm | 1009 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
AR FRD completes the Felt Ar model. There are 41 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 12499$. Doing a quick comparison, we notice that AR FRD price is 196.82% higher than the average cost of an Aero bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The AR FRD 2017 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt AR FRD is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
