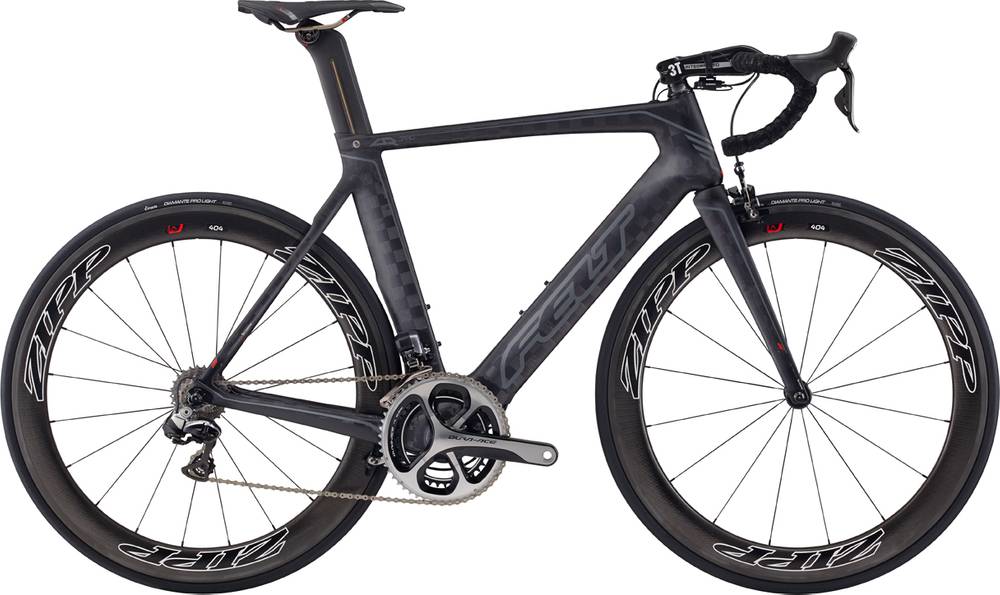

Felt AR FRD Di2 2014
2014 Road
Estimate price |
12,499$
Weight | 6.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHC Ultimate + TeXtreme® carbon fiber, MMC w/ InsideOut construction, carbon fiber BB30 & dropouts, 7075 CNC aluminum replaceable rear derailleur hanger, electronic-specific internal cable routing
Suspension Fork
Felt Aero Road UHC Ultimate + TeXtreme® carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steerer tube w/ integrated crown race, crown, blades & dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2
Front Derailleur
Shimano Dura-Ace Di2 braze-on
Shift Levers
Shimano Dura-Ace Di2 w/ secondary sprint shifters
Cassette
Shimano Dura-Ace, 12-25T
Crank
Shimano Dura-Ace 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm
Bottom Bracket
FSA Ceramic BB30 w/ 24mm spindle reducers
Chain
Shimano Dura-Ace 11-speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Zipp 404 Firecrest
Rear Hub
Zipp 404 Firecrest, 11-speed
Rims
Zipp 404 Firecrest carbon fiber
Spokes
Zipp 404 Firecrest
Tires
Vittoria Diamante Pro Light, 220tpi, 700 x 23c
Brakes
Brakes
Shimano Dura-Ace w/carbon fiber rim brake pads; F: dual pivot caliper, R: direct mount
Brake Levers
Shimano Dura-Ace Di2
Cockpit
Stem
3T Integra LTD carbon fiber w/ titanium bolts, -10° rise, Ø31.8mm 48 - 51cm = 100mm 54 - 56cm = 110mm 58cm = 120mm 61cm = 130mm
Handlebar
3T Tornova LTD carbon fiber, 83mm reach, 139mm drop, Ø31.8mm 48 - 51cm = 400mm 54 - 56cm = 420mm 58 - 61cm = 440mm
Grips
Felt VelvetGel Tape
Headset
FSA No. 44 integrated, 1.125" - 1.25" sealed superlight cartridge bearing w/ carbon fiber 15mm cone spacer, 2 x 10mm carbon fiber headset spacer + 1 x 5mm PC headset spacer, Felt compression device, carbon fiber top cap & aluminum bolt
Seat
Saddle
Prologo Zero II CPC Nack
Seatpost
Felt VariMount Aero Road flip position UHC carbon fiber, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 50 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 52 mm | 56 mm | 55 mm | 52 mm | 51 mm |
| Stack | 516 mm | 529 mm | 552 mm | 573 mm | 594 mm | 623 mm |
| Reach | 373 mm | 385 mm | 389 mm | 398 mm | 412 mm | 423 mm |
| Top Tube Length | 516 mm | 536 mm | 551 mm | 566 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 180 mm | 210 mm |
| Chainstay Length | 414 mm | 414 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 980 mm | 983 mm | 986 mm | 994 mm | 1009 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
AR FRD Di2 is a Felt Ar model. 41 bikes variations carry this model name so far. You can easily view all of the Felt Ar bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Felt released this model in 2014, its price was 12499$. Comparing this to the average Aero bike price, we see that the price is 196.82% higher.
Aero bikes average weight
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, AR FRD Di2 has a weight of 6.89 kg (15.19 lbs). In other words, this model is 6.53% lighter than the average Aero bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
AR FRD Di2 components
Fork material
AR FRD Di2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Felt AR FRD Di2 2014, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt AR FRD Di2 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
