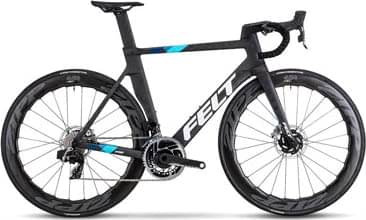

Felt AR FRD Ultimate RED eTap AXS 2022
2022 Road
Estimate price |
15,049$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 169cm
SM
166cm - 174cm
MD
171cm - 179cm
LG
176cm - 184cm
XL
181cm - 189cm
XXL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt AeroRoad 3.0 | UHC Ultimate + TeXtreme carbon fiber
Suspension Fork
Felt AeroRoad 3.0 | UHC Ultimate + TeXtreme carbon fiber
Drivetrain
Rear Derailleur
SRAM RED eTap AXS
Front Derailleur
SRAM RED eTap AXS, braze-on
Shift Levers
SRAM RED eTap AXS HRD
Cassette
SRAM RED XG-1290, 10-28T
Crank
SRAM RED, DUB, 48/35T
Bottom Bracket
Press-Fit | BB386
Chain
SRAM RED
Wheels
Rims
Carbon
Tires
Continental Grand Prix 5000 TL, 700x25c
Brakes
Brakes
SRAM RED eTap AXS HRD, hydraulic disc, flat mount
Disk Rotors
SRAM CenterLine XR, Center Lock, 160mm
Cockpit
Stem
Felt Sprint | UHC Advanced carbon fiber
Handlebar
ZIPP SL-70 AERO
Headset
IS (NO.44)
Seat
Saddle
Prologo Dimension 143 Nack
Seatpost
Felt AeroRoad IL 2.0 | UHC Advanced + TeXtreme carbon fiber
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.4 mm | 1.42 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 47 mm | 47 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 59 mm | 54 mm | 55 mm | 52 mm | 52 mm |
| Stack | 508 mm | 525 mm | 546 mm | 568 mm | 586 mm | 615 mm |
| Reach | 377 mm | 388 mm | 390 mm | 401 mm | 415 mm | 426 mm |
| Top Tube Length | 516 mm | 536 mm | 550 mm | 567 mm | 587 mm | 612 mm |
| Seat Tube Angle | 74.3 ° | 74.4 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 441 mm | 473 mm | 502.5 mm | 526 mm | 553 mm | 601 mm |
| Head Tube Angle | 71 ° | 72.1 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 97 mm | 111 mm | 130 mm | 150 mm | 167 mm | 197.5 mm |
| Chainstay Length | 415 mm | 415 mm | 417 mm | 417 mm | 417 mm | 419 mm |
| Wheelbase | 981 mm | 984 mm | 987 mm | 995 mm | 1010 mm | 1031 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 741 mm | 767 mm | 787 mm | 814 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 171 cm | 176 cm | 181 cm | 186 cm |
| Rider Max Height | 169 cm | 174 cm | 179 cm | 184 cm | 189 cm | 195 cm |
About this model
AR FRD Ultimate RED eTap AXS is a Felt Ar model. Felt launched 41 bikes of this model so far. You can easily view all of the Felt Ar bikes models from 2022, here.
Model range prices
Felt AR Advanced 105 2022 is the most affordable bike of this model and has a price of 4199$. On the other hand, Felt AR FRD Ultimate RED eTap AXS 2022, is the most expensive and costs 15049$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 15049$. Comparing this to the average Aero bike price, we see that the price is 257.37% higher.
Overview of components
Fork material
AR FRD Ultimate RED eTap AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the AR FRD Ultimate RED eTap AXS model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AR FRD Ultimate RED eTap AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
