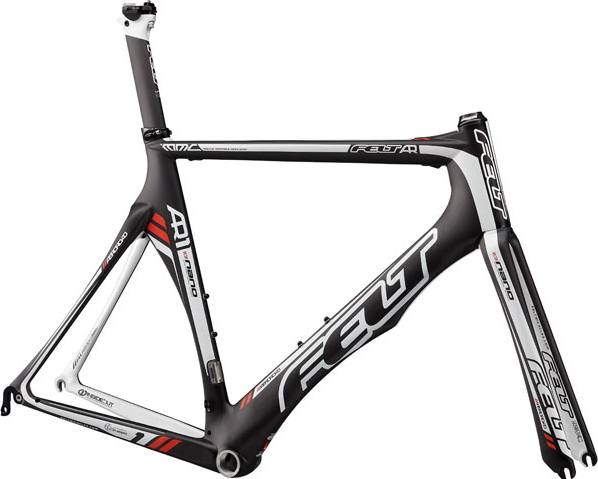

Felt AR1 Frame 2011
2011 Road
Estimate price |
3,499$
Weight | 1.1 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHC Ultimate + Nano MMC Carbon Fiber Frame w/ 1.5KP Weave, InsideOut Internal Molding Process, Di2 Optimized Internal Cable Routing, Carbon Fiber dropouts & 7075 CNC machined replaceable derailleur hanger
Suspension Fork
Felt AR UHC Ultimate + Nano 100% Carbon Fiber Monocoque Fork; Carbon 1.125 Steerer tube, Crown, Blades, and Dropouts
Cockpit
Headset
FSA Integrated, w/ Aluminum 25mm Conical Spacer, 2 X 10mm Aluminum Headset Spacers, Felt Carbon Fiber Top Cap & 7075 Anodized Aluminum Bolt
Seat
Seatpost
Felt Aero UHC Advanced Carbon Fiber Standard Offset Bladed Monocoque Design, Length = 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.441 mm | 1.46 mm | 1.437 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 581 mm | 584 mm | 598 mm | 620 mm |
| Rake | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Stack | 519.5 mm | 540.3 mm | 561.6 mm | 580.8 mm | 601.7 mm |
| Reach | 384.8 mm | 385.9 mm | 389.6 mm | 397.7 mm | 418.8 mm |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 412 mm | 412 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 983 mm | 989 mm | 1002 mm | 1025 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 749 mm | 774 mm | 794 mm | 798 mm | 816 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
AR1 Frame is a Felt Ar1 model. Felt released 16 frames variations of this model so far. Check out the entire range from 2011 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero frames average price
According to our calculations, the average cost of an Aero frame that is reliable is 2657$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Felt released this model in 2011, its price was 3499$. Comparing this to the average Aero frame price, we see that the price is 31.69% higher.
Average weight for Aero frames
Aero frames weigh an average of 1.79 kg (3.95 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 1.1 kg (2.43 lbs), the AR1 Frame model is much lighter than average. In short, the average Aero frame weight is 62.73% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
AR1 Frame components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
