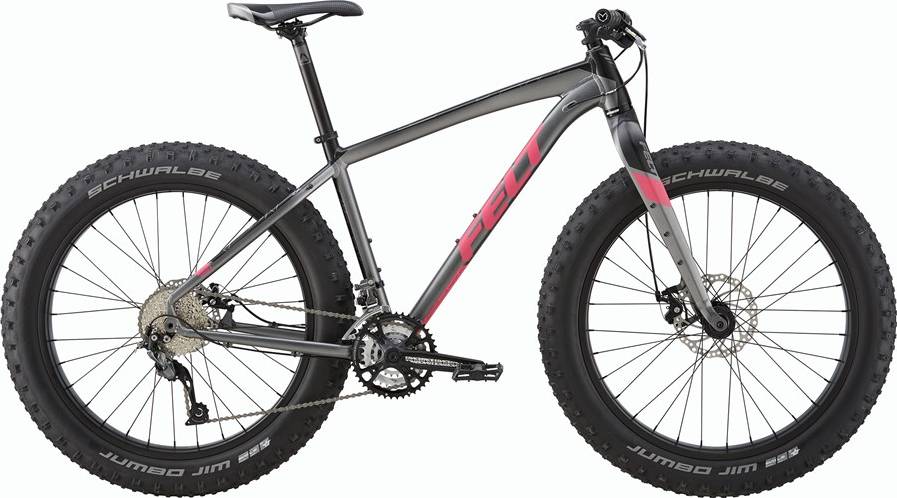

Felt DD 70 2017
2017 Mountain
Estimate price |
1,299$
Weight | 15.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Alivio, SLX -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Fat, double butted 6061 aluminum, Hydroform, ControlTaper integrated head tube, post disc mount, replaceable derailleur hanger, 100mm threaded bottom bracket, 190mm OLD, Ø30.9mm seatpost, Ø34.9mm clamp adaptor for high direct type front derailleur mount
Suspension Fork
Felt Fat hydroformed 6061 aluminum, tapered steerer, 150 x 15mm front axle, post-mount, rack mounts
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio 9-speed, long cage
Front Derailleur
Shimano SLX, high direct mount
Shift Levers
Shimano Deore 3x9
Cassette
Sunrace CSM96, 9-speed, 11-36T
Crank
Race Face Ride SM - 170mm MD/LG - 175mm
Bottom Bracket
Race Face 100mm
Chain
Sunrace M94
Chain Guide
N/A
Pedals
Low-profile nylon platform
Wheels
Front Hub
Forged Aluminum fat hub, 15x150
Rear Hub
Forged Aluminum fat hub, 12x197
Rims
Single-wall, 80mm inside, 26"
Spokes
2.0mm stainless
Tires
Schwalbe Jumbo Jim EVO, folding, 26 x 4.0
Brakes
Brakes
Front: Tektro Novella mechanical disc, 180mm rotor, Rear: Tektro Novella mechanical disc, 160mm rotor
Brake Levers
Tektro TS360A
Cockpit
Stem
Felt MTB 3D-forged threadless 1-1/8"" +/- 7° rise for Ø31.8mm handlebar w/ Cr-Mo bolts: SM - 60mm MD - 70mm LG - 80mm
Handlebar
Felt MTB 6061 Flat top, Ø31.8mm, 5mm rise x 9° sweep (760mm)
Grips
Felt Wing Grip, double-density
Headset
FSA NO.57E/62 semi Integrated internal upper cup, external lower cup w/5.3mm custom cone spacer
Seat
Saddle
Felt MTB performance
Seatpost
Felt butted 6061, dual-bolt micro-adjust 15mm offset, Ø30.9 SM (350MM) MD/LG (400MM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.4 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm |
| Front Center | 642 mm | 673 mm | 704 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 77 mm | 77 mm |
| Stack | 605 mm | 619 mm | 634 mm |
| Reach | 402 mm | 428 mm | 454 mm |
| Top Tube Length | 586 mm | 616 mm | 646 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 470 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1096 mm | 1126 mm | 1157 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
DD 70 belongs to the Felt Dd model. 8 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Felt DD 70 2017 has a starting price of 1299$. Felt DD 10 2017 on the other hand is the most expensive at 2499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Fatbike bikes
According to our math, the average price for a trustworthy Fatbike bike is 1743$. However, you could also get a good Fatbike bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Felt released this model in 2017, its price was 1299$. Doing a quick comparison, we notice that DD 70 price is 34.18% smaller than the average cost of a Fatbike bike.
Average weight for Fatbike bikes
On a deeper look, we notice that the average weight of a Fatbike bike is 13.2 kg (29.1 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
DD 70 weighs 15.68 kg (34.57 lbs) and is much heavier than the average. In short, the average Fatbike bike weight is 18.79% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the DD 70 model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
