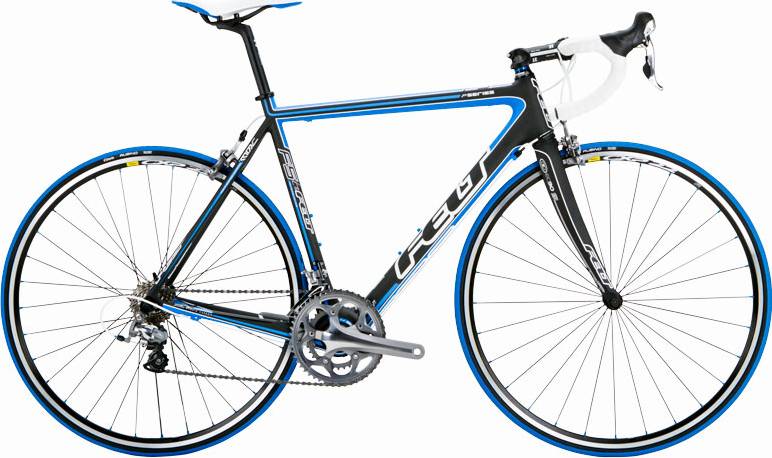

Felt F5 LTD 2011
2011 Road
Estimate price |
2,299$
Weight | 7.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Road UHC Performance MMC Carbon Fiber Frame w/ 3KP Weave, InsideOut Internal Molding Process, BB30 Shell, External Cable Routing, Carbon Fiber dropouts & Forged replaceable derailleur hanger, 907g
Suspension Fork
Felt UHC Advanced 100% Carbon Fiber Monocoque Fork w/ 3KP Weave; ControlTaper 1.125” - 1.5” Steerer tube, Crown, Blades, and Dropouts, 370g
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105 SS Short Cage
Front Derailleur
Shimano 105 braze-on, double
Shift Levers
Shimano 105 STI, 20-Speed
Cassette
Shimano 105 Cassette, 11-25T
Crank
Shimano 105, 50/34T; 48cm=165mm, 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm
Bottom Bracket
FSA BB30 Bearings w/ 24mm Adaptor for Hollowtech II Crankset
Chain
Shimano 105 10-Speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt TTR3 Sealed Bearing CNC Machined 7075 Aluminum 28H w/ Cr-Mo Quick Release Skewer
Rear Hub
Felt TTR3 Sealed Bearing CNC Machined 7075 Aluminum 32H w/ Cr-Mo Quick Release Skewer
Rims
MAVIC CXP-22S Aluminum Rim w/ Machined UB Control Braking Surface & Wear Indicator laced 3-Cross Rear, Radial 0-Cross Front
Spokes
Stainless Steel Bladed, Butted 2.0/0.9 x 2.3/1.8mm w/ Aluminum Nipples
Tires
Vittoria Rubino, 700c x 23c
Brakes
Brakes
Shimano 105 Super SLR Dual Pivot w/ Cartridge Brake Shoes
Brake Levers
Shimano 105 STI
Cockpit
Stem
3T ARX Pro 2010 Aluminum 3D Forged Ø31.8mm Bar Clamp, Stainless steel bolts, 150g, 48cm=80mm, 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm.
Handlebar
3T Ergosum 6061 Butted Aluminum w/ Ergonomic Drop, Ø31.8mm, 48cm-51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm
Grips
Felt Gel Ribbon Cork Tape w/ Felt 3D Logo
Headset
FSA NO.42 1.125 - 1.5 Integrated, w/ Aluminum 15mm Conical Spacer, 2 X 10mm Aluminum Headset Spacer, 1 x 5mm Aluminum Headset Spacer, Felt Aluminum Top Cap & 7075 Anodized Aluminum Bolt
Seat
Saddle
fi'zi:k Pave Team Road Saddle Design w/ Ergonomic dip platform, SLIPSTREAM TEAM ISSUE, Embossed Cover & Hollow Cr-Mo rails w/ Rail Scale w/ I.C.S.
Seatpost
3T Dorico Pro Forged 6061 Aluminum 2-bolt Design, Ø27.2mm, 280mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.351 mm | 1.349 mm | 1.352 mm | 1.38 mm | 1.381 mm | 1.449 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 578 mm | 580 mm | 588 mm | 604 mm | 622 mm |
| Rake | 52 mm | 50 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Stack | 500 mm | 514 mm | 526 mm | 548 mm | 569 mm | 607 mm |
| Reach | 370 mm | 381 mm | 389 mm | 397 mm | 412 mm | 419 mm |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 403 mm | 403 mm | 405 mm | 405 mm | 407 mm | 410 mm |
| Wheelbase | 969 mm | 971 mm | 974 mm | 983 mm | 1000 mm | 1022 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 681 mm | 717 mm | 750 mm | 770 mm | 796 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
F5 LTD is part of the Felt F5 model. There are 9 bikes that carry this model name. You can easily view all of the Felt F5 bikes models from 2011, here.
Model range prices
The most economical model, the Felt F5 2011 has a starting price of 2099$. Felt F5 Special Edition 2011 on the other hand is the most expensive at 2299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Felt F5 LTD price was 2299$. Doing a quick comparison, we notice that F5 LTD price is 45.72% smaller than the average cost of a Race bike.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Felt F5 LTD it’s weighing 7.89 kg (17.39 lbs). At this weight, is much heavier than average. In conclusion, the average Race bike weighs 15.69% less than F5 LTD.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Felt F5 LTD 2011, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The F5 LTD has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
