Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
47cm
152cm - 168cm
51cm
166cm - 174cm
54cm
172cm - 180cm
56cm
177cm - 186cm
58cm
183cm - 192cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Race Road UHC Advanced + TeXtreme® carbon fiber, MMC with InsideOut construction, carbon fiber BB386 bottom bracket shell and carbon fiber dropouts, 7075 CNC aluminum replaceable rear derailleur hanger, wireless-specific cable routing.
Suspension Fork
Felt Race Road UHC Ultimate + TeXtreme carbon fiber monocoque construction, size specific ControlTaper carbon fiber steer tube with integrated compression device and carbon fiber crown race, crown, blades and dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM RED eTap
Front Derailleur
SRAM RED eTap braze-on
Shift Levers
SRAM RED eTap with Blip remotes
Cassette
SRAM XG 1190, 11-28T
Crank
SRAM RED 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm
Bottom Bracket
FSA PressFit ceramic BB30 catridge bearings
Chain
SRAM Red 22
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
MAVIC Ksyrium Pro 18h
Rear Hub
MAVIC Ksyrium Pro 24h, 11-speed
Rims
MAVIC Ksyrium Pro Carbon SL C
Spokes
MAVIC Zicral straight pull, bladed, front double butted with Fore integrated aluminum
Tires
MAVIC Yksion Pro GripLink (front) & PowerLink (rear), 700c x 25c
Brakes
Brakes
Front: SRAM RED, Rear: TRP 850-1 direct mount
Brake Levers
SRAM RED eTap
Cockpit
Stem
3T ARX II Team Stealth, ±6° rise, Ø31.8mm 43 - 47cm = 80mm 51cm = 90mm 54 - 56cm = 100mm 58cm = 110mm 61cm = 120mm
Handlebar
3T Ergosum Team Stealth carbon fiber, 89mm reach, 128mm drop, Ø31.8mm 43 - 51cm = 400mm 54 - 56cm = 420mm 58 - 61cm = 440mm
Grips
Felt VelvetGel Tape with 3M Reflective Base
Headset
43 - 47cm: FSA IS-21 integrated, 1.125"" sealed cartridge bearing ; 51 - 54cm: FSA NO.382, 1.125""- 1.25"" sealed cartridge bearing; 56 - 61cm: FSA NO.38/42, 1.125"" - 1.5"" sealed cartridge bearing ; with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1 x 10mm + 2 x 5mm PC headset spacers, Felt carbon fiber top cap and aluminum bolt
Seat
Saddle
Prologo Nago NAGO EVO PAS CPC TiRox
Seatpost
3T Stylus 25 Team Stealth, Ø27.2mm 48 - 51cm = 280mm 54 - 61cm = 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.44 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 577 mm | 585 mm | 591 mm | 606 mm | 621 mm |
| Rake | 52 mm | 47 mm | 47 mm | 43 mm | 43 mm | 43 mm |
| Trail | 59 mm | 58 mm | 54 mm | 55 mm | 53 mm | 52 mm |
| Stack | 503 mm | 521 mm | 541 mm | 563 mm | 585 mm | 612 mm |
| Reach | 360 mm | 368 mm | 376 mm | 385 mm | 396 mm | 405 mm |
| Top Tube Length | 503 mm | 521 mm | 539 mm | 554 mm | 574 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 525 mm | 555 mm | 595 mm |
| Head Tube Angle | 71.5 ° | 72.25 ° | 73 ° | 73.5 ° | 73.75 ° | 74 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm | 155 mm | 177 mm | 205 mm |
| Chainstay Length | 394 mm | 394 mm | 396 mm | 396 mm | 398 mm | 401 mm |
| Wheelbase | 958 mm | 960 mm | 971 mm | 977 mm | 994 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 667 mm | 701 mm | 738 mm | 758 mm | 781 mm | 819 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 172 cm | 177 cm | 183 cm | 187 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 186 cm | 192 cm | 196 cm |

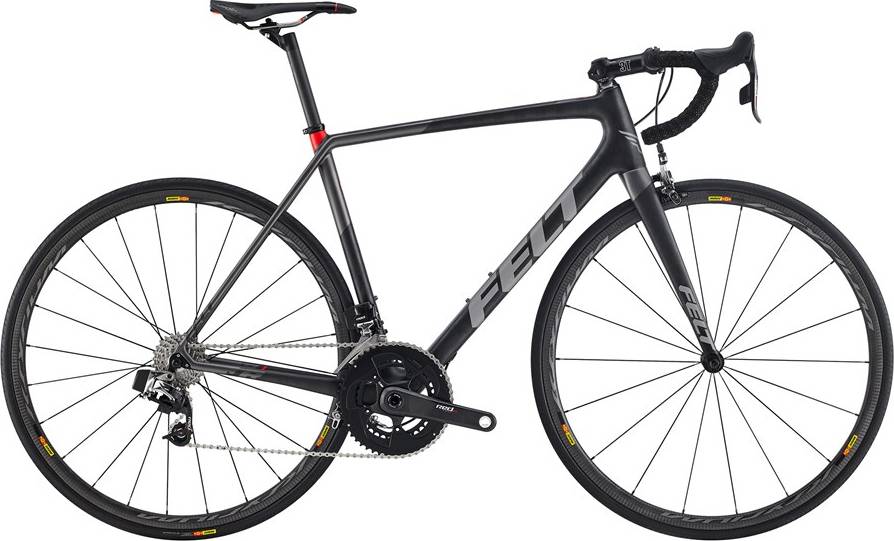

Model Overview
FR1 completes the Felt Fr1 model. 8 bikes variations carry this model name so far. Take a sneak peek at all Felt Fr1 bikes models from 2017, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Felt released this model in 2017, its price was 8999$. In conclusion, this bike price is 168.63% more expensive than the price of the average Race bike.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 6.34 kg (13.98 lbs), the FR1 model is a bit lighter than average. In other words, this model is 7.57% lighter than the average Race bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
FR1 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Felt FR1 2017, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FR1 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
