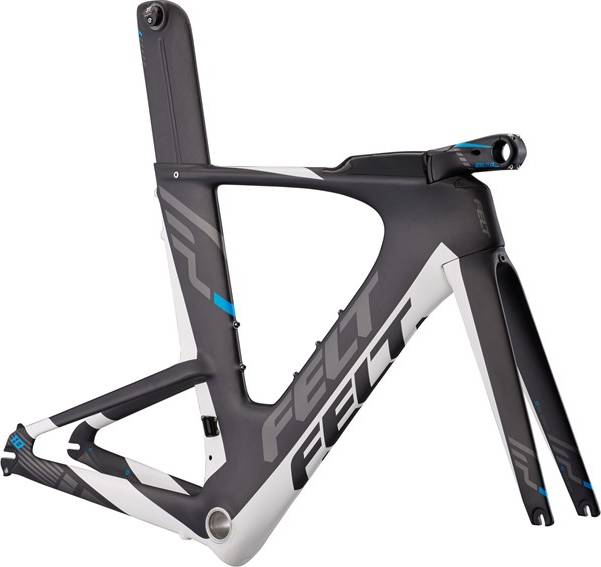

Felt FRAMESET: IA 10 2017
2017 Road
Estimate price |
2,499$
Weight | 3.22 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Integrated Aero TT / Tri UHC Performance carbon fiber, MMC with InsideOut construction, BB30 and carbon horizontal dropouts with integrated chain tensioners, aerodynamically optimized for direct mount rear brake, internal cable routing (mechanical an
Suspension Fork
Felt UHC Performance carbon fiber monocoque construction, 1.125" carbon fiber steer, blades, dropouts, crown, aerodynamically optimized for a conventional brake
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
n/a
Crank
n/a
Bottom Bracket
n/a
Chain
n/a
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
n/a
Rear Hub
n/a
Spokes
n/a
Tires
n/a
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
Felt Tri155
Handlebar
n/a
Grips
n/a
Headset
FSA IS Integrated, 1.125" sealed ACB cartridge bearings with Felt compression device
Seat
Saddle
n/a
Seatpost
Felt Vibration Reducing Aero Tri UHC Advanced carbon fiber with 3T DiffLock™ Comfort Module internals, 300mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.24 mm | 1.26 mm | 1.26 mm | 1.26 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 570 mm | 591 mm | 601 mm | 626 mm | 652 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 61 mm | 62 mm | 62 mm | 62 mm |
| Stack | 471 mm | 493 mm | 517 mm | 541 mm | 563 mm |
| Reach | 384 mm | 399 mm | 410 mm | 428 mm | 447 mm |
| Top Tube Length | 471 mm | 494 mm | 514 mm | 542 mm | 571 mm |
| Seat Tube Angle | 79.5 ° | 79 ° | 78.5 ° | 78 ° | 77.5 ° |
| Seat Tube Length | 489 mm | 512 mm | 538 mm | 563 mm | 586 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 63 mm | 86 mm | 109 mm | 134 mm | 157 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
| Wheelbase | 962 mm | 984 mm | 994 mm | 1020 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 737 mm | 759 mm | 783 mm | 807 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
FRAMESET: IA 10 is a Felt Ia model. Felt released 58 frames variations of this model so far. You can easily view all of the Felt Ia frames models from 2017, here.
Model range prices
Felt FRAMESET: IA 10 2017 is the most affordable frame of this model and has a price of 2499$. On the other hand, Felt FRAMESET: IA FRD 2017, is the most expensive and costs 6999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Triathlon frames average price
According to our math, the average price for a trustworthy Triathlon frame is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Felt FRAMESET: IA 10 price was 2499$. If we compare this with the average Triathlon frame cost we notice that the price is 23.61% smaller.
Triathlon frames average weight
Triathlon frames weigh an average of 2.23 kg (4.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Felt FRAMESET: IA 10 it’s weighing 3.22 kg (7.1 lbs). At this weight, is much heavier than average. To sum up, it’s 44.39% heavier than the average weight of Triathlon frames.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
