Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components

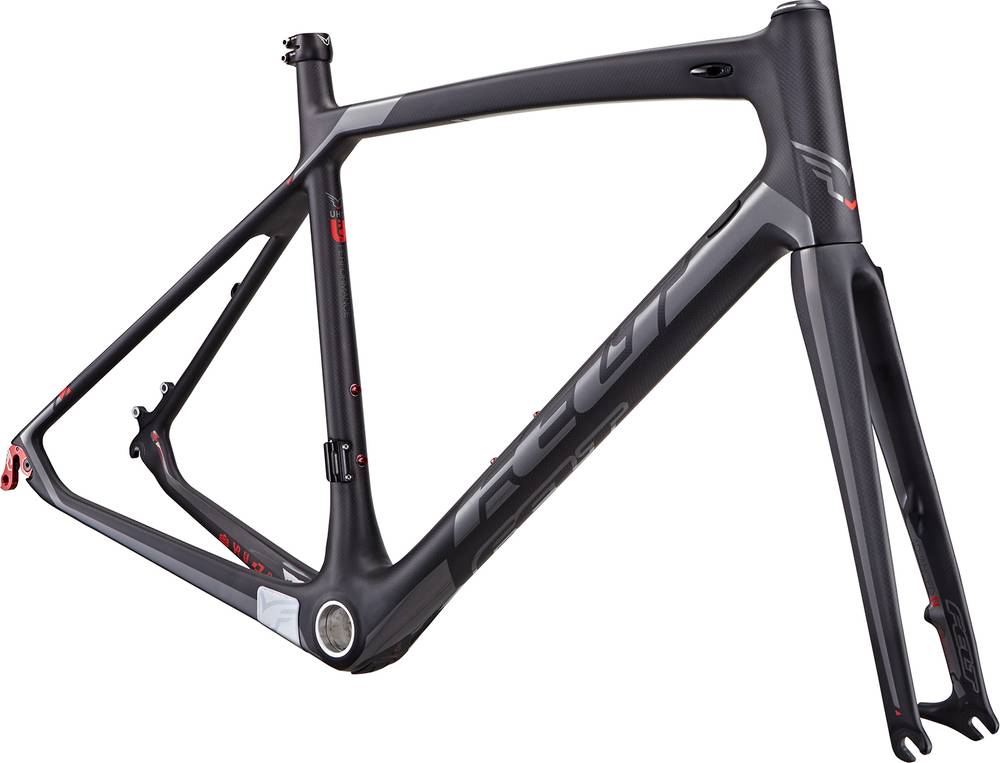

Frame
Frame
Felt Endurance Road Disc UHC Performance carbon fiber, MMC w/ InsideOut construction, BB30,carbon fiber dropouts, replaceable rear derailleur hanger, IS disc mount, electronic compatible internal cable routing (mechanical compatible)
Suspension Fork
Felt Endurance Road Disc UHC Performance carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" carbon fiber steer tube w/ integrated crown race, crown, blades w/ 140mm post mount disc tabs & dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
n/a
Crank
n/a
Bottom Bracket
FSA BB30 w/ 24mm spindle reducers
Chain
n/a
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
n/a
Rear Hub
n/a
Spokes
n/a
Tires
n/a
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
n/a
Handlebar
n/a
Grips
n/a
Headset
n/a
Seat
Saddle
n/a
Seatpost
n/a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.49 mm | 1.53 mm | 1.52 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 583 mm | 595 mm | 605 mm | 615 mm | 635 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 54 mm | 54 mm | 55 mm | 55 mm |
| Stack | 543 mm | 563 mm | 582 mm | 602 mm | 621 mm |
| Reach | 375 mm | 386 mm | 390 mm | 394 mm | 408 mm |
| Top Tube Length | 527 mm | 547 mm | 562 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 992 mm | 1004 mm | 1014 mm | 1024 mm | 1044 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 700 | 729 mm | 749 mm | 769 mm | 797 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
FRAMESET: Z2 Disc completes the Felt Z2 model. 9 frames variations carry this model name so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2015 and its price was 1649$. Comparing the average cost of a Race frame to this one, you will see that FRAMESET: Z2 Disc price is 48.27% lower.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
