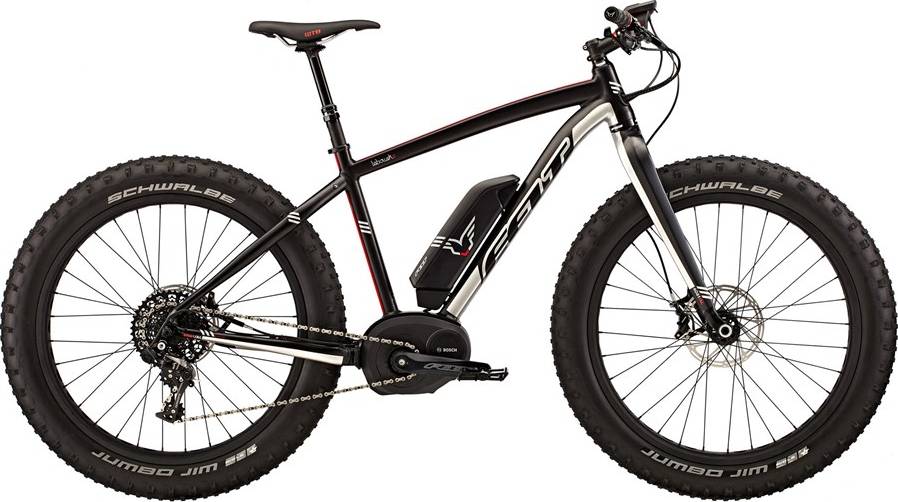

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset X1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Electric MTB Fat Tire, Bosch-specific, double-butted 6061 aluminum, ControlTaper headtube, full internal cable routing, 190 x 12mm Maxle dropouts, disc-brake specific, rear kickstand mount
Suspension Fork
Felt Fat Tire Specific Rigid Alloy Taper Steerer, Hydroformed lowers 150×15 Maxle-style dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM X1 11-speed
Front Derailleur
n/a
Shift Levers
SRAM X1 11-speed trigger shifter
Cassette
SRAM CS-XG1180 11-speed cassette, 10-42T
Crank
Felt Electric MTB Bosch-specific crankset, forged aluminum, 18T cog: S = 170m M/L = 175mm
Bottom Bracket
Bosch Performance eDrive Unit, 350W output, 20 mph
Chain
SRAM PC-X1 X-Sync w/ Powerlock
Chain Guide
n/a
Pedals
MTB aluminum body & cage, toe clip compatible
Wheels
Front Hub
Forged aluminum 150 x 15mm thru axle, 32H: sealed cartridge bearing, 6-bolt disc mount
Rear Hub
Forged aluminum 11-speed cassette, 12 x 197mm, 32H rear: sealed cartridge bearing, 6-bolt disc mount
Rims
Felt double-wall Fat Tire: 26"x 80mm w/ machined cut-outs
Spokes
2.0 / 1.8mm double-butted stainless steel
Tires
Schwalbe Jumbo Jim Evolution, LiteSkin, folding, 26 x 4.0" w/ presta valve tubes
Brakes
Brakes
Front Brake: SRAM Guide R hydraulic w/ 4-piston caliper: 180mm 6-bolt Centerline rotor/Rear Brake: SRAM Guide R hydraulic w/ 4-piston caliper: 180mm 6-bolt Centerline rotor
Brake Levers
SRAM Guide R hydraulic
Cockpit
Stem
Felt MTB SL design 3D-forged aluminum w/ 4-bolt handlebar clamp, 1-1/8" threadless: Ø31.8mm handlebar, 7° rise, w/ black Cr-Mo hardware S = 80mm M = 90mm L = 100mm
Handlebar
Felt MTB 6061 butted aluminum riser: Ø31.8mm, 15mm rise x 9° sweep, 720mm width
Grips
Felt XC trail single aluminum clamp lock-on, wing-style
Headset
FSA No.57 1.125" - 1.5" Aheadset: ACB water sealed bearings, w/ Felt Tornado aluminum top cap, custom 1 x 12,3mm curved, 2 x 5mm straight washers
Seat
Saddle
WTB Silverado Race: w/ DNAX padding & Cr-Mo rails
Seatpost
RockShox Reverb Stealth dropper post w/ internal remote cable routing, Ø30.9mm: S = 355mm M = 380mm L = 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm |
| Front Center | 642.6 mm | 673.3 mm | 704 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 77 mm | 77 mm |
| Stack | 609 mm | 623 mm | 637 mm |
| Reach | 401 mm | 427 mm | 453 mm |
| Top Tube Length | 586 mm | 616 mm | 646 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 469.9 mm | 533.4 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 501 mm | 501 mm | 501 mm |
| Wheelbase | 1136 mm | 1166 mm | 1197 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 726 mm | 779 mm | 831 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
Lebowsk-e 10 is part of the Felt E Lebowsk E model. 3 e-bikes variations carry this model name so far. Take a sneak peek at all Felt E Lebowsk E e-bikes models from 2017, by clicking here.
Model range prices
Felt Lebowsk-e 10 2017 is the cheapest e-bike model and costs 4999$. Felt Lebowsk-e 20 2017 is the most expensive one and costs 4999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike e-bikes
If you want an acceptable Fatbike e-bike you should know that the average price is 2033$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2017 and its price was 4999$. In conclusion, this e-bike price is 145.89% more expensive than the price of the average Fatbike e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Felt Lebowsk-e 10 2017, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lebowsk-e 10 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Lebowsk-e 10. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
