Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 140mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

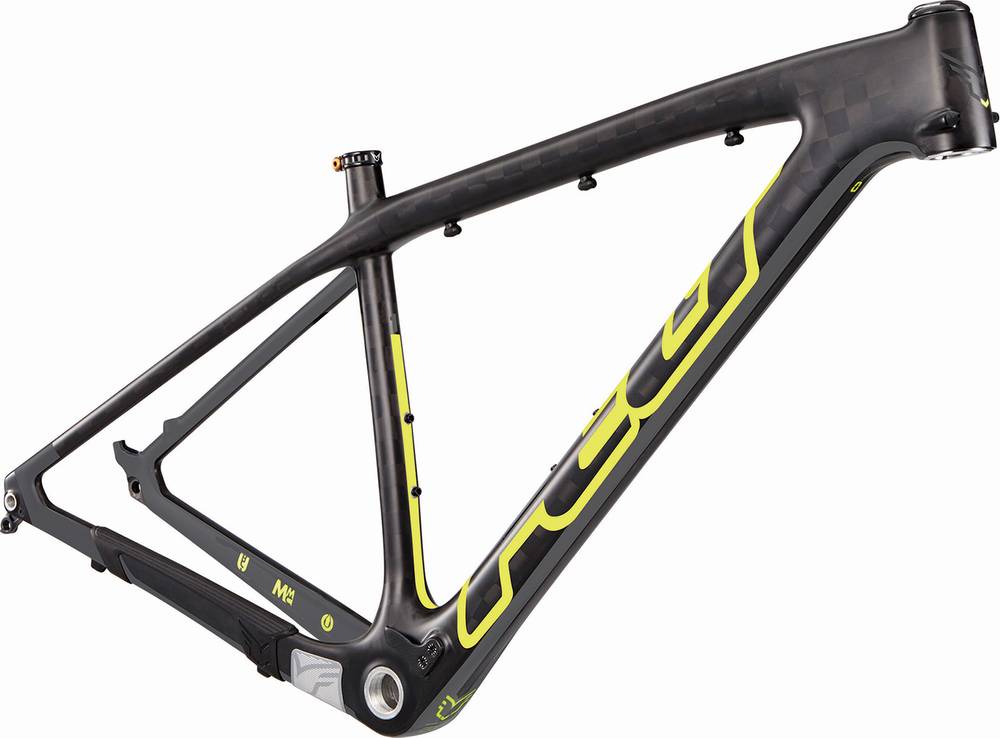

Felt XC, UHC Advanced + TeXtreme carbon fiber, MMC w/ InsideOut construction, full carbon dropouts, ControlTaper head tube, Kevlar chain watcher, replaceable derailleur hanger, 140mm post disc mounts, standard 73mm threaded bottom bracket, Syntace style12x142mmm through axle, internal derailleur cable routing, Ø27.2mm seatpost, Ø34.9mm high clamp front derailleur mount
Suspension Fork
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
n/a
Crank
n/a
Bottom Bracket
n/a
Chain
n/a
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
n/a
Rear Hub
n/a
Spokes
n/a
Tires
n/a
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
n/a
Handlebar
n/a
Grips
n/a
Headset
FSA No. 42 1-1/8" to 1.5" For tapered head tube
Seat
Saddle
n/a
Seatpost
n/a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" | 20" | 22" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm | 1.5 mm | 1.47 mm | 1.42 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 617 mm | 632 mm | 652 mm | 672 mm | 695 mm |
| Rake | 51 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 600 mm | 623 mm | 632 mm | 642 mm | 651 mm |
| Reach | 385 mm | 403 mm | 420 mm | 437 mm | 457 mm |
| Top Tube Length | 567 mm | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1056 mm | 1071 mm | 1091 mm | 1111 mm | 1134 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 686 mm | 721 mm | 767 mm | 801 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Nine 1 Frameset belongs to the Felt Nine model. 66 frames variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Felt Nine 1 Frameset 2015 is the most economical model, with a starting price of 1649$. Felt Nine FRD Frameset 2015 on the other hand costs 2999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail frames average price
If you want an acceptable Trail frame you should know that the average price is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2015 for 1649$. In conclusion, this frame price is 5.28% lower than the price of the average Trail frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Nine 1 Frameset components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
