Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

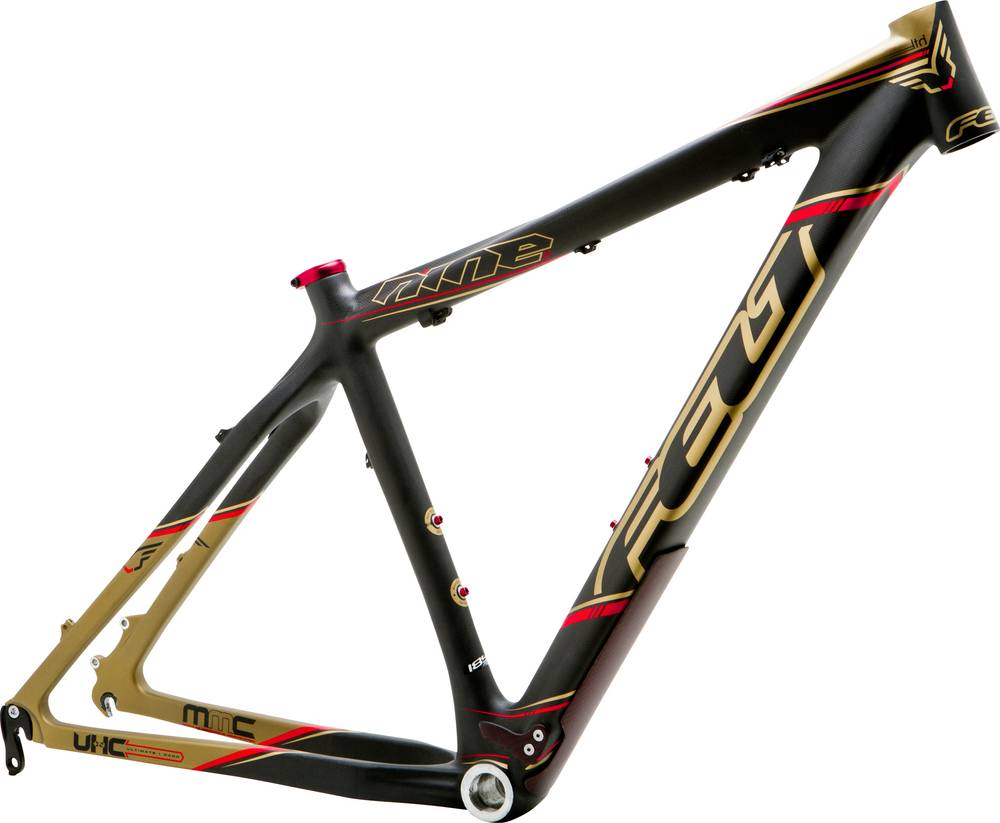

Felt Nine carbon XC series 29'er frame, UHC Ultimate plus Nano carbon fiber, featuring Insideout internally optimized molding process: modular monocoque construction 1 piece full carbon dropouts, hi clearance seat and chainstay yokes. ""dingle guard"" replaceable kevlar. down tube protector, bolt on kevlar chain watcher. integrated headset, IS disc mounts, replaceable derailleur hanger
Suspension Fork
n/a
Cockpit
Headset
Fully Integrated 1-1/8"" Aheadset: Cane Creek sealed cartridge bearing, w/ Carbon top cap, custom curved 1 x 15mm, 2 X 10mm carbon headset spacer, 1 x 5mm aluminum headset spacer, Felt Tornado top cap & 2024 anodized aluminum bolt
Seat
Seatpost
n/a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16.5" | 18.5" | 20.5" |
|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 650 | 665 mm |
| Rake | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 592 mm | 612 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 419 mm | 467 mm | 518 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1069 mm | 1089 mm | 1104 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 755 mm | 790 mm | 819 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
Nine LTD Frame Kit completes the Felt Nine model. There are 66 frames that carry this model name. You can get a glimpse at all models from 2012, by clicking on this link.
Model range prices
Felt Nine Solo Frame Kit 2012 is the most affordable frame of this model and has a price of 599$. On the other hand, Felt Nine LTD Frame Kit 2012, is the most expensive and costs 2399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2399$. Doing a quick comparison, we notice that Nine LTD Frame Kit price is 42.04% higher than the average cost of a Crosscountry frame.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
