Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Q Series 6061 butted Aluminum, Dynaform Top and Down Tube: oversized Semi-Integrated Head Tube, Replaceable Derailleur Hanger, Rack & Fender Mount, Disc Brake Specific
Suspension Fork
SR Suntour SF11-XCT-V3-MLO 100mm Travel: Mechanical lockout. Hi-Ten 1-1/8 Steer Tube, Forged + CNC 6061 Crown, Hi-Ten 28mm Stanchion,New Spring seal, 126mm Pitch, Leading Axle, One-Piece Aluminum Lower + Brace, Two Sides Coil Spring + MCU with Preload Adjust, Disc Brake Specific lowers
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Alivio: RD-M410
Front Derailleur
Shimano FD-M310
Shift Levers
Shimano ST-EF51: EZ-Fire Shifer/Brake lever 8 speed
Cassette
Shimano CS-HG40 8-speed 11-32
Crank
CW9-XCT-V2-T302:-PBG crankset with forged Alloy arms 8-speed with Interchangable steel chainrings 42T/32T/22T 48mm Chainline with black chainguard, Lengths: 13.5-15.5=170mm; 17.5-21.5=175mm
Bottom Bracket
Sealed Cartridge
Chain
KMC Z72 8-speed
Chain Guide
n/a
Pedals
VP 992-S Steel Cage with PP Body
Wheels
Front Hub
Forged Aluminum, for Disc Brake: with Alloy Quick-Release Lever 32 Hole
Rear Hub
Forged Alloy For Disc Brake, 8/9 speed Cassette Type: 32H, with Alloy Quick Release
Rims
doublewall Aluminum for Disc Brake: 26 x 1.5 x 32H
Spokes
Stainless 14g with Brass Nipples
Tires
FELT TAR All Trail: 26 x 2.1 30TPI Wire Bead, with Shraeder valve Tubes
Brakes
Brakes
Tektro IO Mechanical Disc Brake: Single Piston, 180mm front/ 160mm rear Stainless Steel Round Rotor
Brake Levers
2 Finger with Shifter
Cockpit
Stem
Felt MTB oversized 3D-Forged Design: 4-Bolt Handlebar Clamp, with Hole in Front Clamp, 1-1/8 Threadless, for 31.8mm Handlebar, 7 Degree Rise, with CP Cromo hardware Sizes; 13.5-17.5=90mm;19.5-21.5=110mm
Handlebar
Felt MTB XC Riser bar: Plain guage 6061 Aluminum 31.8mm bar bore,Widths: 13.5=580mm, 15.5=580mm 17.5=580mm, 19.5=600mm, 21.5=620mm.
Grips
Felt double-density wing grips: Kraton rubber base, Pruven rubber center, Color matched
Headset
Semi-Integrated 1-1/8 Aheadset: Steel Cups, Caged Bearing, with Felt Tornado Alloy Top Cap, Custom Curved 1 x 15mm + 2 x 5mm Straight Washers
Seat
Saddle
Felt Mountain Design: Low Side Profile Look with Comfort Fit Top, double-Density Base, Satin Steel Rails
Seatpost
Felt Alloy Micro-Adjust: 6061 Alloy Low-Profile Forged Head & Extruded Rail Clamps, Sizes: 13.5-15.5 =30.9mm x 350mm , 17.5-21.5 =30.9mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 612 mm | 633 mm | 663 mm | 683 mm | 704 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 170 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1035 mm | 1056 mm | 1086 mm | 1106 mm | 1127 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 672 mm | 708 mm | 742 mm | 768 mm | 804 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

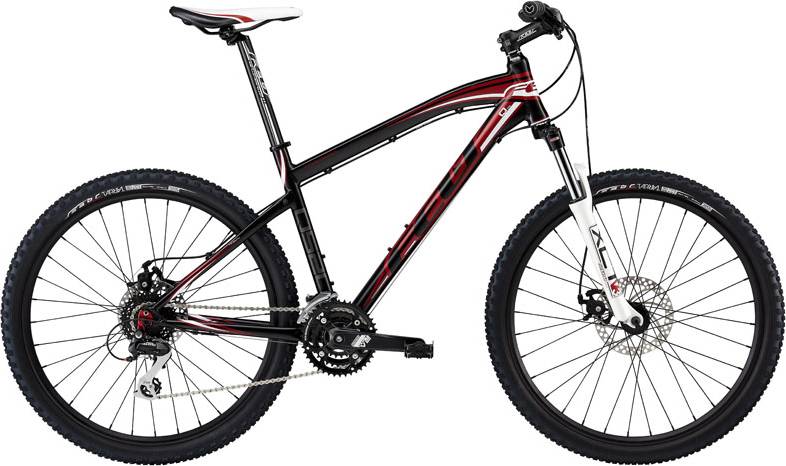

Q520 is a Felt Q520 model. There are 5 bikes that carry this model name. You can easily view all of the Felt Q520 bikes models from 2011, here.
Model range prices
Felt Q520 2011 is the most affordable bike of this model and has a price of 549$. On the other hand, Felt Q520 – 2012 2011, is the most expensive and costs 599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 549$. Doing a quick comparison, we notice that Q520 price is 246.99% smaller than the average cost of a Crosscountry bike.
Overview of components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Q520 2011 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
