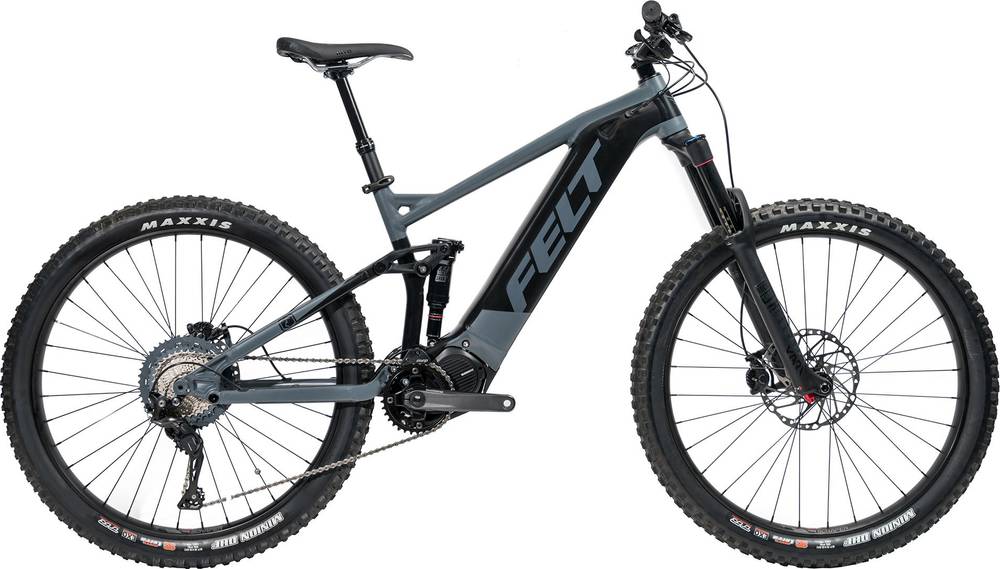

Felt REDEMPTION-E 30 2019
2019 E-bike
Estimate price |
5,799$
Weight | 23.22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8020, 500Wh integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
158cm - 171cm
18"
168cm - 180cm
20"
178cm - 189cm
22"
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt All Mountain, 150mm travel, Shimano e-Bike specific, double-butted 6061 aluminum, fully integrated down tube, ControlTaper integrated head tube, post disc mount, replaceable derailleur hanger, 12 x 148mm Syntace style thru axle
Suspension Fork
Rock Shox Yari RC Solo Air, 150mm travel, 15 x 110mm Boost, E-Bike specific
Rear Shock
Rock Shox Deluxe R, Debonair, 185 x 52.5mm Trunnion
Drivetrain
Rear Derailleur
Shimano XT, 11-speed, Shadow Plus, long cage
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000, 1x11
Cassette
Shimano SLX, 11-speed, 11-46T
Crank
Shimano E8050, 34T, SM/MD/LG: 170mm, XL: 175mm
Bottom Bracket
Shimano e8000 MTB drive, 250W output, 20 mph
Chain
KMC X11-E, 11-speed
Chain Guide
MRP E-Guide
Pedals
None included
Wheels
Front Hub
Shimano Deore, 15 x 110mm Boost thru axle, Center lock, 32H
Rear Hub
Shimano Deore, 12 x 148mm Boost thru axle, Center lock, 32H
Rims
WTB Scraper i35, tubeless compatible, 35mm inner width
Spokes
2.0mm butted stainless steel
Tires
Maxxis Minion DHF front, Maxxis High Roller 2 rear, 3C/EXO, tubeless ready, 27.5 x 2.8"
Brakes
Brakes
Shimano SLX M7000 hydraulic disc, 203mm rotor
Brake Levers
Shimano
Cockpit
Stem
Devox, ±7° rise, Ø31.8mm with Cr-Mo bolts, 35mm
Handlebar
Devox E-MTB 6061 butted riser, Ø31.8mm, 25mm rise, 9° sweep, 780mm wide, custom internal wire routing
Grips
Devox Pauley Grip
Headset
FSA sealed cartridge bearings, semi-integrated, No.57, 1.125 - 1.5"
Seat
Saddle
WTB Volt Race, Cr-Mo rails
Seatpost
KS LEV Integra dropper with South Paw, Ø30.9mm, SM: 100mm travel, MD: 125mm travel, LG/XL: 150mm travel
Motor & Battery
Motor
Shimano E8020, 500Wh integrated
Battery
Shimano E8020, 500Wh integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 741 mm | 774 mm | 801 mm | 829 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 603.66 mm | 617.28 mm | 630.9 mm | 644.52 mm |
| Reach | 413.76 mm | 439.98 mm | 461.2 mm | 482.43 mm |
| Top Tube Length | 582 mm | 612 mm | 637 mm | 662 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 65.25 ° | 65.25 ° | 65.25 ° | 65.25 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1182 mm | 1214 mm | 1242 mm | 1269 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
REDEMPTION-E 30 is part of the Felt E Redemption E model. Felt released 2 e-bikes variations of this model so far. Take a sneak peek at all Felt E Redemption E e-bikes models from 2019, by clicking here.
Model range prices
Felt REDEMPTION-E 50 2019 is the cheapest e-bike model and costs 4999$. Felt REDEMPTION-E 30 2019 is the most expensive one and costs 5799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2019 and its price was 5799$. Comparing this to the average Enduro e-bike price, we see that the price is 21.19% higher.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Felt REDEMPTION-E 30 it’s weighing 23.22 kg (51.19 lbs). At this weight, is slightly lighter than average. To sum up, it’s 0.86% lighter than the average weight of Enduro e-bikes.
Overview of components
Fork
Felt REDEMPTION-E 30 2019 e-bike is equipped with the RockShox Yari RC fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Felt REDEMPTION-E 30 e-bike has the Rock Shox Deluxe R model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The REDEMPTION-E 30 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt REDEMPTION-E 30 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
REDEMPTION-E 30 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the REDEMPTION-E 30. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
