Felt TK1 Endurance Frame Kit 2012
2012 Road
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

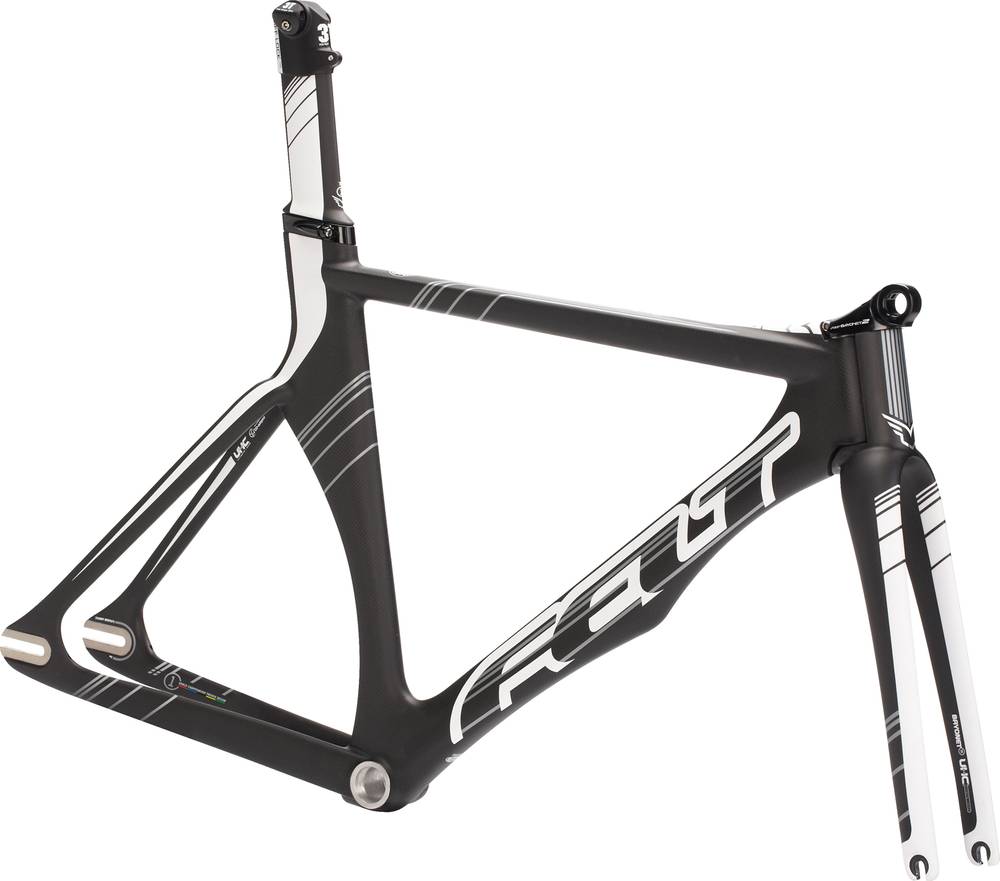

Felt UHC Ultimate + Nano Aero Modular Carbon Fiber Track Frame with 1k finish, carbon dropouts & CNC Machined Titanium dropout surfaces with integrated chain tensioners
Suspension Fork
Felt UHC-Ultimate w/ Nanotube technology Carbon Bayonet™ 2 Track Monocoque Fork with 1k finish, carbon dropouts, for use with 1-1/8” headset bearings
Cockpit
Headset
Cane Creek integrated type 1-1/8"" sealed bearings
Seat
Seatpost
FELT TK1-Aero Design Carbon Fiber Seatpost 72mm deep x 400mm length with 0 to 35mm adjustable topper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 57cm |
|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.16 mm | 1.17 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm |
| Front Center | 566 mm | 582 mm | 598 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 60 mm | 59 mm | 54 mm |
| Stack | 472 mm | 483 mm | 504 mm |
| Reach | 398 mm | 415 mm | 429 mm |
| Top Tube Length | 533 mm | 553 mm | 573 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm |
| Head Tube Angle | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 80 mm | 90 mm | 110 mm |
| Chainstay Length | 378 mm | 378 mm | 378 mm |
| Wheelbase | 938 mm | 953 mm | 970 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 748 mm | 757 mm | 777 mm |
| Wheels | 700 | 700 | 700 |
About this model
TK1 Endurance Frame Kit is part of the Felt Tk1 model. There are 13 frames that carry this model name. You can easily view all of the Felt Tk1 frames models from 2012, here.
Model range prices
The most economical model, the Felt TK1 Sprint Frame Kit 2012 has a starting price of 3999$. Felt TK1 Endurance Frame Kit 2012 on the other hand is the most expensive at 4499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Track frames average price
If you want an acceptable Track frame you should know that the average price is 2508$. However, even if your budget is less than the average, you might still be able to get a top-quality Track frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2012 and its price was 4499$. In conclusion, this frame price is 79.39% more expensive than the price of the average Track frame.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
