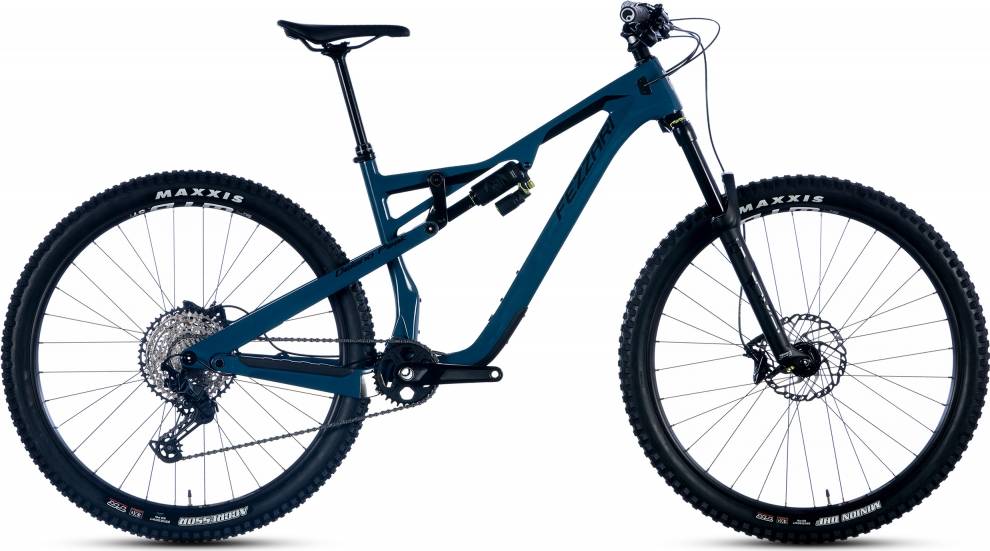

Fezzari Delano Peak Comp Eagle GA Link High 2021
2021 Mountain
Estimate price |
3,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork DVO Diamond
-
Groupset NX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
DVO Diamond D1 29 150mm
Rear Shock
DVO Topaz T3 210x50, 25x8mm/30x8mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM NX Eagle PG-1230, 12 speed
Crank
SRAM NX Eagle Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub 73 mm English Thread
Chain
SRAM NX Eagle, 12 speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Rear Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Rims
WTB STP i29 TCS 29", 32 hole, disc specific, tubeless ready
Spokes
15G Stainless black, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
SRAM G2 R Hydraulic Disc, SRAM Centerline Rotors, 180mm/180mm F/R
Brake Levers
SRAM G2 R
Cockpit
Stem
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.291 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 743 mm | 776 mm | 801 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 129 mm | 129 mm | 129 mm |
| Stack | 603.5 mm | 603.5 mm | 621.8 mm | 635.5 mm |
| Reach | 435.6 mm | 467.4 mm | 483.3 mm | 504.8 mm |
| Top Tube Length | 560 mm | 593 mm | 612.9 mm | 637 mm |
| Seat Tube Angle | 77.9 ° | 77.9 ° | 77.9 ° | 77.9 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1175 mm | 1208 mm | 1232 mm | 1260 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Delano Peak Comp Eagle GA Link High is a Fezzari Delano model. Fezzari launched 40 bikes of this model so far. Take a sneak peek at all Fezzari Delano bikes models from 2021, by clicking here.
Model range prices
Fezzari Delano Peak Comp Eagle GA Link High 2021 is the most affordable bike of this model and has a price of 3599$. On the other hand, Fezzari Delano Peak Team AXS GA Link Low 2021, is the most expensive and costs 8999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3599$. In conclusion, this bike price is 30.3% higher than the price of the average Trail bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the DVO Diamond fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Fezzari Delano Peak Comp Eagle GA Link High bike has the DVO Topaz T3 210×50 model installed, and has a travel of 135mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Delano Peak Comp Eagle GA Link High 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Delano Peak Comp Eagle GA Link High comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Delano Peak Comp Eagle GA Link High comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Fezzari Delano Peak Comp Eagle GA Link High comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
