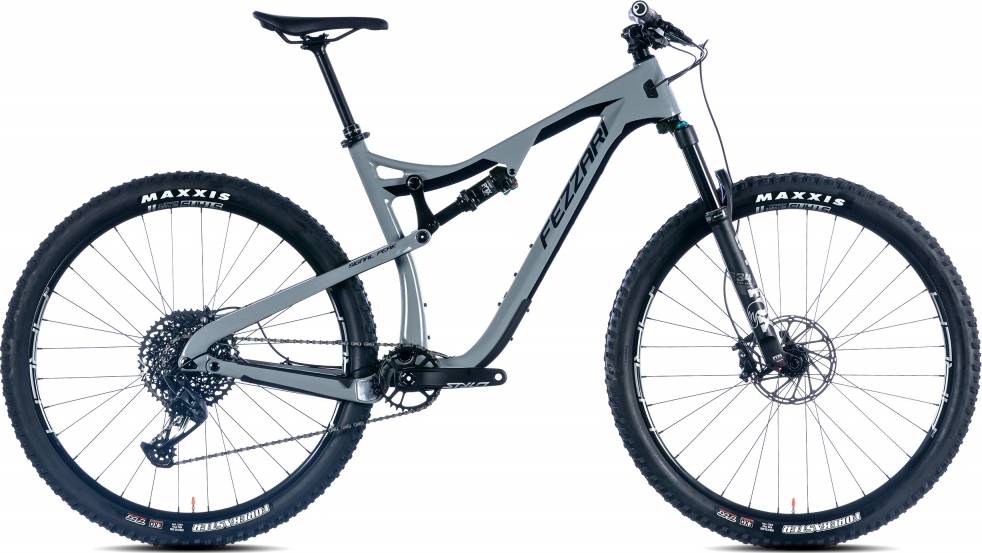

Fezzari Signal Peak Elite 29 2021
2021 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 115mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast 120mm travel, Performance Elite, Fit4 damper with external low-speed and rebound adjustments, 15x110 Axle
Rear Shock
Fox DPS 3 position Evol air sleeve, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-50t, 12-speed
Crank
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rear Hub
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rims
Stan's Arch MK3, 29", 32 hole, disc specific, tubeless ready
Spokes
Sapim 14G Black, Alloy Nipple
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level TLM, 160mm F/R Rotors
Brake Levers
SRAM Level TLM
Cockpit
Stem
New CNC35 stem
Handlebar
New alloy Fezzari team bar-customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic Dropper- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 717 mm | 735 mm | 755 mm | 775 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 612.2 mm | 616.9 mm | 626.2 mm | 635.4 mm |
| Reach | 436.4 mm | 452.3 mm | 468.7 mm | 485.1 mm |
| Top Tube Length | 599 mm | 616 mm | 635 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1150 mm | 1168 mm | 1188 mm | 1208 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Elite 29 is part of the Fezzari Signal model. Fezzari released 60 bikes variations of this model so far. You can easily view all of the Fezzari Signal bikes models from 2021, here.
Model range prices
Fezzari Signal Peak Comp 2021 is the cheapest bike model and costs 2999$. Fezzari Signal Peak Team Edition 29 2021 is the most expensive one and costs 7849$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3999$. Comparing the average cost of a Crosscountry bike to this one, you will see that Signal Peak Elite 29 price is 109.92% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Signal Peak Elite 29 components
Fork
The Fox Performance Elite Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Signal Peak Elite 29 has a rear shock with a travel of 115mm. The model Fox DPS 3 position Evol air sleeve is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Signal Peak Elite 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Signal Peak Elite 29 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Signal Peak Elite 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Fezzari model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
