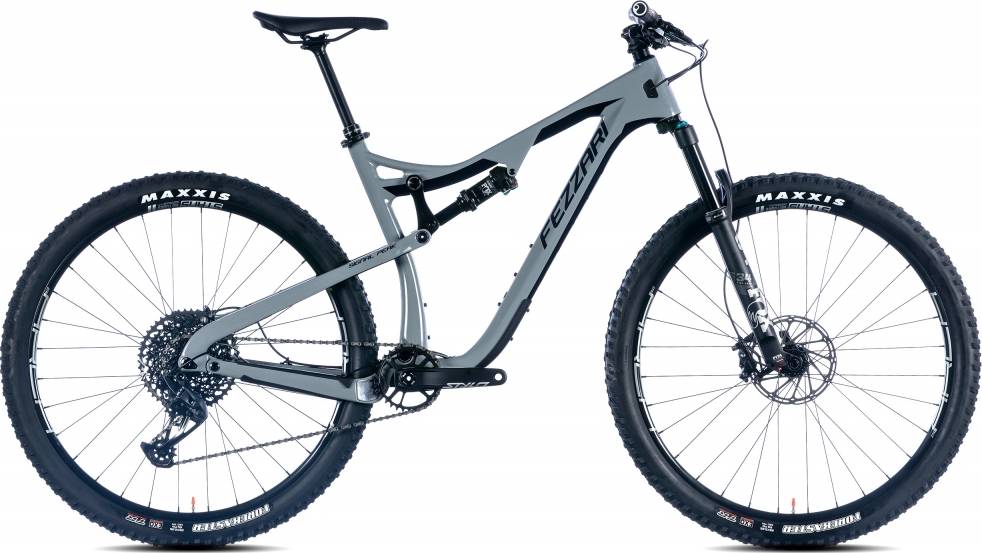

Fezzari Signal Peak Elite AXS 27.5+ 2021
2021 Mountain
Estimate price |
4,549$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle AXS, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 115mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast 120mm travel, Performance Elite, Fit4 damper with external low-speed and rebound adjustments, 15x110 Axle
Rear Shock
Fox DPS 3 position Evol air sleeve, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Wireless
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle AXS Wireless 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-50t, 12-speed
Crank
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rear Hub
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rims
Stan's Arch MK3, 29", 32 hole, disc specific, tubeless ready
Spokes
Sapim 14G Black, Alloy Nipple
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level TLM, 160mm F/R Rotors
Brake Levers
SRAM Level TLM
Cockpit
Stem
New CNC35 stem
Handlebar
New alloy Fezzari team bar-customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic Dropper- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 335.5 mm | 335.5 mm | 335.5 mm | 335.5 mm |
| Front Center | 716 mm | 734 mm | 754 mm | 774 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 605.2 mm | 609.8 mm | 619.1 mm | 628.4 mm |
| Reach | 438.8 mm | 454.7 mm | 471.1 mm | 487.5 mm |
| Top Tube Length | 594.6 mm | 611.6 mm | 630.6 mm | 649.6 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 403 mm | 429 mm | 480 mm | 517 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1147 mm | 1165 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 778 mm | 785 mm | 789 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Elite AXS 27.5+ completes the Fezzari Signal model. Fezzari launched 60 bikes of this model so far. Take a sneak peek at all Fezzari Signal bikes models from 2021, by clicking here.
Model range prices
Fezzari Signal Peak Comp 2021 is the most affordable bike of this model and has a price of 2999$. On the other hand, Fezzari Signal Peak Team Edition 29 2021, is the most expensive and costs 7849$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4549$. If we compare this with the average Crosscountry bike cost we notice that the price is 138.79% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Fezzari Signal Peak Elite AXS 27.5+ 2021 bike is equipped with the Fox Performance Elite Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Fox DPS 3 position Evol air sleeve model, with a travel of 115mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Fezzari Signal Peak Elite AXS 27.5+ 2021, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fezzari Signal Peak Elite AXS 27.5+ is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Fezzari Signal Peak Elite AXS 27.5+ comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
