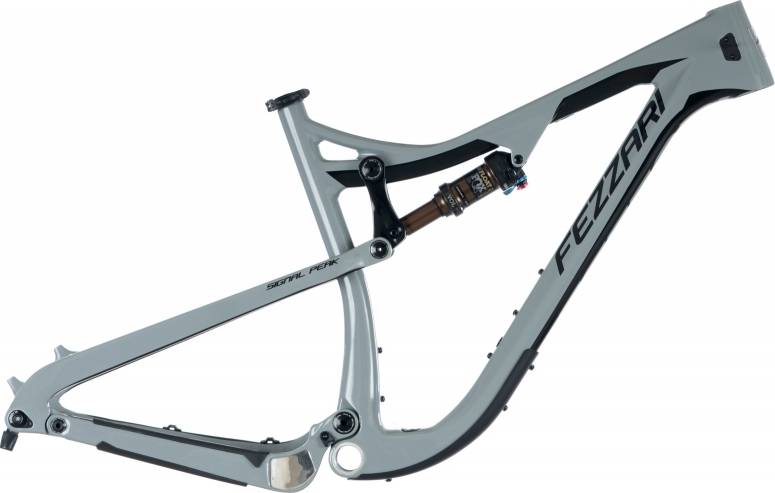

Fezzari Signal Peak Frameset 29 2019
2019 Mountain
Estimate price |
2,199$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 120mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari S12 CleanCast™ Carbon Frame, 120mm travel TetraLink™ Suspension. CleanCatch™ rattle-proof Internal cable routing. FrameDefense Tech derailleur hanger. Max tire clearance 29x2.6, Fezzari alloy seat clamp, custom molded chainstay and downtube protector
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 717 mm | 735 mm | 755 mm | 775 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 612.2 mm | 616.9 mm | 626.2 mm | 635.4 mm |
| Reach | 436.4 mm | 452.3 mm | 468.7 mm | 485.1 mm |
| Top Tube Length | 599 mm | 616 mm | 635 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1150 mm | 1168 mm | 1188 mm | 1208 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Frameset 29 is a Fezzari Signal model. Fezzari released 60 frames variations of this model so far. Take a sneak peek at all Fezzari Signal frames models from 2019, by clicking here.
Model range prices
Fezzari Signal Peak Frameset 29 2019 is the most affordable frame of this model and has a price of 2199$. On the other hand, Fezzari Signal Peak Frameset 27.5+ 2019, is the most expensive and costs 2199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail frames
If you want an acceptable Trail frame you should know that the average price is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Fezzari released this model in 2019, its price was 2199$. Doing a quick comparison, we notice that Signal Peak Frameset 29 price is 26.67% more expensive than the average cost of a Trail frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
