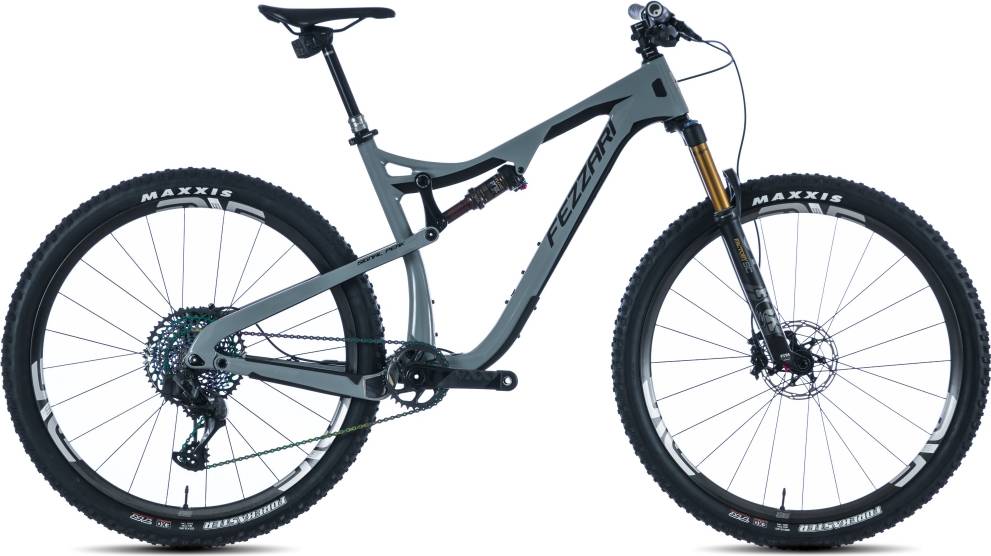

Fezzari Signal Peak Team Edition 27.5+ 2019
2019 Mountain
Estimate price |
7,849$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast, 120mm Travel Factory Series, 110x15
Rear Shock
Fox Float DPS Factory, 3 position Adjust
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS,1
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle AXS, trigger shifter
Cassette
SRAM XG1299, 12 speed Eagle, 10-50T, Oil Slick Finish
Crank
SRAM XX1 Eagle AXS Carbon DUB SL, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM XX1 Eagle AXS, 12-spd, Oil Slick Finish
Pedals
Available Separately
Wheels
Front Hub
Industry 9 101 - Industry 9 Hydra Upgrade available at Checkout
Rear Hub
Industry 9 101 - Industry 9 Hydra Upgrade available at Checkout
Rims
Enve M525 OR M630 - Customize at Checkout
Spokes
Sapim CX Sprint
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate, SRAM Centerline 160mm/160mm F/R Rotors
Brake Levers
SRAM Level Ultimate
Cockpit
Stem
RaceFace Turbine R 35mm,customized sizing through 23-Point Custom Setup
Handlebar
Enve M7 Carbon, 35mm diameter, 780-800m width
Headset
FSA No.57, integrated
Seat
Saddle
Ergon SM Pro Ti
Seatpost
RockShox Reverb AXS Wireless
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 335.5 mm | 335.5 mm | 335.5 mm | 335.5 mm |
| Front Center | 716 mm | 734 mm | 754 mm | 774 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 605.2 mm | 609.8 mm | 619.1 mm | 628.4 mm |
| Reach | 438.8 mm | 454.7 mm | 471.1 mm | 487.5 mm |
| Top Tube Length | 594.6 mm | 611.6 mm | 630.6 mm | 649.6 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 403 mm | 429 mm | 480 mm | 517 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1147 mm | 1165 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 778 mm | 785 mm | 789 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Team Edition 27.5+ belongs to the Fezzari Signal model. Fezzari launched 60 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Fezzari Signal Peak Comp 29 2019 is the most economical model, with a starting price of 2999$. Fezzari Signal Peak Team Edition 27.5+ 2019 on the other hand costs 7849$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 7849$. Comparing this to the average Trail bike price, we see that the price is 184.18% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Signal Peak Team Edition 27.5+ comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Signal Peak Team Edition 27.5+ are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Signal Peak Team Edition 27.5+ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Fezzari Signal Peak Team Edition 27.5+ bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Fezzari model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
