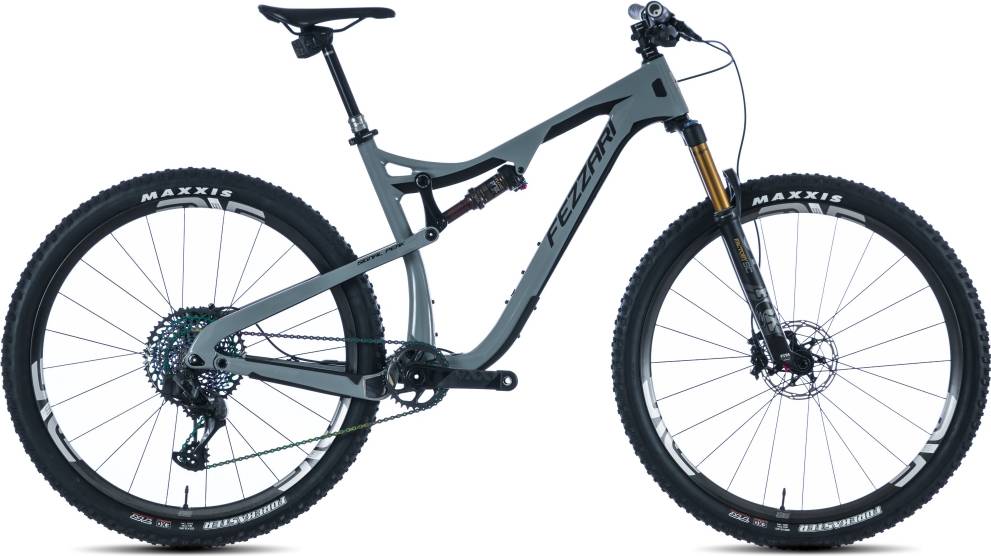

Fezzari Signal Peak Team Edition 27.5+ 2021
2021 Mountain
Estimate price |
7,849$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 115mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast, 120mm Travel Factory Series, 110x15
Rear Shock
Fox Float DPS Factory, 3 position Adjust
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS,1
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle AXS, trigger shifter
Cassette
SRAM XG1299, 12 speed Eagle, 10-50T, Oil Slick Finish
Crank
SRAM XX1 Eagle AXS Carbon DUB SL, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM XX1 Eagle AXS, 12-spd, Oil Slick Finish
Pedals
Available Separately
Wheels
Front Hub
Industry 9 101 - Industry 9 Hydra Upgrade available at Checkout
Rear Hub
Industry 9 101 - Industry 9 Hydra Upgrade available at Checkout
Rims
Enve AM30 carbon
Spokes
Sapim CX Sprint
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate, SRAM Centerline 160mm/160mm F/R Rotors
Brake Levers
SRAM Level Ultimate
Cockpit
Stem
ProTaper MTB 35mm,customized sizing through 23-Point Custom Setup
Handlebar
Enve M7 Carbon, 35mm diameter, 780-800m width
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Ergon SM Pro Ti
Seatpost
RockShox Reverb AXS Wireless
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 335.5 mm | 335.5 mm | 335.5 mm | 335.5 mm |
| Front Center | 716 mm | 734 mm | 754 mm | 774 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 605.2 mm | 609.8 mm | 619.1 mm | 628.4 mm |
| Reach | 438.8 mm | 454.7 mm | 471.1 mm | 487.5 mm |
| Top Tube Length | 594.6 mm | 611.6 mm | 630.6 mm | 649.6 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 403 mm | 429 mm | 480 mm | 517 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1147 mm | 1165 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 778 mm | 785 mm | 789 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Team Edition 27.5+ completes the Fezzari Signal model. Fezzari launched 60 bikes of this model so far. Take a sneak peek at all Fezzari Signal bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Fezzari Signal Peak Comp 2021 has a starting price of 2999$. Fezzari Signal Peak Team Edition 29 2021 on the other hand is the most expensive at 7849$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 7849$. In conclusion, this bike price is 312.02% higher than the price of the average Crosscountry bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Signal Peak Team Edition 27.5+ components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Factory, with a travel distance of 115mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Signal Peak Team Edition 27.5+ 2021 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fezzari Signal Peak Team Edition 27.5+ is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Fezzari Signal Peak Team Edition 27.5+ bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Fezzari Signal Peak Team Edition 27.5+ comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
