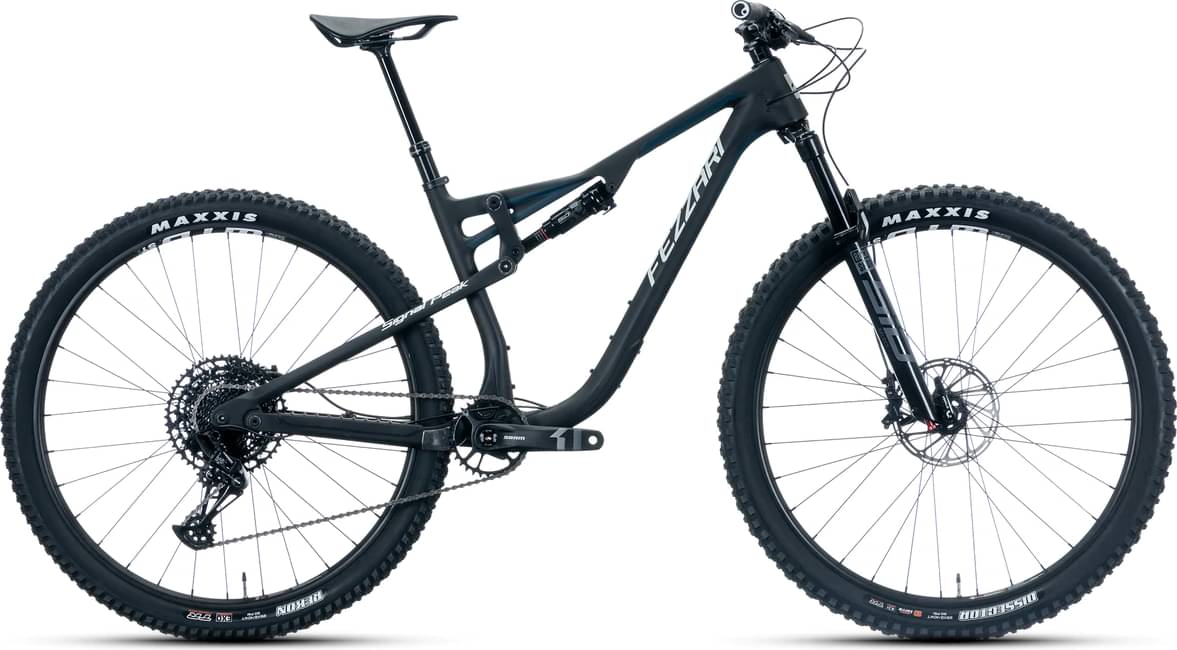

Fezzari Signal Peak TR Elite 2022
2022 Mountain
Estimate price |
4,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset GX Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Signal Peak CleanCast™ Carbon TetraLink™ Full Suspension, 115mm travel. Internal FutureProof™ cable routing on top of Downtube. CleanCatch™ rattle-proof cable guides. UDH derailleur hanger. ISCG-05 mounts, two hole. 2 flush-mount bottle cages (all frame sizes)
Suspension Fork
Rockshox SID Ultimate Race Day 120mm travel, 15x110 Axle, tapered steerer
Rear Shock
Rockshox SIDLuxe Ultimate RL 115mm, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-52t, 12-speed
Crank
SRAM Descendant Eagle Carbon Eagle DUB-customized sizing through 23-Point Custom Setup
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Stan's E-Sync; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XDR driver
Rear Hub
Stan's E-Sync; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XDR driver
Rims
Stan's Arch MK4, 29", 32 hole, disc specific, tubeless ready
Spokes
Black Sapim
Tires
Maxxis Dissector 29x2.4, EXO, TR Protection, Tubeless Ready, Rekon 29x2.4, EXO, TR Protection, Tubeless Ready
Brakes
Brakes
SRAM G2 RS, 180/180mm F/R Rotors
Brake Levers
SRAM G2 RS
Cockpit
Stem
New CNC35 stem
Handlebar
Fezzari team 35mm bar. Customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Selle Italia X Superflow
Seatpost
PNW Rainier Gen 3- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 720 mm | 737 mm | 759 mm | 780 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 116 mm | 116 mm | 116 mm |
| Stack | 611 mm | 617 mm | 626 mm | 635 mm |
| Reach | 437 mm | 453 mm | 471 mm | 488 mm |
| Top Tube Length | 598 mm | 615 mm | 634 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 425 mm | 455 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1153 mm | 1170 mm | 1192 mm | 1213 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 735 mm | 740 mm | 750 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak TR Elite is part of the Fezzari Signal model. Fezzari released 60 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Fezzari Signal Peak TR Comp 2022 is the most affordable bike of this model and has a price of 3799$. On the other hand, Fezzari Signal Peak SL Team 2022, is the most expensive and costs 8999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Fezzari Signal Peak TR Elite price was 4899$. Comparing this to the average Crosscountry bike price, we see that the price is 157.17% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the RockShox SID Ultimate model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Rockshox SIDLuxe Ultimate RL 115mm model, with a travel of 115mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Signal Peak TR Elite model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fezzari Signal Peak TR Elite is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
