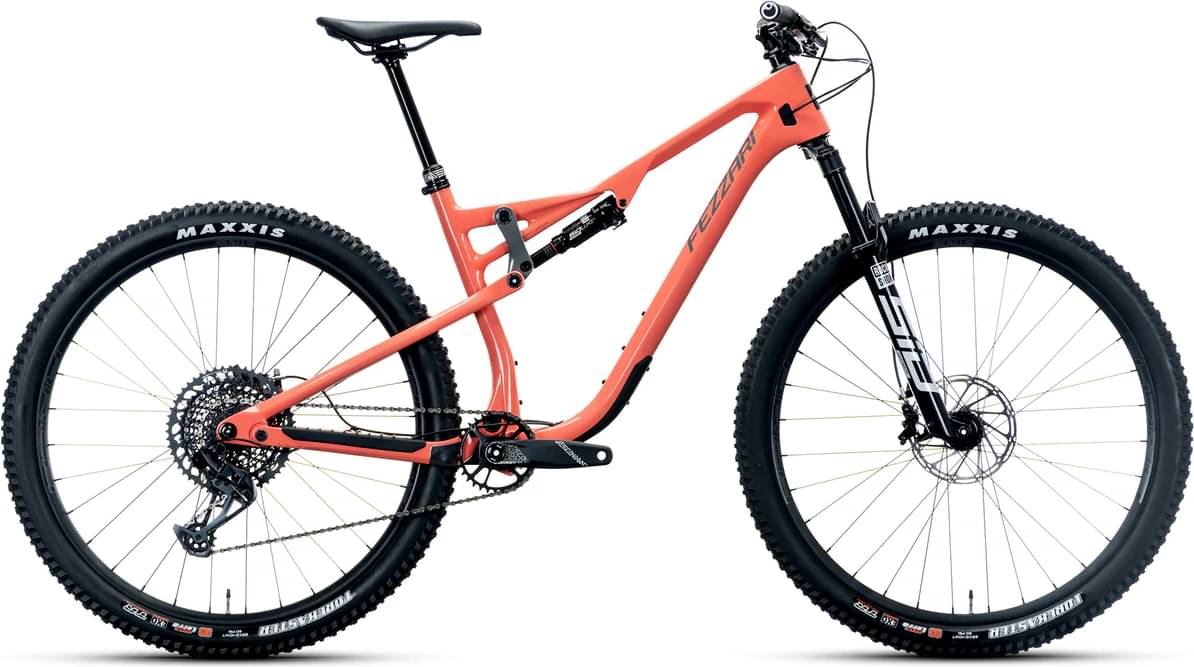

Fezzari Signal Peak TR Team XX SL Transmission 2023
2023 Mountain
Estimate price |
9,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Signal Peak SL CleanCast™ Carbon TetraLink™ Full Suspension, 100mm or 115mm travel. Internal FutureProof™ cable routing on top of Downtube. CleanCatch™ rattle-proof cable guides. UDH derailleur hanger. ISCG-05 mounts, two hole. 2 flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox 34 Step Cast, 29er, Factory 120mm, FIT4, 3Pos-Adj, 15x110, 1.5 tapered steerer.
Rear Shock
Fox Float DPS Factory 3-Position Lever 115mm
Drivetrain
Rear Derailleur
SRAM XX SL Eagle Transmission 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD 12-Speed
Cassette
SRAM XS-1299 XX SL Eagle Transmission, 10-52t, 12-speed
Crank
SRAM XX SL Eagle, DUB Wide-customized sizing through 23-Point Custom Setup
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM XX SL Eagle Transmission Flattop 12-speed
Pedals
Available Separately
Wheels
Front Hub
i9 Hydra CL, Disc, 15x110 thru axle, Rear: i9 Hydra CL, Disc, 12x148 thru axle, XD
Rear Hub
i9 Hydra CL, Disc, 15x110 thru axle, Rear: i9 Hydra CL, Disc, 12x148 thru axle, XD
Rims
Enve M525 Carbon 29 Tubeless Ready
Spokes
Sapim CX Ray
Tires
Maxxis Forekaster 29x2.4, EXO, TR Protection, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate Stealth 4-Piston, 180/160mm F/R Rotors
Brake Levers
New SRAM Brakes
Cockpit
Stem
Enve Alloy 31.8
Handlebar
Enve M5 Carbon Mountain Handlebar 31.8x760mm bar. Customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Ergon SM10
Seatpost
Fox Transfer SL Factory Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 720 mm | 737 mm | 759 mm | 780 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 116 mm | 116 mm | 116 mm |
| Stack | 611 mm | 617 mm | 626 mm | 635 mm |
| Reach | 437 mm | 453 mm | 471 mm | 488 mm |
| Top Tube Length | 598 mm | 615 mm | 634 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 425 mm | 455 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 120 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1153 mm | 1170 mm | 1192 mm | 1213 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 735 mm | 740 mm | 750 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak TR Team XX SL Transmission is part of the Fezzari Signal model. Fezzari released 60 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Fezzari Signal Peak TR Comp 2023 is the most economical model, with a starting price of 3799$. Fezzari Signal Peak TR Team XX SL Transmission 2023 on the other hand costs 9499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9499$. Doing a quick comparison, we notice that Signal Peak TR Team XX SL Transmission price is 398.64% more expensive than the average cost of a Crosscountry bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Fezzari Signal Peak TR Team XX SL Transmission bike has the Fox Float DPS Factory 3-Position Lever 115mm model installed, and has a travel of 115mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Signal Peak TR Team XX SL Transmission are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Signal Peak TR Team XX SL Transmission has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Fezzari Signal Peak TR Team XX SL Transmission comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
