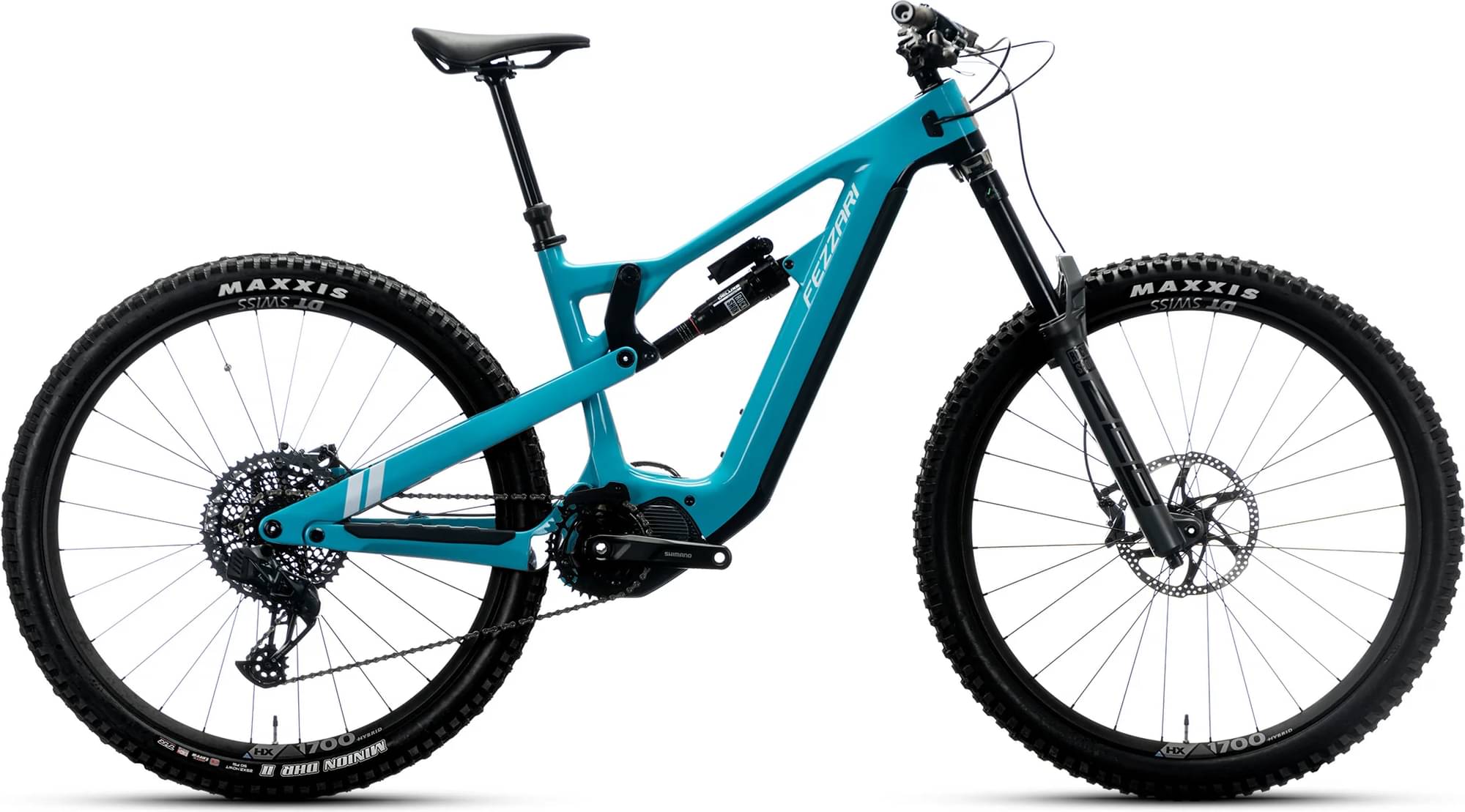

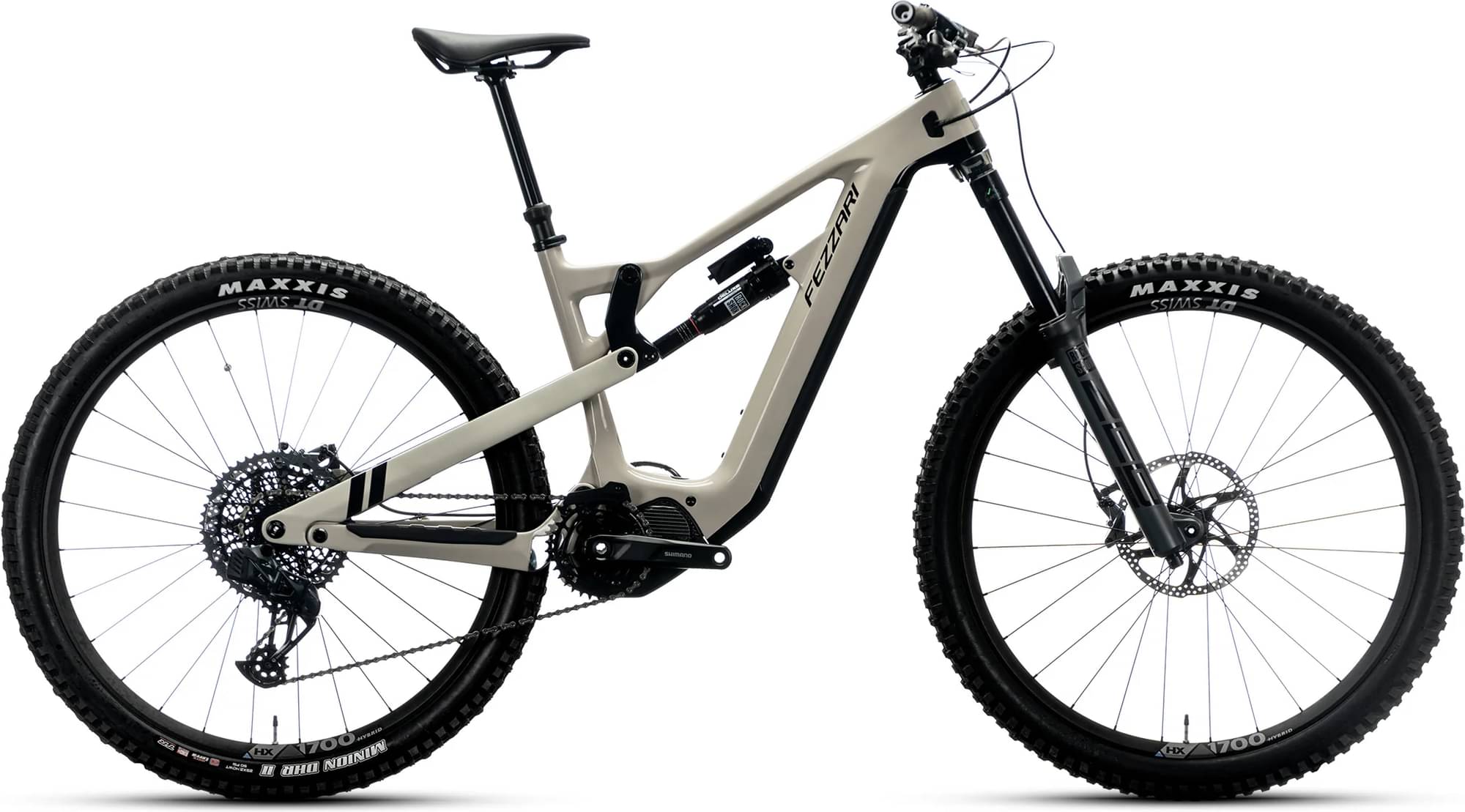

Fezzari Timp Peak Elite 2023
2023 E-bike
Estimate price |
6,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EP8 250W, 85 nm torque motor, 635 Wh removable battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Timp Peak CleanCast™ Carbon TetraLink™ Full Suspension, 170mm travel
Suspension Fork
Rockshox ZEB Ultimate RC2, Charger 3 Buttercups, 170mm travel, 15x110 Axle, 42mm offset, tapered steerer
Rear Shock
RockShox Super Deluxe Ultimate RC2T, 230x65, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-Speed
Cassette
SRAM XG-1275 Eagle, 10-52t, 12-speed
Crank
Shimano EM600, 160mm
Bottom Bracket
Shimano EP8 motor system
Chain
SRAM GX Eagle 12-speed
Chain Guide
MRP 1x for EP8. Drive
Pedals
Available Separately
Wheels
Front Hub
F: DT Swiss 370, Disc, 15x110 thru axle, R: DT Swiss 370 Ratchet System, Disc, 12x148 thru axle, XD
Rear Hub
F: DT Swiss 370, Disc, 15x110 thru axle, R: DT Swiss 370 Ratchet System, Disc, 12x148 thru axle, XD
Rims
DT Swiss H1900, 29, Tubeless ready
Spokes
DT hybrid 1 straightpull
Tires
F: Maxxis Assegai 29x2.5WT, EXO+, 3C, TR Protection, Tubeless Ready. R: DH-R 29x2.4WT, EXO+, 3C, TR Protection, Tubeless Ready
Brakes
Brakes
TRP DH-R EVO, 2.3mm 203/203mm
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on 23-Point Custom Setup™ selections
Handlebar
Fezzari team 35mm bar-customized sizing through 23-Point Custom Setup™
Headset
FSA 57R/57
Seat
Saddle
Selle Italia Model X Superflow Comfort
Seatpost
PNW Loam Dropper & Puget Lever (Travel adjusted with 23-Point Custom Setup™ selections after checkout)
Motor & Battery
Motor
Shimano EP8 250W, 85 nm torque motor, 635 Wh removable battery
Battery
Shimano EP8 250W, 85 nm torque motor, 635 Wh removable battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.366 mm | 1.3 mm | 1.254 mm |
| Bottom Bracket Height | 347.6 mm | 347.6 mm | 347.6 mm | 347.6 mm |
| Front Center | 770 mm | 795 mm | 829 mm | 858 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 144 mm | 144 mm | 144 mm | 144 mm |
| Stack | 612.6 mm | 621.6 mm | 630.6 mm | 639.5 mm |
| Reach | 435 mm | 455 mm | 485 mm | 510 mm |
| Top Tube Length | 568.1 mm | 584.9 mm | 613.1 mm | 637.2 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1206 mm | 1230 mm | 1264 mm | 1294 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 739 mm | 741 mm | 742 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Timp Peak Elite is a Fezzari E Timp model. 8 e-bikes variations carry this model name so far. You can easily view all of the Fezzari E Timp e-bikes models from 2023, here.
Model range prices
Fezzari Timp Peak Comp 2023 is the cheapest e-bike model and costs 5999$. Fezzari Timp Peak Team 2023 is the most expensive one and costs 9999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. Comparing this to the average Enduro e-bike price, we see that the price is 46.27% higher.
Overview of components
Fork
This e-bike has the RockShox ZEB Ultimate fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Ultimate RC2T, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Timp Peak Elite model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Fezzari Timp Peak Elite comes with a dropper post. Therefore, climbing or descending will be a breeze.
