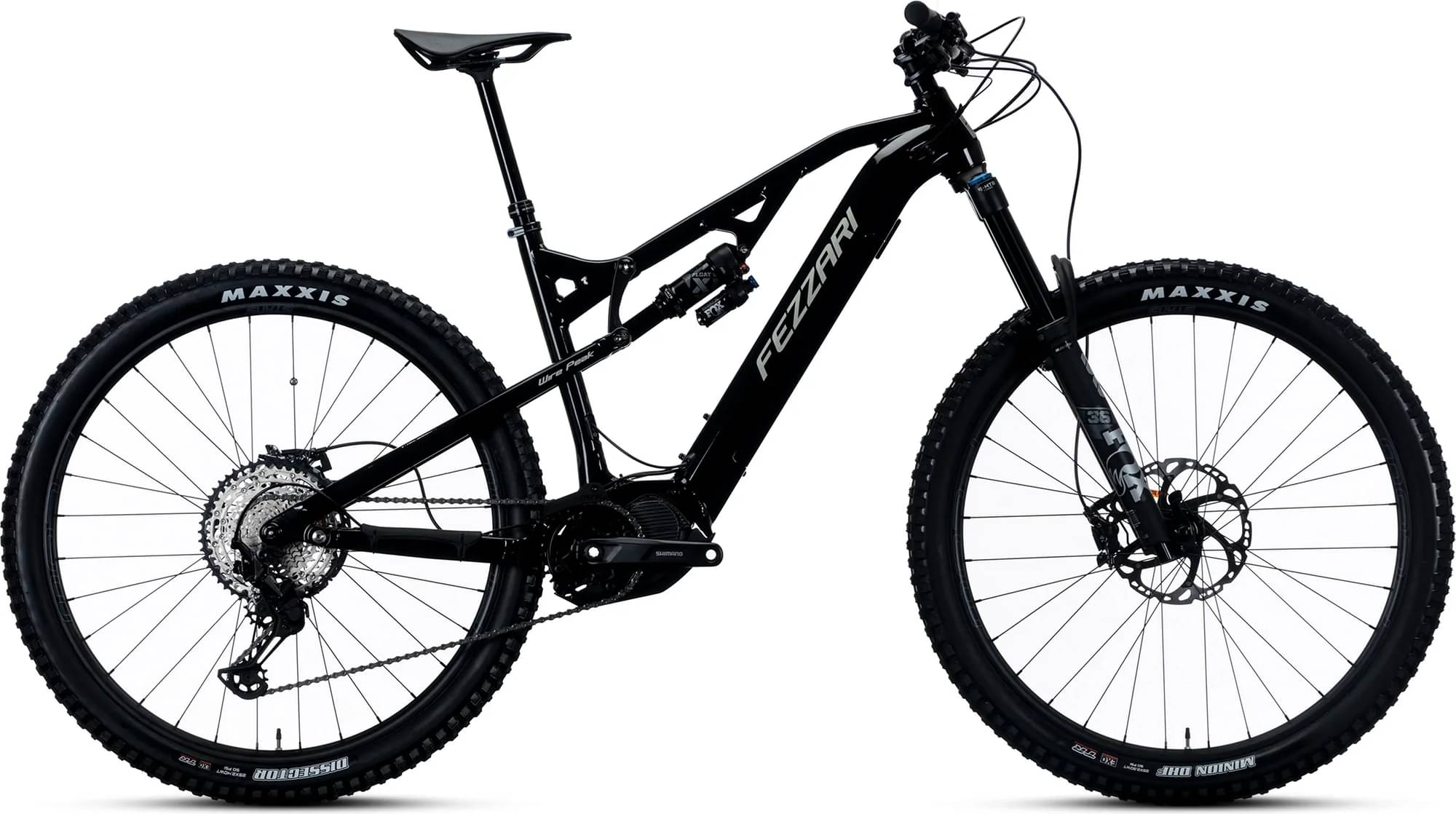

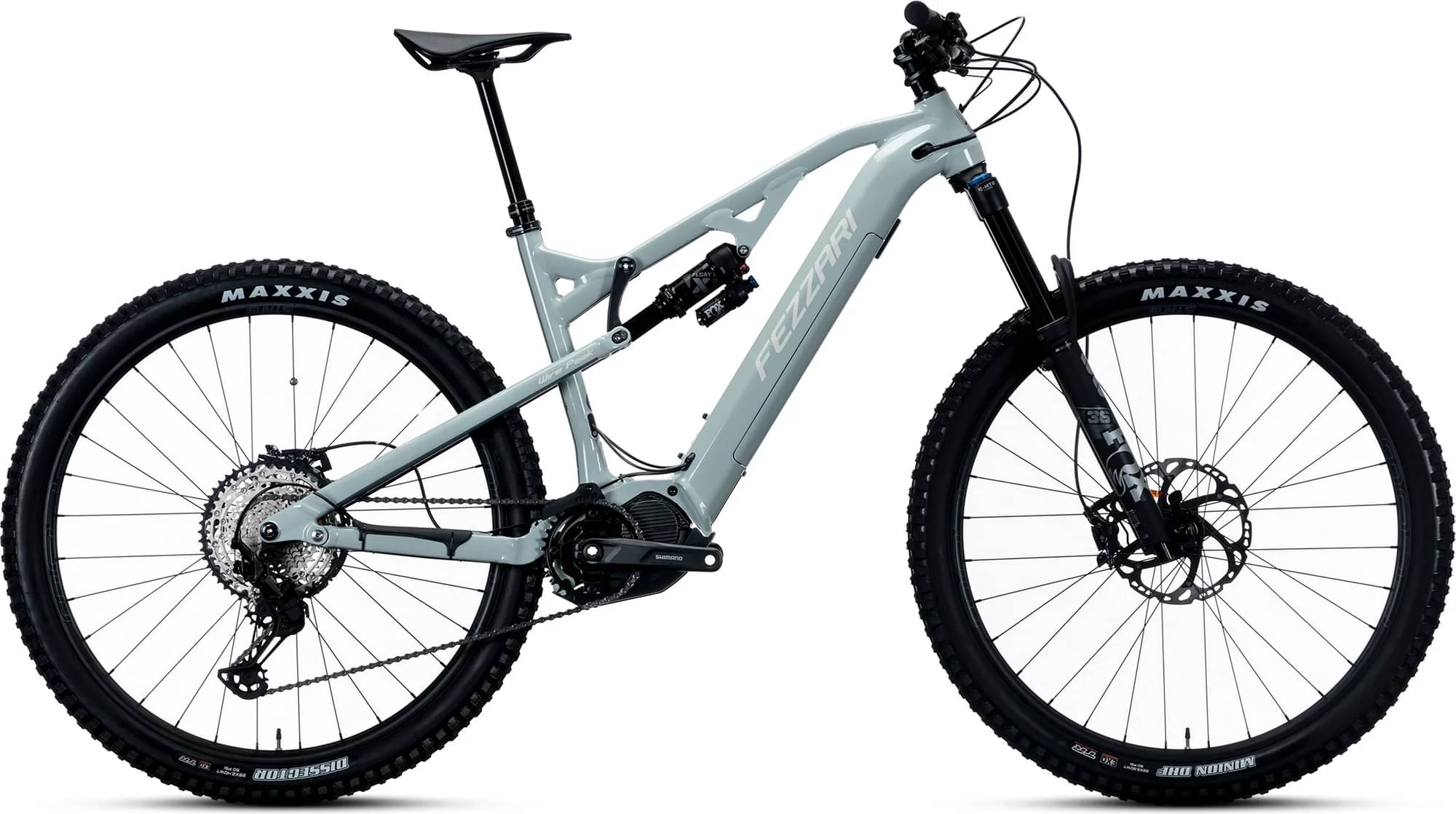

Fezzari Wire Peak Comp 2023
2023 E-bike
Estimate price |
3,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E7000 250W, 60 nm torque motor, 504 Wh removable battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design Wire Peak, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
Suspension Fork
RockShox Recon RL, 150mm travel, External rebound and lockout
Rear Shock
X-Fusion O2 Pro RL, Rebound and lockout adjust
Drivetrain
Rear Derailleur
SRAM SX Eagle 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle Trigger 12-Speed
Cassette
SRAM PG-1210 Eagle, 11-50t, 12-speed
Crank
Shimano EM600, 160mm
Bottom Bracket
Shimano E7000 Bike motor system
Chain
SRAM SX Eagle 12-speed
Chain Guide
MRP 1x for E7000
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, HG
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, HG
Rims
WTB i29 2.0, Tubeless ready
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 29X2.5 WT Exo Tubeless Ready 60 TPI, Rear: Maxxis Dissector 29X2.4 Exo Tubeless Ready
Brakes
Brakes
SRAM Guide T 4-Piston, 200mm Rotors
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1mm riser, 9 degree bend
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered, with 10mm lower cup
Seat
Saddle
WTB Volt Comp
Seatpost
Fezzari alloy, blast black, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
Motor & Battery
Motor
Shimano E7000 250W, 60 nm torque motor, 504 Wh removable battery
Battery
Shimano E7000 250W, 60 nm torque motor, 504 Wh removable battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.566 mm | 1.483 mm | 1.406 mm | 1.356 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 736 mm | 737 mm | 766 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 106 mm | 131 mm | 132 mm | 134 mm |
| Stack | 625 mm | 629 mm | 634 mm | 648 mm |
| Reach | 399 mm | 424 mm | 451 mm | 478 mm |
| Top Tube Length | 563 mm | 589 mm | 618 mm | 647 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1168 mm | 1169 mm | 1198 mm | 1229 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 785 mm | 787 mm | 787 mm | 792 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Wire Peak Comp completes the Fezzari E Wire model. There are 24 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Fezzari Wire Peak Comp 2023 has a starting price of 3899$. Fezzari Wire Peak Pro 2023 on the other hand is the most expensive at 5899$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3899$. Comparing the average cost of a Trail e-bike to this one, you will see that Wire Peak Comp price is 15.87% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is X-Fusion O2 Pro RL, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Wire Peak Comp 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Wire Peak Comp has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
