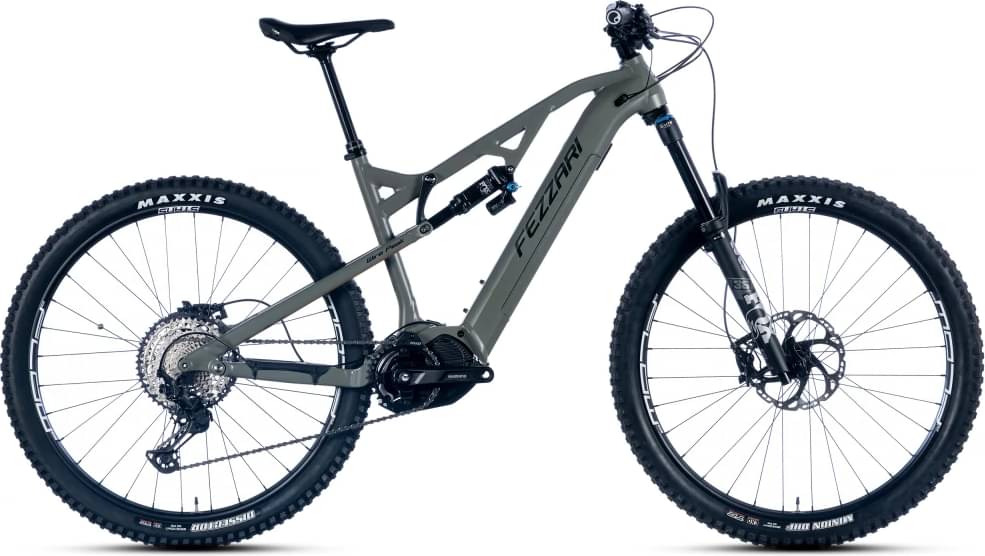

Fezzari Wire Peak Elite 2022
2022 E-bike
Estimate price |
4,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork DVO Diamond
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EP8 250W, 85 nm torque motor, 504 Wh removable battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design Wire Peak, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
Suspension Fork
DVO DiamondE3 160mm 15x110, E-bike specific
Rear Shock
Rockshox Deluxe Select+ RT, External Rebound and Lockout Adjust
Drivetrain
Rear Derailleur
Shimano SLX, SL-M7100, 12-Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, Trigger, 1x12
Cassette
Shimano M7100, 11-51T, 12-speed
Crank
Shimano EM600, 160mm
Bottom Bracket
Shimano EP8 Bike motor system
Chain
Shimano SLX M7100 1x12 - E-bike verified
Chain Guide
MRP 1x for EP8
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Rims
WTB ST i29 2.0, Tubeless ready
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 29X2.5 WT Exo Tubeless Ready 60 TPI, Rear: Maxxis Dissector 29X2.4 Exo Tubeless Ready
Brakes
Brakes
Shimano M6120 4-Piston, 203mm Rotors
Brake Levers
Shimano M6100
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1mm riser, 9 degree bend
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
WTB Volt Comp
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Motor & Battery
Motor
Shimano EP8 250W, 85 nm torque motor, 504 Wh removable battery
Battery
Shimano EP8 250W, 85 nm torque motor, 504 Wh removable battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.459 mm | 1.378 mm | 1.332 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 735 mm | 736 mm | 765 mm | 796 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 98 mm | 123 mm | 124 mm | 125 mm |
| Stack | 615 mm | 620 mm | 624 mm | 638 mm |
| Reach | 400 mm | 425 mm | 452.7 mm | 479 mm |
| Top Tube Length | 565 mm | 591 mm | 620 mm | 649 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 460 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1168 mm | 1170 mm | 1199 mm | 1230 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 782 mm | 782 mm | 782 mm | 782 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Wire Peak Elite completes the Fezzari E Wire model. Fezzari released 24 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Fezzari Wire Peak Comp 2022 is the cheapest e-bike model and costs 3899$. Fezzari Wire Peak Pro 2022 is the most expensive one and costs 5899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4899$. Doing a quick comparison, we notice that Wire Peak Elite price is 45.59% more expensive than the average cost of a Trail e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Wire Peak Elite components
Fork
The DVO Diamond is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the Rockshox Deluxe Select+ RT model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Fezzari Wire Peak Elite 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Fezzari Wire Peak Elite e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Fezzari model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
