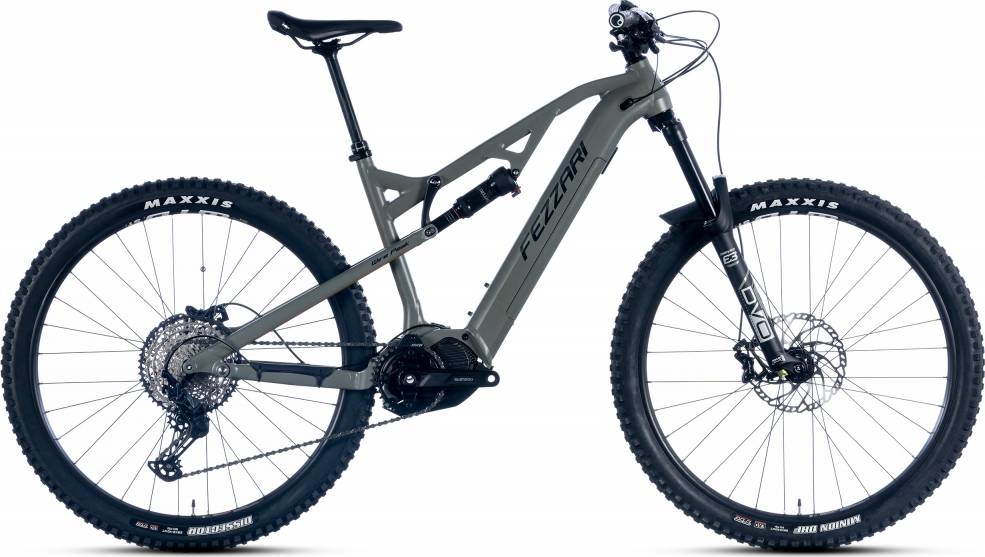

Fezzari Wire Peak Elite 27.5+ 2021
2021 E-bike
Estimate price |
4,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork DVO
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design AT5529-E, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
Suspension Fork
DVO DiamondE3 160mm 15x110, E-bike specific
Rear Shock
Rockshox Deluxe Select+ RT, External Rebound and Lockout Adjust
Drivetrain
Rear Derailleur
Shimano SLX, SL-M7100, HG+ 12 Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, Trigger, 1x12
Cassette
Shimano SLX M7100, 11-50T, 12-speed
Crank
Shimano EM600, 160mm
Bottom Bracket
Shimano EP8 Bike motor system
Chain
Shimano SLX M7100 1x12 - E-bike verified
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Rims
WTB ST i29 2.0, Tubeless ready
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5 Exo Tubeless Ready 60 TPI, Rear: Maxxis Dissector 29x2.4 Exo Tubeless Ready
Brakes
Brakes
TRP Slate T4 203mm rotor F/R
Brake Levers
TRP Slate T4
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1mm riser, 9 degree bend
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Motor & Battery
Motor
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.459 mm | 1.378 mm | 1.332 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 735 mm | 736 mm | 765 mm | 796 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 114 mm | 116 mm | 117 mm |
| Stack | 615 mm | 620 mm | 624 mm | 638 mm |
| Reach | 400 mm | 425 mm | 452.7 mm | 479 mm |
| Top Tube Length | 565 mm | 591 mm | 620 mm | 649 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 460 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1168 mm | 1170 mm | 1199 mm | 1230 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 782 mm | 784 mm | 784 mm | 789 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Wire Peak Elite 27.5+ belongs to the Fezzari E Wire model. There are 24 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Fezzari Wire Peak Comp 29 2021 is the cheapest e-bike model and costs 3899$. Fezzari Wire Peak Pro 27.5+ 2021 is the most expensive one and costs 5899$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4899$. Comparing this to the average Trail e-bike price, we see that the price is 45.59% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Wire Peak Elite 27.5+ comes factory-installed with the DVO fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Wire Peak Elite 27.5+ has a rear shock with a travel of 140mm. The model Rockshox Deluxe Select+ RT is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Fezzari Wire Peak Elite 27.5+ 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Wire Peak Elite 27.5+. Therefore, climbing or descending will be a breeze.
