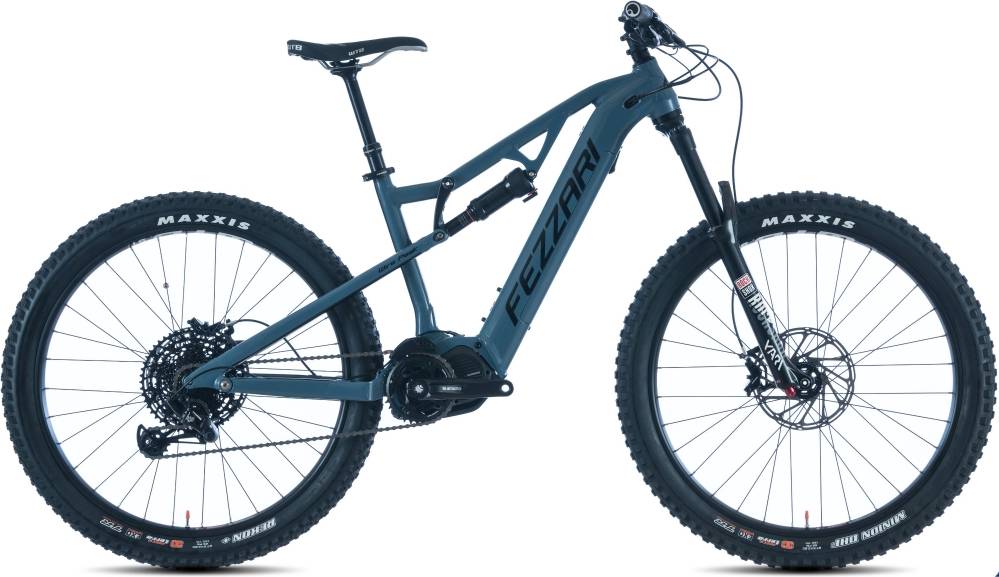

Fezzari Wire Peak Elite 29 2020
2020 E-bike
Estimate price |
4,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Yari RC
-
Groupset NX Eagle, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design AT5529-E, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
Suspension Fork
RockShox Yari RC 150mm travel, 42mm offset, 15x110, E-bike specific
Rear Shock
Rockshox Deluxe RT, External Rebound and Lockout Adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle 12-Speed X-HORIZON Rear Derailleur, 1x12
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle Trigger, 1x12, Single Click E-specific
Cassette
SRAM PG-1230, 11-50T, 12-speed
Crank
Shimano E8000, 165mm
Bottom Bracket
Shimano E8000 Bike motor system
Chain
SRAM NX Eagle 1x12 - E-bike verified
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Rims
WTB ST i35 2.0, Tubeless ready, 27.5+ diameter designed for 2.8 wide tires
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI, Rear: Maxxis Rekon 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI
Brakes
Brakes
SRAM Guide RS 4-piston with 200mm Rotors
Brake Levers
SRAM Guide RS
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 1mm riser, 9 degree bend
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered, with 10mm lower cup
Seat
Saddle
WTB Volt Comp
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Motor & Battery
Motor
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls BEB E-bike specific, 6 Sealed Bearings, Steel Axle, 6-bolts Disc, Boost 148x12mm, Shimano/SRAM Driver
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.566 mm | 1.485 mm | 1.404 mm | 1.356 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 735 mm | 737 mm | 766 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 106 mm | 132 mm | 132 mm | 134 mm |
| Stack | 625 mm | 629.6 mm | 634.2 mm | 648.3 mm |
| Reach | 399 mm | 424 mm | 451.7 mm | 478 mm |
| Top Tube Length | 563 mm | 589 mm | 618 mm | 647 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1167 mm | 1169 mm | 1198 mm | 1229 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 785 mm | 787 mm | 787 mm | 792 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Wire Peak Elite 29 is part of the Fezzari E Wire model. There are 24 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Fezzari Wire Peak Comp 27.5+ 2020 is the cheapest e-bike model and costs 3599$. Fezzari Wire Peak Pro 27.5+ 2020 is the most expensive one and costs 5599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 4599$. Comparing this to the average Trail e-bike price, we see that the price is 36.67% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Rockshox Deluxe RT, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Fezzari Wire Peak Elite 29 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Wire Peak Elite 29 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Fezzari Wire Peak Elite 29 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Fezzari model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
