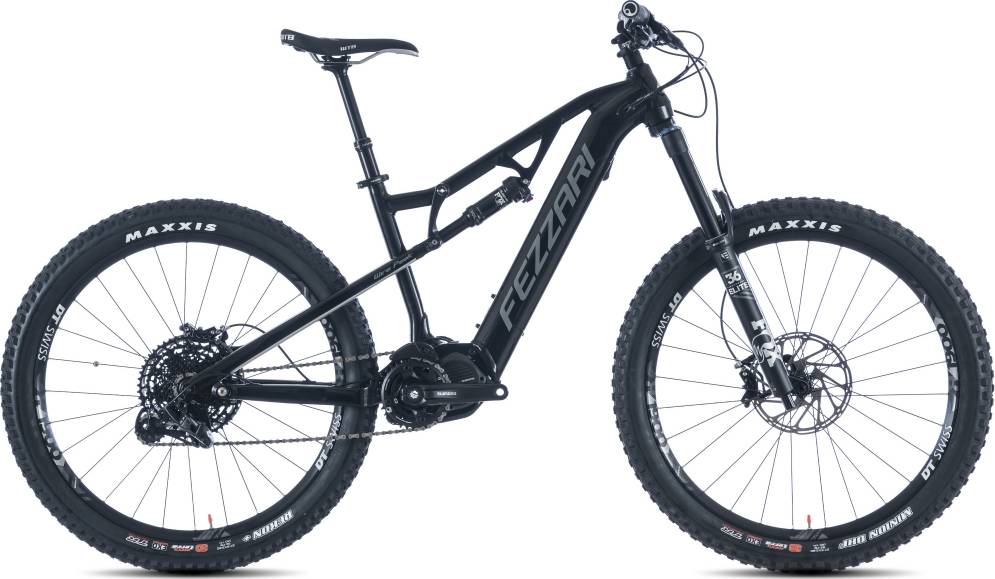

Fezzari Wire Peak Pro 29 2020
2020 E-bike
Estimate price |
5,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design AT5529-E, 140mm travel TetraLink™ suspension, CleanCatch™ rattle-proof cable guides, Frame Defense Tech derailleur hanger, Internal battery compartment with removable battery, sealed cartridge bearings
Suspension Fork
Fox 36 Grip2 160mm travel, Performance Elite, External low-speed compression, Rebound, lockout adjust, 15x110
Rear Shock
Fox Float DPS Performance Elite, 3 position Adjust
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-Speed X-HORIZON Rear Derailleur, 1x12
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger, 1x12, Single Click E-specific
Cassette
SRAM PG-1230, 11-50T, 12-speed
Crank
Shimano E8000, 165mm
Bottom Bracket
Shimano E8000 Bike motor system
Chain
SRAM NX Eagle 1x12 - E-bike verified
Pedals
Available Separately
Wheels
Front Hub
DT Swiss H1900, 148x12, 15x110, E-specific
Rear Hub
DT Swiss H1900, 148x12, 15x110, E-specific
Rims
DT Swiss H1900, 35mm internal width, E-specific
Spokes
DT Swiss H1900
Tires
Front: Maxxis Minion DHF 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI, Rear: Maxxis Rekon 27.5x2.8 3C Exo Maxx Terra Tubeless Ready 120 TPI
Brakes
Brakes
SRAM Code RSC 4-piston with 200mm Rotors
Brake Levers
SRAM Code RSC
Cockpit
Stem
RaceFace Ride 35mm
Handlebar
RaceFace Turbine R, 20mm riser, 780mm
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
WTB Volt Comp
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.566 mm | 1.485 mm | 1.404 mm | 1.356 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 735 mm | 737 mm | 766 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 106 mm | 132 mm | 132 mm | 134 mm |
| Stack | 625 mm | 629.6 mm | 634.2 mm | 648.3 mm |
| Reach | 399 mm | 424 mm | 451.7 mm | 478 mm |
| Top Tube Length | 563 mm | 589 mm | 618 mm | 647 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1167 mm | 1169 mm | 1198 mm | 1229 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 785 mm | 787 mm | 787 mm | 792 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Wire Peak Pro 29 belongs to the Fezzari E Wire model. 24 e-bikes variations carry this model name so far. Take a sneak peek at all Fezzari E Wire e-bikes models from 2020, by clicking here.
Model range prices
Fezzari Wire Peak Comp 27.5+ 2020 is the cheapest e-bike model and costs 3599$. Fezzari Wire Peak Pro 27.5+ 2020 is the most expensive one and costs 5599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5599$. If we compare this with the average Trail e-bike cost we notice that the price is 66.39% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Wire Peak Pro 29 components
Fork
The Fox Performance Elite Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance Elite, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Wire Peak Pro 29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Wire Peak Pro 29 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Wire Peak Pro 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Fezzari Wire Peak Pro 29 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
