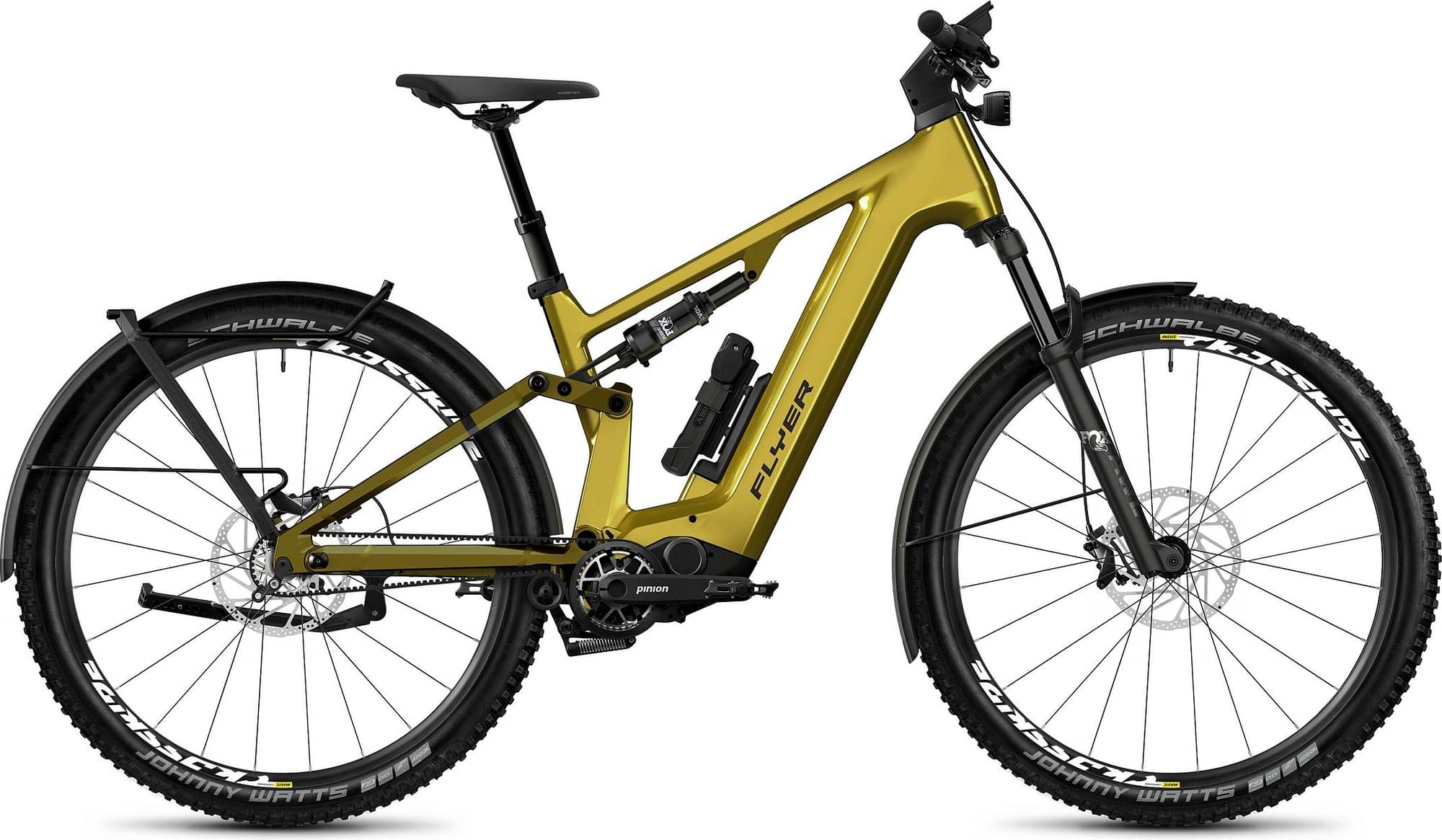

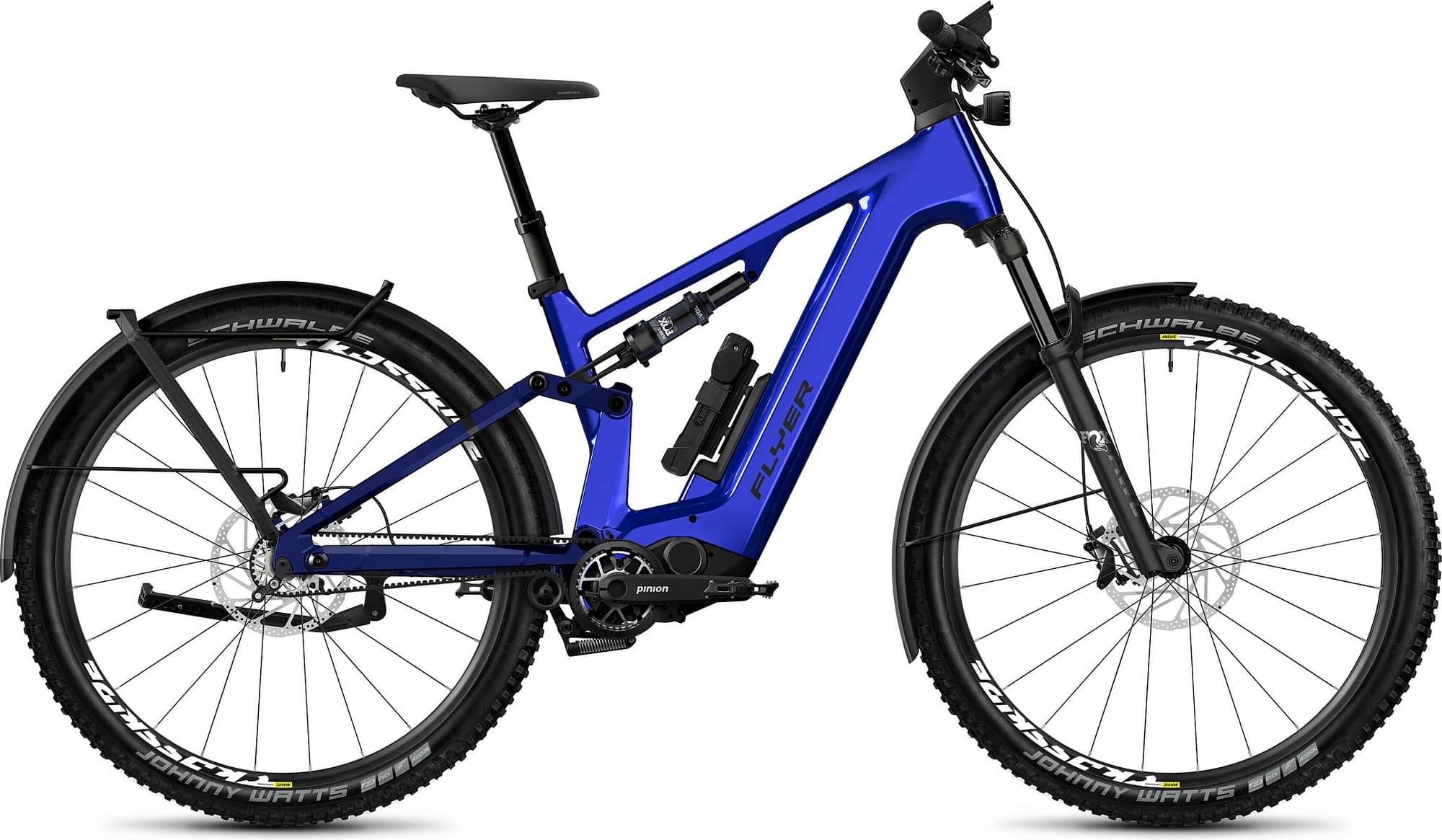

flyer Goroc TR:X 8.63 HS High 2023
2023 E-bike
Estimate price |
12,330$
Weight | 30 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox AWL
-
Suspension Full -
Motor 85Nm mid-drive -
Battery TP 700 48V FIT (700 Wh / 15 Ah / 48 V); with FIT Range Extender 535 48V (535 Wh / 11.2 Ah / 48 V) -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Carbon/Aluminium, 4-link suspension, 130 mm travel
Suspension Fork
Fox AWL, 130 mm travel, 15 × 110 mm boost
Rear Shock
Fox Float DPS, 210 x 50 mm
Drivetrain
Cassette
Pinion Motor Gearbox Unit (MGU), E1.12S with Speed Set-Up, 12 speed; Gates Carbon Drive CDX
Pedals
VP 527
Wheels
Front Hub
MAVIC eCrossride 1
Rear Hub
MAVIC eCrossride 1
Rims
MAVIC eCrossride 1, 30 mm
Tires
Schwalbe Johnny Watts E-50 29 x 2.35 (60-622)
Brakes
Brakes
TRP C2.3, 203/203 mm
Cockpit
Stem
FLYER ONE CI Stem, 35 x 40 mm, 8°
Handlebar
FLYER Alloy, 740 mm, 7°, 25 mm
Seat
Saddle
Selle Royal Essenza+
Seatpost
FLYER Dropper Post MT214, 100 (S) / 125 (M) / 150 (L-XL) mm travel, 34.9 mm
Motor & Battery
Motor
Pinion MGU E1.12S, 800 W (85 Nm)
Battery
TP 700 48V FIT (700 Wh / 15 Ah / 48 V); with FIT Range Extender 535 48V (535 Wh / 11.2 Ah / 48 V)
Charger
FIT Fast Charger 5A 48V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 762 mm | 781 mm | 805 mm | 829 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 122 mm | 122 mm | 122 mm |
| Stack | 636 mm | 648 mm | 657 mm | 666 mm |
| Reach | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 593 mm | 618 mm | 642 mm | 667 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75 ° | 74.9 ° |
| Seat Tube Length | 412 mm | 441 mm | 471 mm | 511 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1225 mm | 1244 mm | 1268 mm | 1292 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
About this model
Goroc TR:X 8.63 HS High is a Flyer E Goroc model. Flyer released 7 e-bikes variations of this model so far. You can easily view all of the Flyer E Goroc e-bikes models from 2023, here.
Model range prices
The most economical model, the Flyer Goroc X 2.10 High 2023 has a starting price of 6051$. Flyer Goroc TR:X 8.63 HS High 2023 on the other hand is the most expensive at 11254$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11254$. Comparing this to the average Trail e-bike price, we see that the price is 234.44% more expensive.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.02 kg (50.75 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, Goroc TR:X 8.63 HS High has a weight of 30 kg (66.14 lbs). In short, the average Trail e-bike weight is 30.32% lower than this one.
Goroc TR:X 8.63 HS High components
Fork
The fork installed on this bike is the Fox AWL model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Goroc TR:X 8.63 HS High 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Flyer Goroc TR:X 8.63 HS High is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Goroc TR:X 8.63 HS High comes in 4 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Flyer model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
