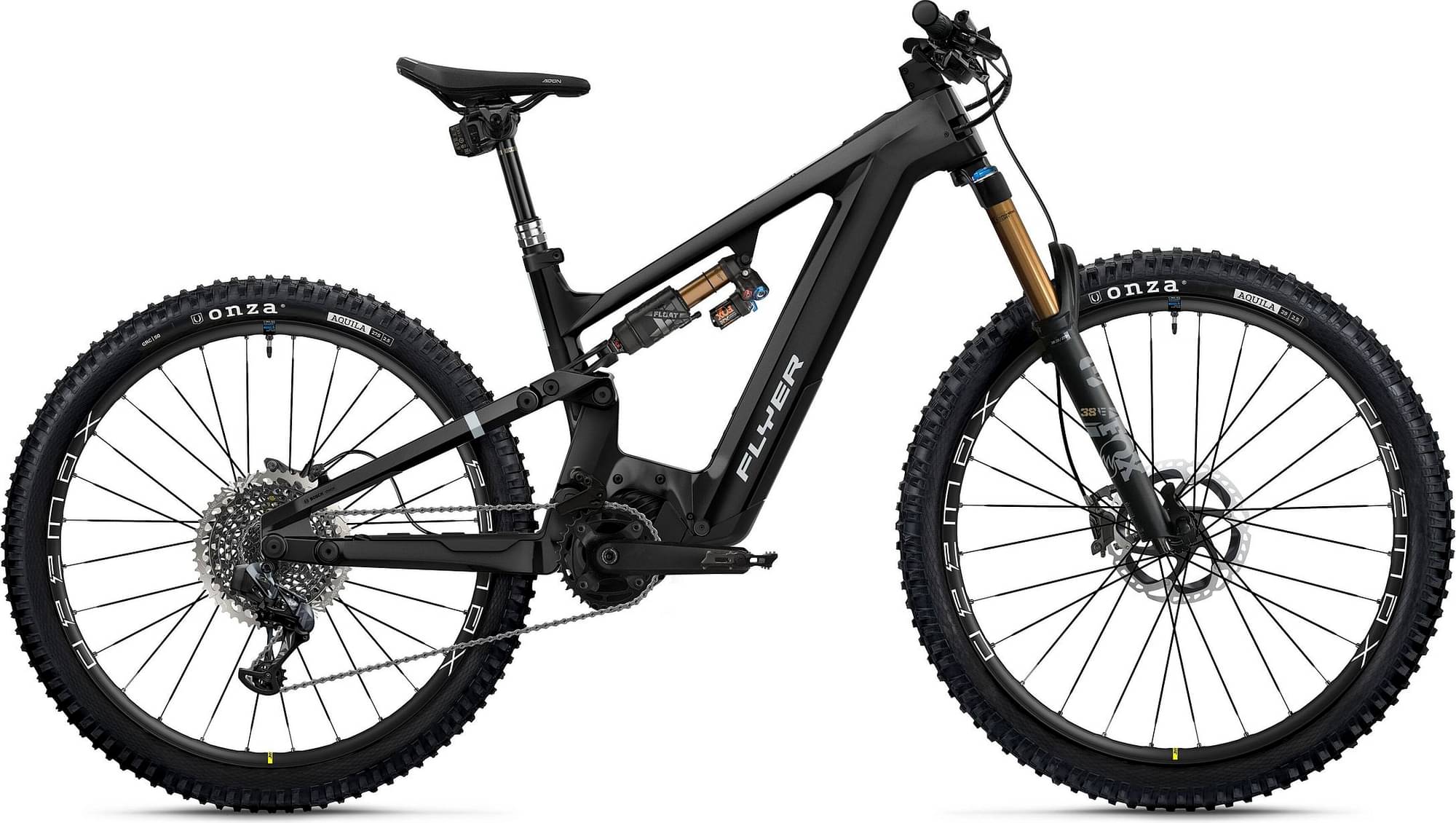

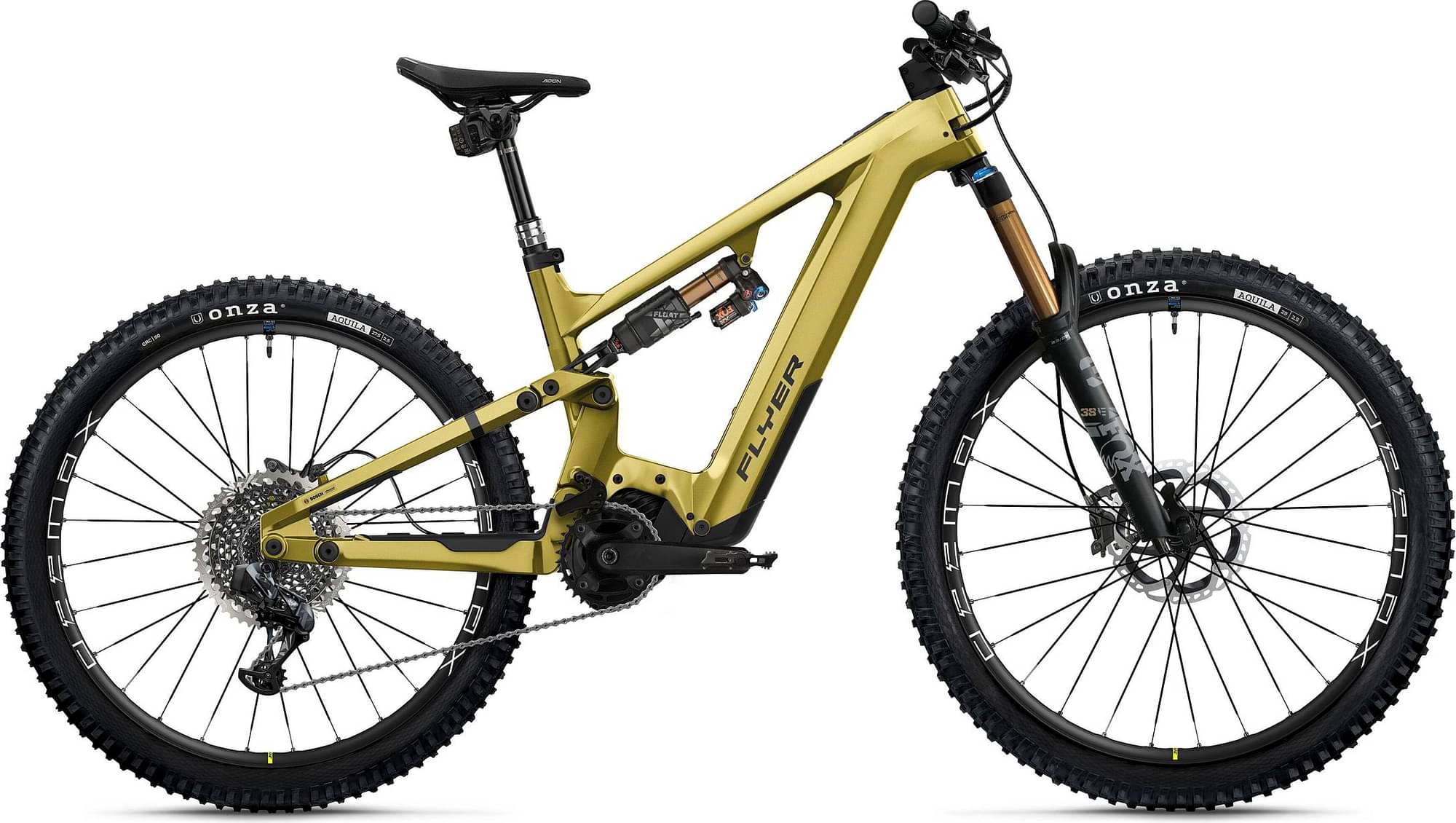

flyer Uproc EVO:X 8.70 High 2023
2023 E-bike
Estimate price |
10,321$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Float 38
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 (750 Wh / 20.1 Ah / 36V) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Carbon, 4-link suspension, 165 mm travel
Suspension Fork
Fox 38 Float Performance E-Optimized, 170 mm travel, 15 × 110 mm boos
Rear Shock
Fox Float X2 Performance, 230 x 65 mm
Drivetrain
Rear Derailleur
Shimano XT, 12 speed, 10-51t
Cassette
Shimano XT, 12 speed, 10-51t
Pedals
VP 532
Wheels
Front Hub
MAVIC E-Deemax
Rear Hub
MAVIC E-Deemax
Rims
Mavic E-Deemax, front: 30 mm / rear: 35 mm
Tires
Front: Onza Aquila GRC 29 × 2,50 (63-622) / rear: Onza Aquila GRC 27,5 × 2,50 (63-584)
Brakes
Brakes
Shimano XT BR-M8120, 203/203 mm
Cockpit
Stem
Satori Ursa, 35 x 35 mm, 0°
Handlebar
Hayes ProTaper Carbon, 810 mm, 8°, 25mm
Seat
Saddle
Fizik Aidon
Seatpost
KS LEV Integra, 125 (S) / 150 (M) / 175 (L-XL) mm adjustable travel, 34,9 mm
Motor & Battery
Motor
Bosch Smart System Performance Line CX (85 Nm)
Battery
Bosch PowerTube 750 (750 Wh / 20.1 Ah / 36V)
Charger
Bosch Standard Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 359 mm | 359 mm | 359 mm | 359 mm |
| Front Center | 771 mm | 796 mm | 825 mm | 855 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 130 mm | 130 mm | 131 mm | 130 mm |
| Stack | 614 mm | 614 mm | 623 mm | 632 mm |
| Reach | 431 mm | 456 mm | 481 mm | 506 mm |
| Top Tube Length | 576 mm | 601 mm | 628 mm | 655 mm |
| Seat Tube Angle | 76.9 ° | 76.8 ° | 76.7 ° | 76.6 ° |
| Seat Tube Length | 395 mm | 415 mm | 450 mm | 485 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1208 mm | 1233 mm | 1262 mm | 1292 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
Model Overview
Uproc EVO:X 8.70 High belongs to the Flyer E Uproc model. There are 8 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Flyer Uproc X 2.10 High 2023 is the most affordable e-bike of this model and has a price of 5308$. On the other hand, Flyer Uproc EVO:X 9.50 High 2023, is the most expensive and costs 13271$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 9555$. Comparing this to the average Enduro e-bike price, we see that the price is 99.69% more expensive.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 26 kg (57.32 lbs), Flyer e-bike is considerably heavier than average. In other words, this model is 11.02% heavier than the average Enduro e-bike.
Overview of components
Fork
This e-bike has the Fox Performance Float 38 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float X2 Performance rear shock model, which has a travel of 165mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Flyer Uproc EVO:X 8.70 High 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Flyer Uproc EVO:X 8.70 High comes with a dropper post. Therefore, climbing or descending will be a breeze.
