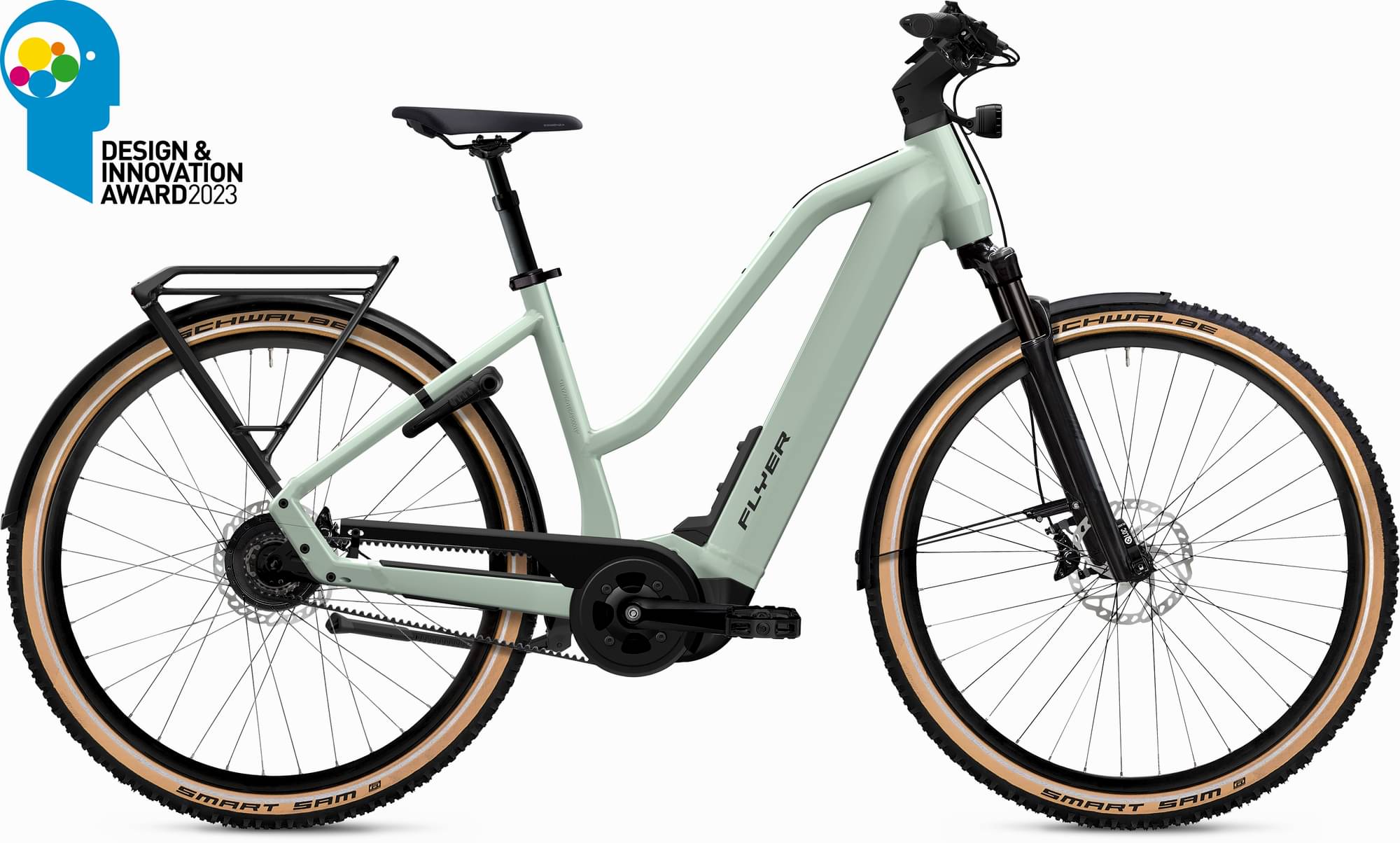

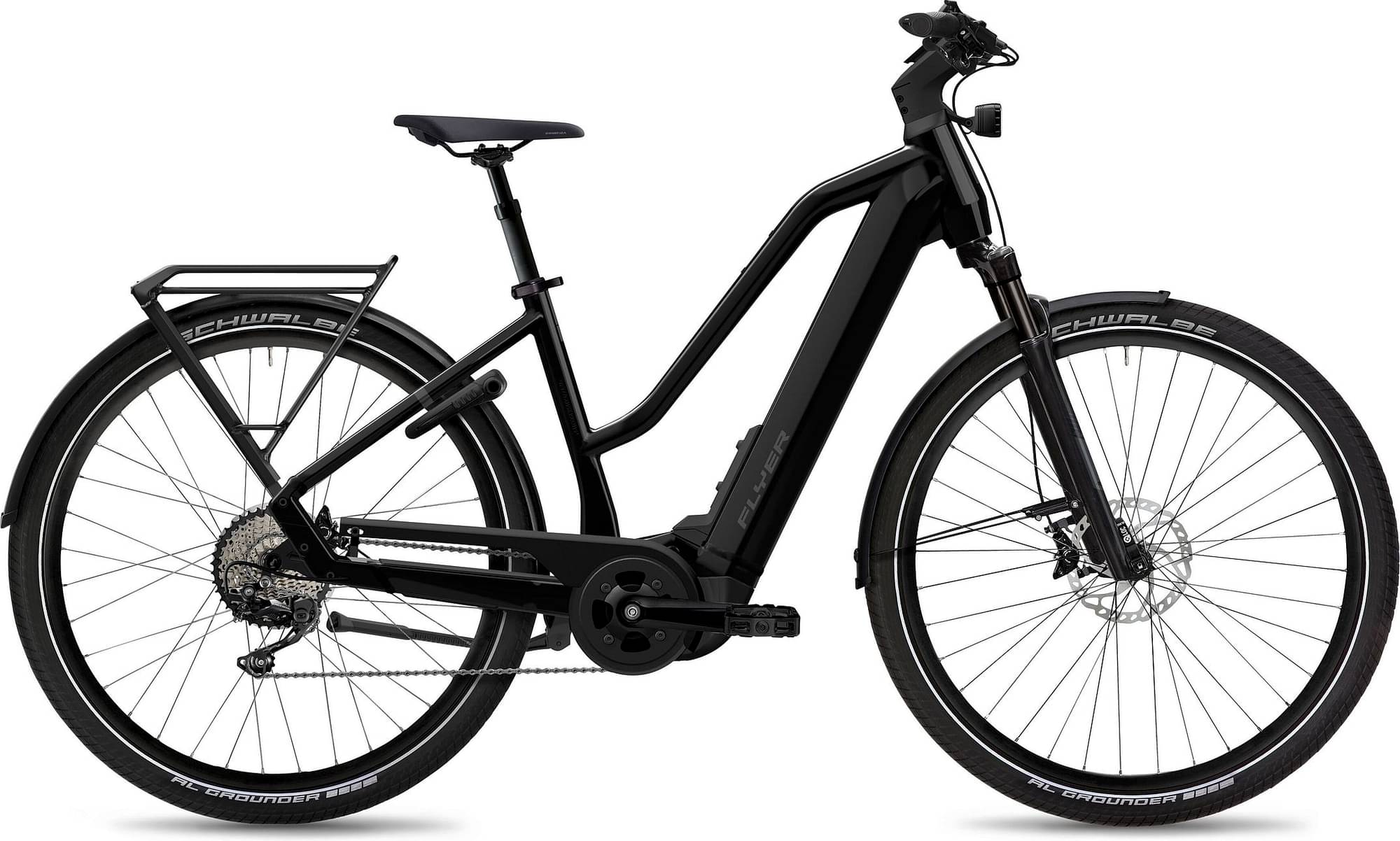

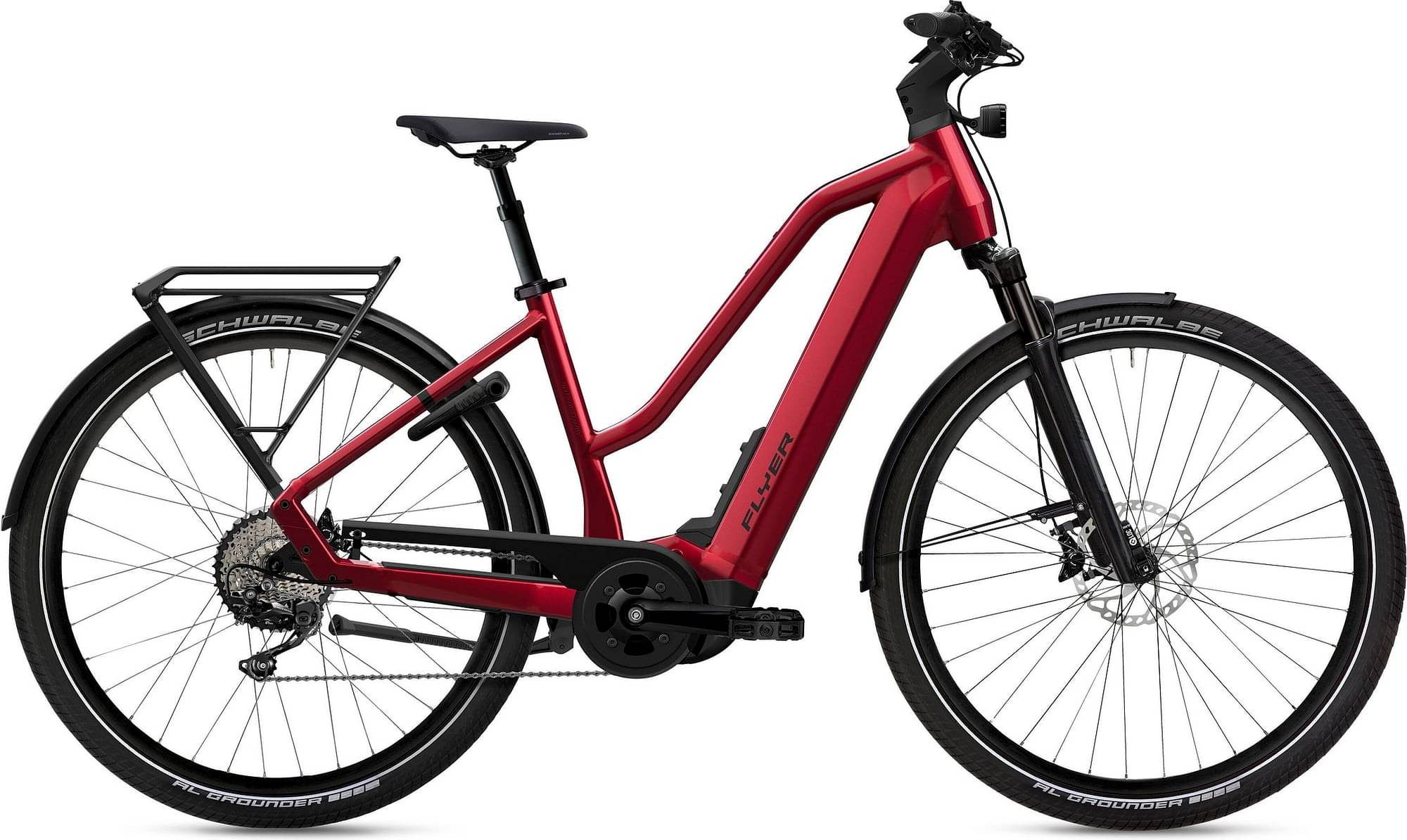

flyer Upstreet 5.40 Medium 2023
2023 E-bike
Estimate price |
5,734$
Weight | 32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Panasonic 75Nm mid-drive -
Battery FLYER FIB-630 36V FIT (630 Wh / 17.75 Ah / 36 V) -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Hydroformed Tubing
Suspension Fork
SR Suntour MobiE A32 Coil, 75 mm, 15 x 100 mm Axle
Drivetrain
Cassette
Shimano Nexus, 5 Speed
Pedals
FLYER Wellgo
Wheels
Front Hub
Shimano Alivio HB-MT400, 32h // Formula CL-71, 32h
Rear Hub
Shimano Nexus SG-C7000-5D, 32h
Rims
Alexrims MD30
Tires
Schwalbe Al Grounder 29 x 2.35 (60-622)
Brakes
Brakes
Shimano MT402, 180/180 mm
Cockpit
Stem
FLYER ONE CI Stem, 31.8 x 95 mm
Handlebar
Humpert Ergo XL, 700 mm, 16°, 30 mm
Seat
Saddle
Selle Royal Nuvola
Seatpost
FLYER Alloy, 30.9 mm x 300 (S) / 350 (M-XL) mm
Motor & Battery
Motor
Panasonic GX Force Pro FIT (75 Nm)
Battery
FLYER FIB-630 36V FIT (630 Wh / 17.75 Ah / 36 V)
Charger
FLYER Charger 4A 36V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.64 mm | 1.6 mm | 1.57 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 677 mm | 696 mm | 716 mm | 743 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 90 mm | 90 mm | 87 mm | 88 mm |
| Stack | 664 mm | 664 mm | 681 mm | 700 |
| Reach | 386 mm | 406 mm | 426 mm | 446 mm |
| Top Tube Length | 590 mm | 610 mm | 635 mm | 661 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 69 ° | 69 ° |
| Head Tube Length | 165 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm | 498 mm |
| Wheelbase | 1166 mm | 1186 mm | 1206 mm | 1233 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
About this model
Upstreet 5.40 Medium completes the Flyer E Upstreet model. Flyer launched 30 e-bikes of this model so far. Take a sneak peek at all Flyer E Upstreet e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Flyer Upstreet SL 3.12 XC Medium 2023 has a starting price of 4246$. Flyer Upstreet 7.23 HS High 2023 on the other hand is the most expensive at 7113$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 5308$. In conclusion, this e-bike price is 106.62% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 32 kg (70.55 lbs), Flyer e-bike is much heavier than average. In short, the average Commuter e-bike weight is 26.98% lower than this one.
Overview of components
Fork
Flyer Upstreet 5.40 Medium 2023 e-bike is equipped with the Suntour MOBIE fork, and has 75mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Upstreet 5.40 Medium model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Flyer Upstreet 5.40 Medium has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
