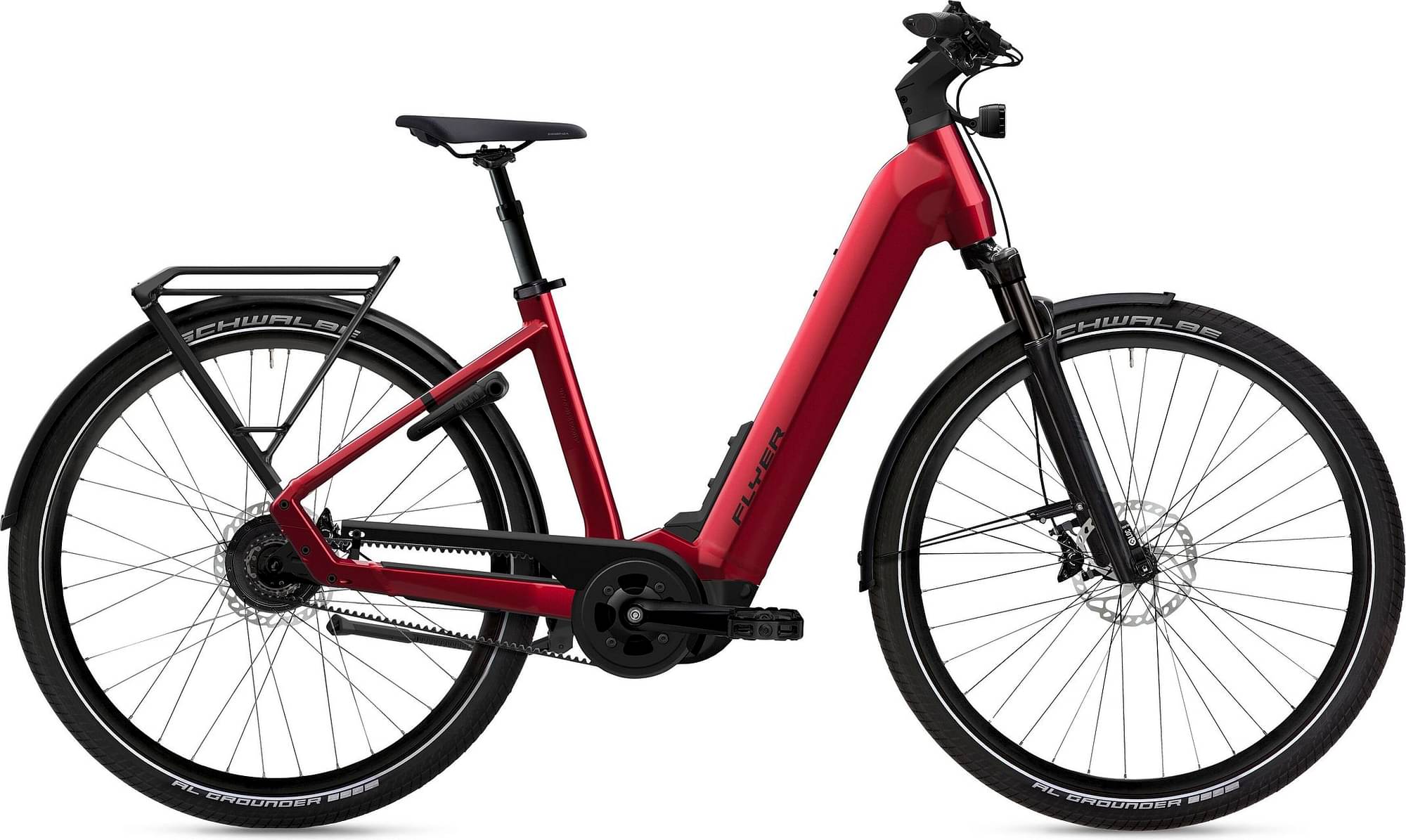

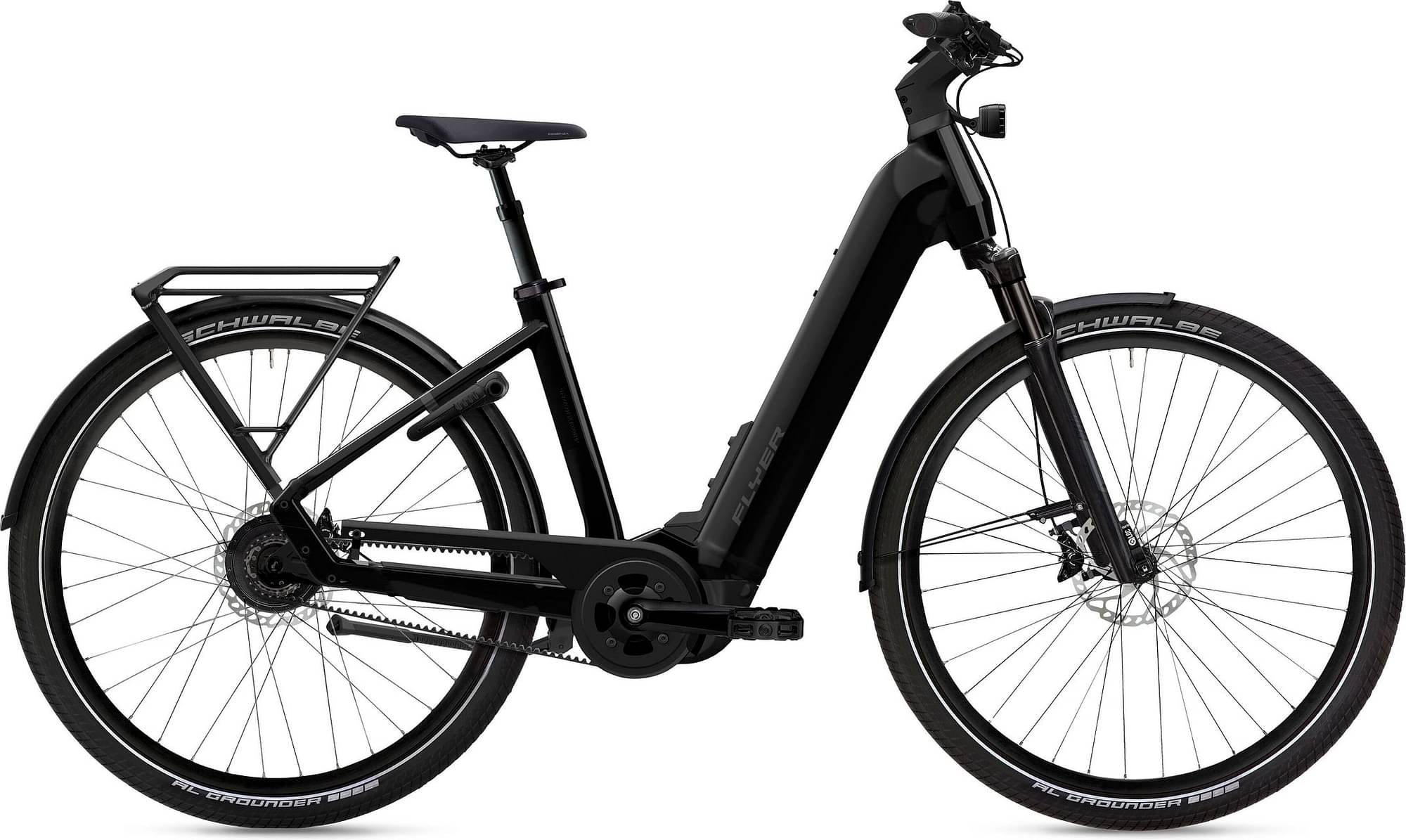

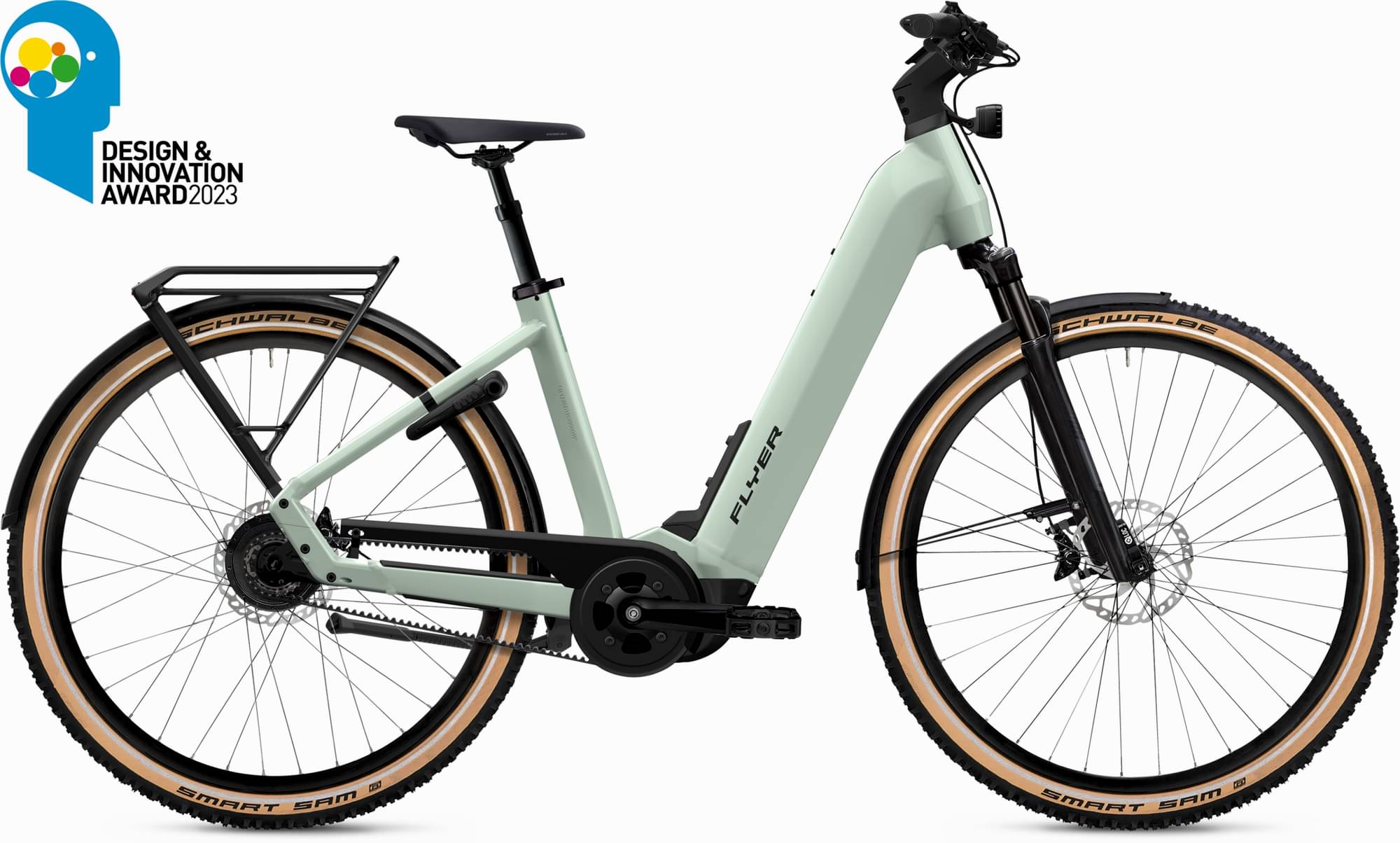

flyer Upstreet 7.23 Low 2023
2023 E-bike
Estimate price |
6,536$
Weight | 32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery FLYER FIB-630 36V FIT (630 Wh / 17.75 Ah / 36 V) (S) / FIB-750 (750 Wh / 20.1 Ah / 36 V) (M-XL); Range Extender ready -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Hydroformed Tubing
Suspension Fork
SR Suntour Mobie25 Coil, 75 mm travel, 15 x 100 mm Axle
Drivetrain
Cassette
Enviolo TR Mech; Gates Carbon Drive CDX
Pedals
FLYER Wellgo
Wheels
Front Hub
Shimano Alivio HB-MT400, 32h
Rear Hub
Enviolo TR CVP, 32h
Rims
Alexrims MD30
Tires
Schwalbe Al Grounder 29 x 2.35 (60-622)
Brakes
Brakes
Shimano MT402, 180/180 mm
Cockpit
Stem
FLYER ONE CI Stem, 31.8 x 95 mm
Handlebar
Humpert Ergo XL, 700 mm, 16°, 30 mm
Seat
Saddle
Selle Royal Essenza+ Moderate Eco
Seatpost
Satori Xopic2 Suspension, 31.6 x 300 (S) / 350 (M) / 400 (L-XL)
Motor & Battery
Motor
Panasonic GX Ultimate Pro FIT (95 Nm)
Battery
FLYER FIB-630 36V FIT (630 Wh / 17.75 Ah / 36 V) (S) / FIB-750 (750 Wh / 20.1 Ah / 36 V) (M-XL); Range Extender ready
Charger
FIT Fast Charger 36V 6A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.64 mm | 1.6 mm | 1.57 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 677 mm | 696 mm | 716 mm | 743 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 90 mm | 90 mm | 87 mm | 88 mm |
| Stack | 664 mm | 664 mm | 681 mm | 700 |
| Reach | 386 mm | 406 mm | 426 mm | 446 mm |
| Top Tube Length | 590 mm | 610 mm | 635 mm | 661 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 69 ° | 69 ° |
| Head Tube Length | 165 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm | 498 mm |
| Wheelbase | 1166 mm | 1186 mm | 1206 mm | 1233 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
Model Overview
Upstreet 7.23 Low completes the Flyer E Upstreet model. There are 30 e-bikes that carry this model name. Take a sneak peek at all Flyer E Upstreet e-bikes models from 2023, by clicking here.
Model range prices
Flyer Upstreet SL 3.12 XC Medium 2023 is the most affordable e-bike of this model and has a price of 4246$. On the other hand, Flyer Upstreet 7.23 HS High 2023, is the most expensive and costs 7113$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 6051$. If we compare this with the average Commuter e-bike cost we notice that the price is 135.54% higher.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Upstreet 7.23 Low weighs 32 kg (70.55 lbs) and is much heavier than the average. To sum up, it’s 26.98% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
The Upstreet 7.23 Low comes factory-installed with the Suntour MOBIE fork. This has a travel range of 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Flyer Upstreet 7.23 Low 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Upstreet 7.23 Low has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Upstreet 7.23 Low comes in 4 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, you can easily find one that suits you.
